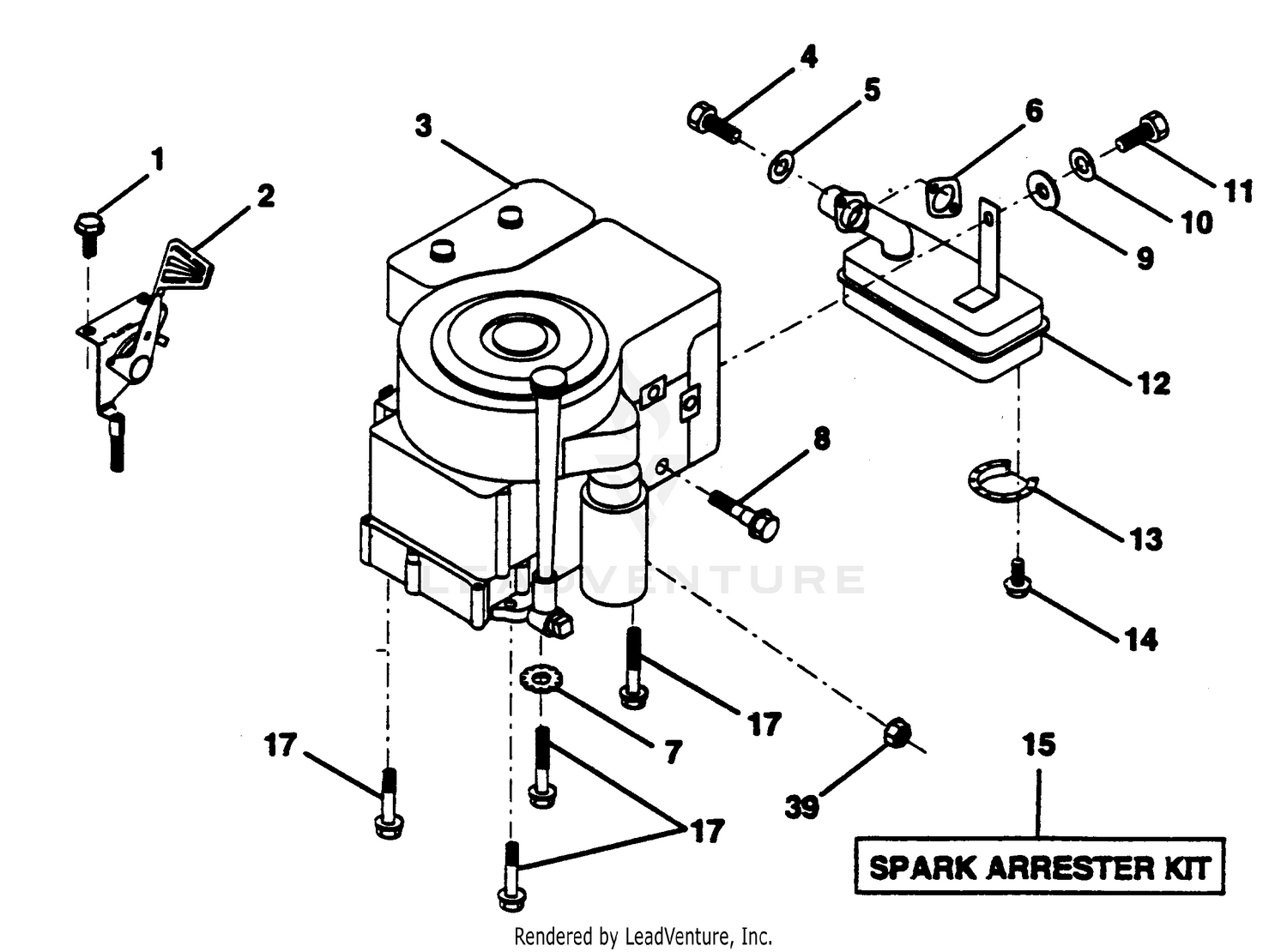

| Ref | Part Number | Description |
|---|
| 1 |
817060408 |
Screw, Hex Thd. Cut 1/4-20 x 1/2 Price: $3.99 |
| 2 |
532132752 |
Control, Throttle Price: $17.99 |
| 3 |
532146380 |
Engine, Briggs and Stratton Model Price: Call Us |
| 4 |
532192334 |
Screw Socket Hd 5/16-18 x .75 This part replaces 871070512. Price: $2.99 |
| 5 |
810040500 |
Washer, Lock Heavy Helical Spring 5/16 Price: $2.99 |
| 6 |
532272293 |
Gasket Eng 1 313 Id Tin Plated This part replaces 532125593. Price: $7.99 |
| 7 |
539990118 |
WASHER.3/8 This part replaces 811050600. Price: $1.49 |
| 8 |
532121094 |
Bolt, Shoulder 5/16 Price: $2.99 |
| 9 |
734115201 |
WASHER - M6 This part replaces 819101216. Price: $1.99 |
| 10 |
810040400 |
Washer, Lock Hvy Hlcl Spring 1/4 Price: $3.99 |
| 12 |
532137437 |
Muffler Price: $173.99 |
| 13 |
532101326 |
Deflector, Muffler Price: $4.01 |
| 14 |
532161464 |
Screw Hex WSHD 8-18 x 7/8 This part replaces 817030808. Price: $3.99 |
| 15 |
532137180 |
Arrester, Spark (Optional equipment) Price: $128.99 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $3.99 |
