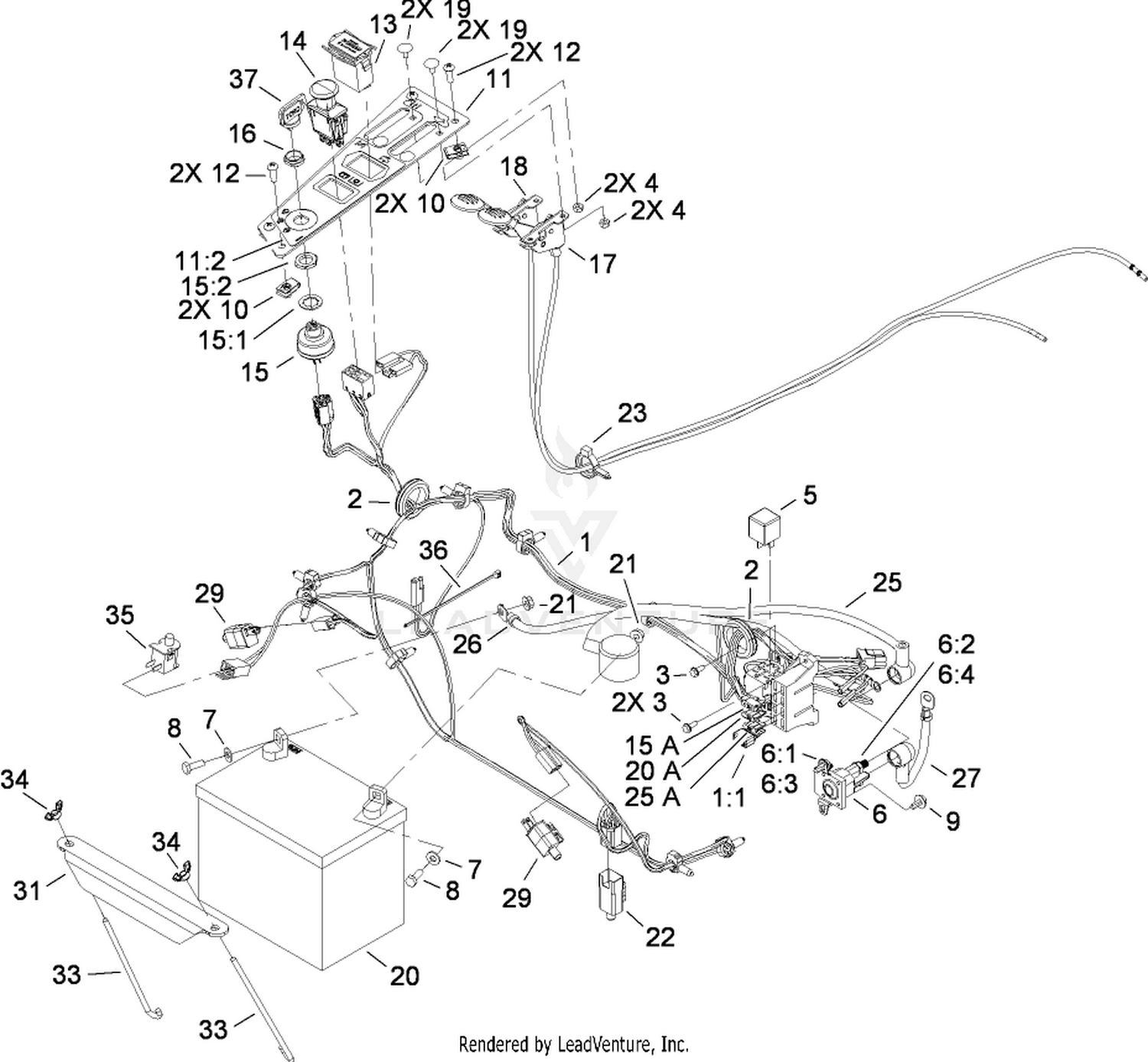

| Ref | Part Number | Description |
|---|
| 1 |
109-8786 |
HARNESS-WIRE Price: $286.66 |
| 2 |
240-3 |
GROMMET-RUBBER Price: $17.44 |
| 3 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 4 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 5 |
1-643275 |
RELAY Price: $15.06 |
| 6 |
117-1197 |
SOLENOID This part replaces 1-513075. Price: $30.64 |
| 7 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 8 |
321-4 |
SCREW-HH Price: $0.99 |
| 9 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 10 |
107069 |
CLIP Price: $1.79 |
| 11 |
109-6398 |
CONTROL PANEL ASM Price: $39.46 |
| 12 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 13 |
120-2244 |
HOURMETER This part replaces 1-513374. Price: $48.06 |
| 14 |
103-5221 |
SWITCH-PTO Price: $36.77 |
| 15 |
109-4736 |
ASM,SWITCH W/NUT This part replaces 103-0206. Price: $32.82 |
| 16 |
103-0498 |
NUT-SWITCH, IGNITION Price: $1.27 |
| 17 |
109-3987 |
CONTROL-THROTTLE Price: $26.08 |
| 18 |
109-9147 |
CONTROL-CHOKE Price: $27.87 |
| 19 |
1-807513 |
BOLT-CARR Price: $1.14 |
| 20 |
104-8162 |
BATTERY-DRY This part replaces 104-2491. Price: $114.99 |
| 21 |
32128-33 |
NUT-HF Price: $0.25 |
| 22 |
99-7408 |
SWITCH-REVERSE Price: $27.06 |
| 23 |
105-1853 |
CLAMP-HOSE Price: $3.49 |
| 25 |
109-7653 |
POSITIVE BATTERY CABLE ASM Price: $22.68 |
| 26 |
103-0705 |
CABLE-GROUND, NEGATIVE Price: $12.02 |
| 27 |
109-9415 |
POSITIVE STARTER CABLE ASM Price: $17.31 |
| 29 |
110-6765 |
SWITCH Price: $12.99 |
| 31 |
103-1311-03 |
HOLDDOWN-BATTERY Price: $17.80 |
| 33 |
1-633651 |
BOLT-HOLDDOWN Price: $7.29 |
| 34 |
1-543792 |
WINGNUT Price: $5.69 |
| 35 |
82-2190 |
SWITCH-BAIL Price: $13.99 |
| 36 |
1-303287 |
TIE-CABLE Price: $0.69 |
