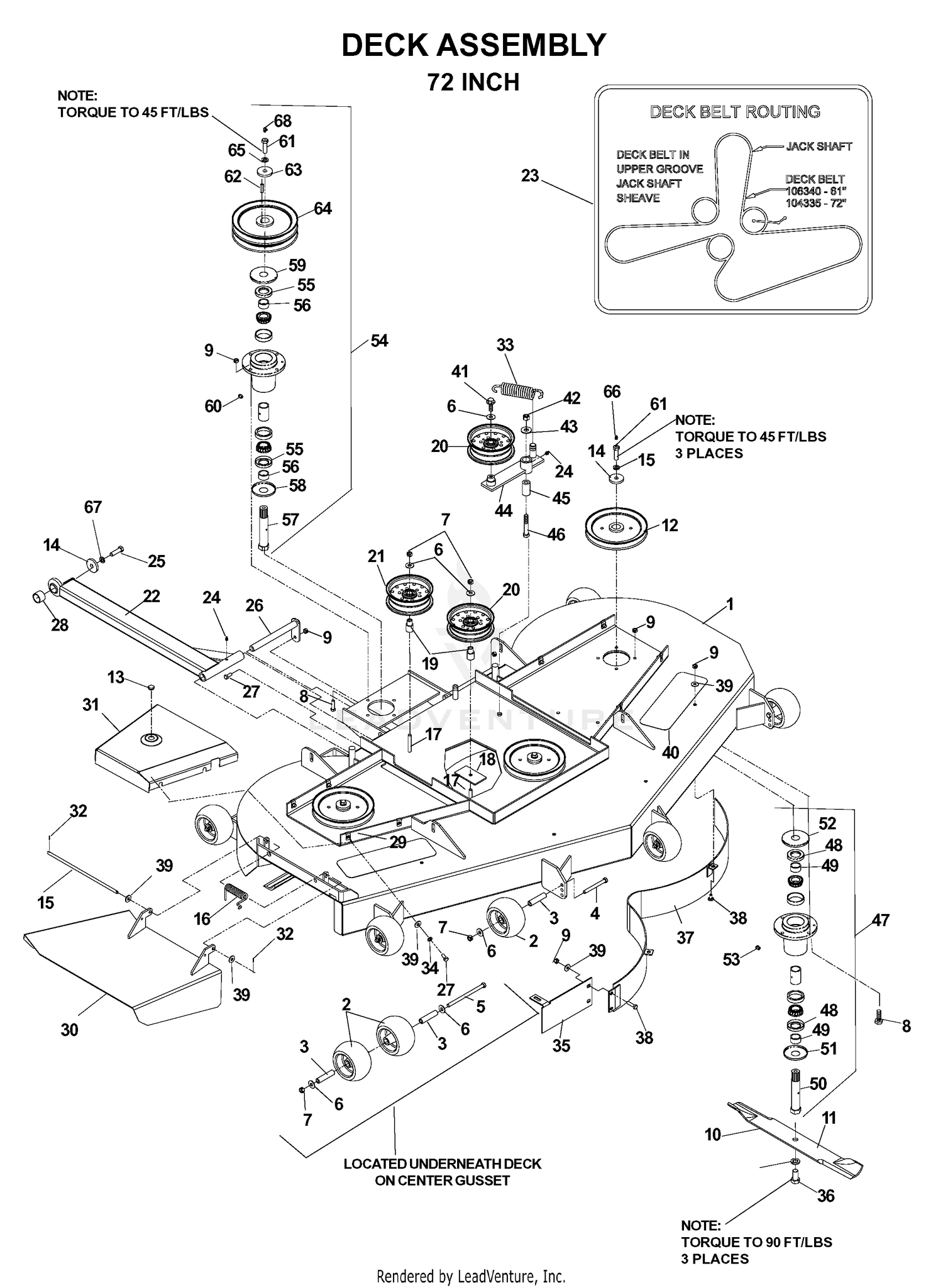

| Ref | Part Number | Description |
|---|
| 1 |
539106218 |
DECK W/DECALS 72" HUS Price: $999.99 |
| 2 |
539102643 |
ANTI-SCALP ROLLER Price: $8.99 |
| 3 |
539102698 |
BUSHING Price: $29.99 |
| 4 |
539102754 |
HCS 3/8C X 3 1/2 Price: $3.99 |
| 5 |
539105422 |
BOLT 3/8 X 6" GRD 8 Price: $3.99 |
| 6 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 7 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 8 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 9 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 10 |
539105476 |
BLADE OEM - 25" Price: $34.99 |
| 11 |
539105634 |
BELLEVILLE SPRING WASHER Price: $3.99 |
| 12 |
539112126 |
PULLEY, 72 This part replaces 539107279. Price: $44.99 |
| 13 |
539108382 |
PLUG, BUTTON HOLE Price: $0.99 |
| 14 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 15 |
539108318 |
PIN 5/16 X 11-1/2 PIVOT SPEC Price: $7.99 |
| 16 |
539105822 |
SPRING, TORTION Price: $16.99 |
| 17 |
596434201 |
Bolts This part replaces 539990637. Price: $3.99 |
| 18 |
596770301 |
Washers This part replaces 539103303. Price: $4.99 |
| 19 |
539103295 |
IDLER BUSHING Price: $12.99 |
| 20 |
539103257 |
IDLER PULLEY Price: $49.99 |
| 21 |
539103258 |
IDLER PULLEY (TALL) Price: $44.99 |
| 22 |
539107750 |
STRUT WELDMT - R.H Price: $109.99 |
| 23 |
522795901 |
BELT, DECK This part replaces 539104335. Price: $79.99 |
| 24 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 25 |
539100141 |
HCS 7/16F X 1 1/2 Price: $7.99 |
| 26 |
539105480 |
PIN WELDMENT Price: $32.99 |
| 27 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 28 |
539106401 |
SPACER, STRUT Price: $9.99 |
| 29 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 30 |
539108270 |
DISCHARGE CHUTE Price: $93.99 |
| 31 |
539108933 |
RT 72 SHIELD CE ORANGE Price: $37.99 |
| 32 |
539990042 |
COTTER PIN Price: $2.99 |
| 33 |
539105192 |
DECK SPRING Price: $13.99 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 36 |
539105633 |
HEX SCREW-5/8F X 2 GR8 Price: $2.99 |
| 37 |
539105614 |
BAFFLE/CENTER-CURVED Price: $129.99 |
| 38 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99 |
| 39 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 40 |
539977778 |
ANTI-SKID PAD Price: $3.99 |
| 41 |
596583101 |
Screws This part replaces 539990582. Price: $3.99 |
| 42 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 43 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 44 |
539103230 |
IDLER ARM Price: $159.99 |
| 45 |
539103427 |
PIVOT BUSHING Price: $7.99 |
| 46 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 47 |
966956201 |
KIT, HSG ASM 72 This part replaces 539108774. Price: $528.99 |
| 48 |
539108754 |
SHAFT SEAL Price: $6.99 |
| 49 |
539108758 |
SPACER Price: $1.55 |
| 50 |
539112123 |
SPINDLE 72 NLA-ORDER HOUSING This part replaces 539108761. Price: $26.18 |
| 51 |
539108449 |
BOTTOM DUST CAP Price: $3.99 |
| 52 |
539108450 |
TOP DUST CAP Price: $4.99 |
| 53 |
539977326 |
PLUG-VENTED Price: $8.99 |
| 54 |
539112263 |
BAM L44 JACKSHAFT ASM LOWER This part replaces 539108768. Price: $649.99 |
| 55 |
539108754 |
SHAFT SEAL Price: $6.99 |
| 56 |
539108758 |
SPACER Price: $1.55 |
| 57 |
539108767 |
JACKSHAFT SPINDLE Price: $84.99 |
| 58 |
539108449 |
BOTTOM DUST CAP Price: $3.99 |
| 59 |
539108450 |
TOP DUST CAP Price: $4.99 |
| 60 |
539977326 |
PLUG-VENTED Price: $8.99 |
| 61 |
594944601 |
Bolts This part replaces 539101175. Price: $2.99 |
| 62 |
539101995 |
KEY 1/4 SQ X 1 1/8 Price: $2.99 |
| 63 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 64 |
539106346 |
SHEAVE WSL Price: $93.99 |
| 65 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 66 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 67 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 68 |
539912758 |
ZERK Price: $3.99 |
