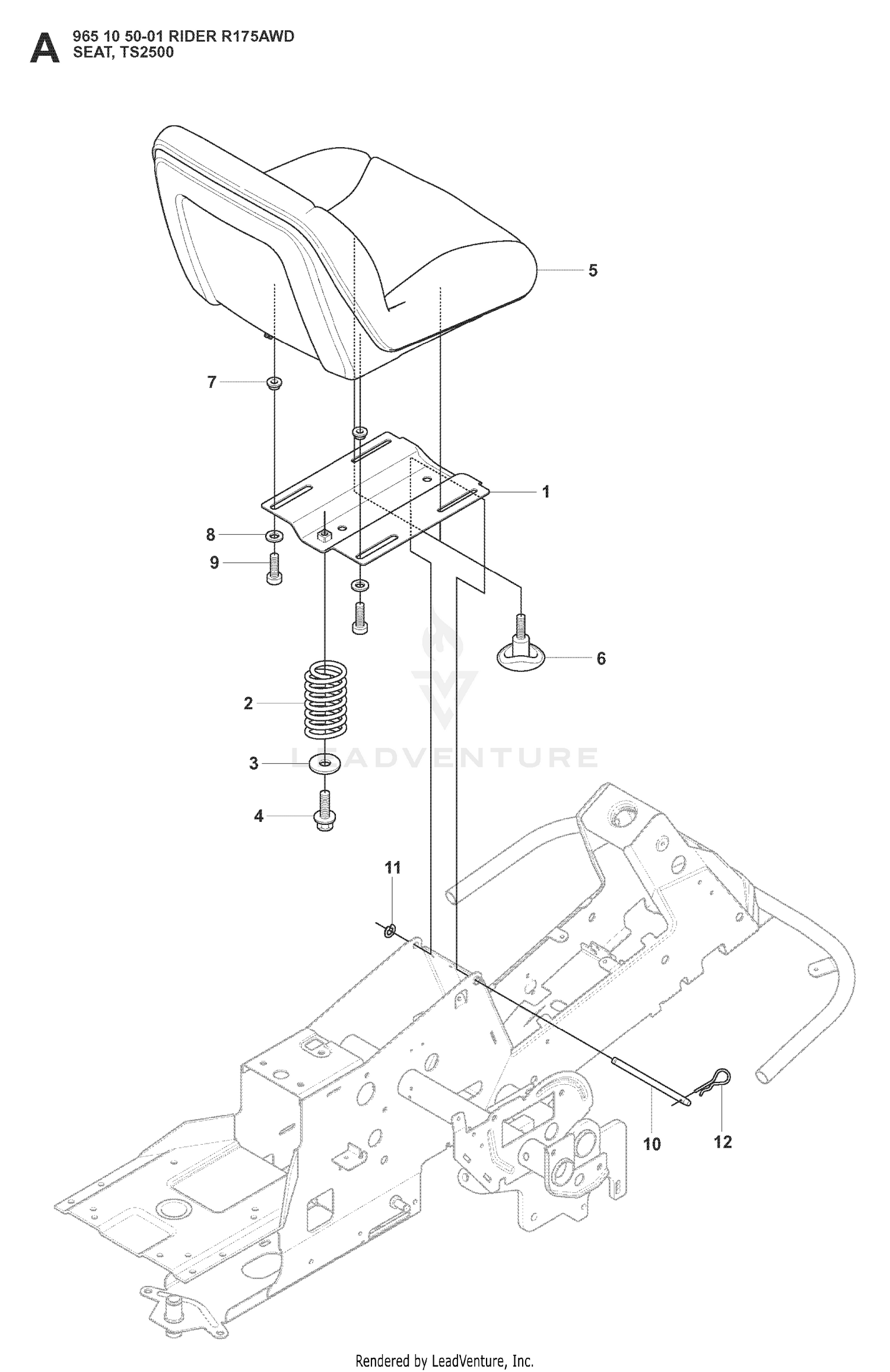

SEAT
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544328503 | SEAT BRACKET Price: $59.99 |
| 2 | 110-8262 | GAUGE-FUEL Price: $109.71 |
| 2 | 506915301 | SEAT SPRING Price: $17.99 |
| 3 | 734117441 | WASHER Price: $3.99 |
| 3 | 95-8972 | GROMMET Price: $10.92 |
| 4 | 2412-36 | CLAMP-HOSE Price: $1.28 |
| 4 | 725249371 | Screw M10x25 Price: $1.82 |
| 5 | 46-6560 | BUSHING Price: $2.94 |
| 5 | 587605301 | SEAT ASSY KIT LOW HVA This part replaces 544433301. Price: $179.99 |
| 6 | 46-6550 | FITTING-ELBOW, 90 DEG This part replaces 1-643259. Price: $37.39 |
| 7 | 506565301 | WASHER Price: $4.99 |
| 8 | 734116441 | SPACER Price: $3.99 |
| 9 | 506556301 | BOLT Price: $3.99 |
| 10 | 506509901 | Shaft Price: $6.08 |
| 11 | 735311200 | RETAINING RING SGA 10 Price: $2.99 |
| 12 | 506668801 | PIN Price: $3.99 |
