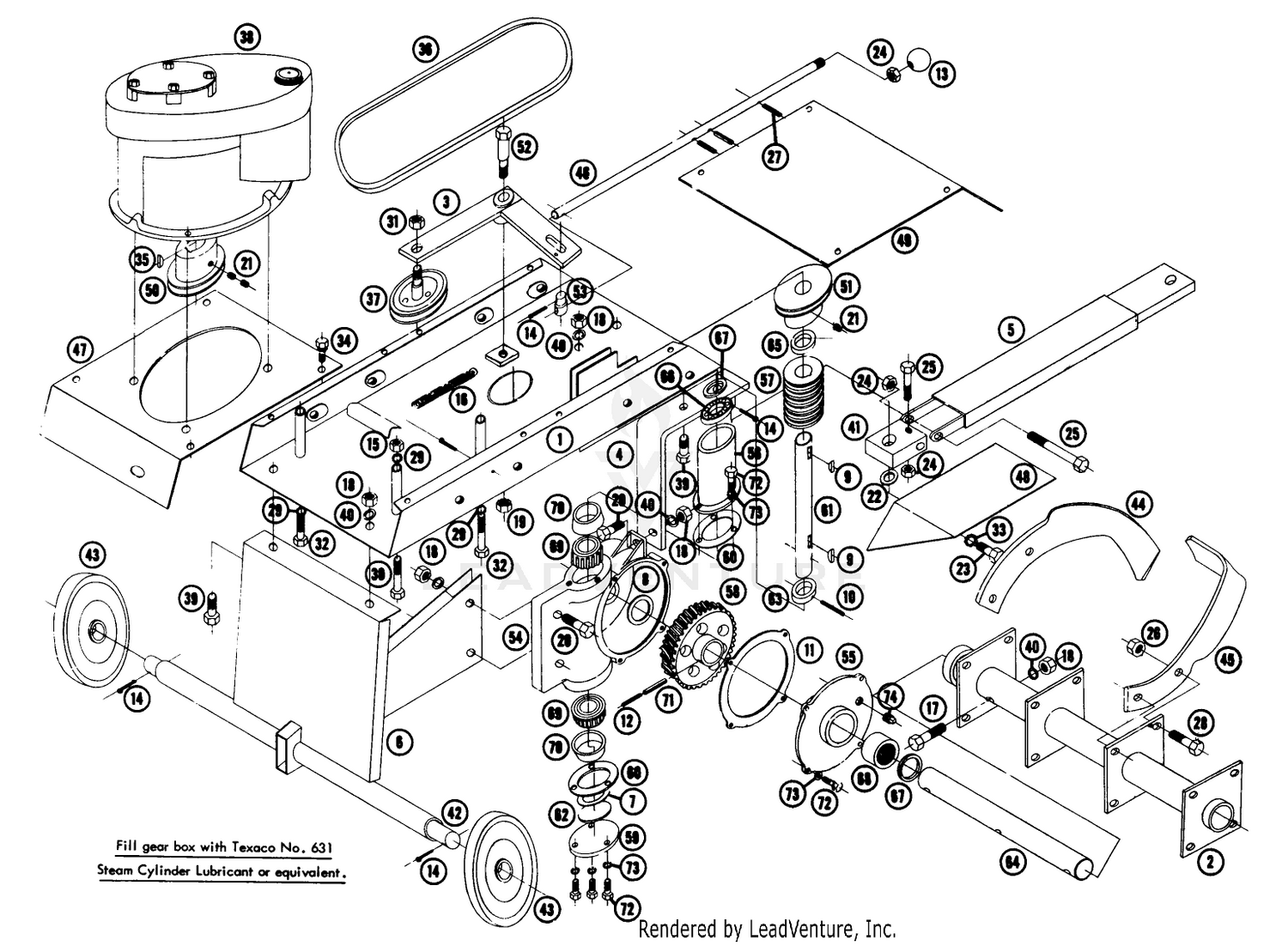

| Ref | Part Number | Description |
|---|
| 1 |
4300 |
Deck W/A Price: Call Us |
| 2 |
4322 |
Tine Tube W/A Price: Call Us |
| 3 |
4316 |
Clutch Arm W/A Price: Call Us |
| 4 |
4313 |
Mounting Bar W/A Price: Call Us |
| 5 |
4310 |
Hitch Bar W/A Price: Call Us |
| 6 |
HY4326 |
BLOCK AXLE SUPPORT This part replaces 4326. Price: $7.70 |
| 7 |
1396 |
Shim Price: Call Us |
| 8 |
1397 |
Shim Price: Call Us |
| 9 |
3257-5 |
KEY-WOODRUFF This part replaces 1122. Price: $5.13 |
| 10 |
1244 |
Roll Pin Price: Call Us |
| 11 |
4038 |
Gasket Price: Call Us |
| 12 |
1227 |
RoIl Pin Price: Call Us |
| 13 |
1001 |
DUP PART SEE $BOOK Price: Call Us |
| 14 |
1002 |
Cotter Key Price: Call Us |
| 15 |
1007 |
Hex Nut Price: Call Us |
| 16 |
1014 |
DUP PART SEE $BOOK Price: Call Us |
| 17 |
1015 |
Hex Hd. Cap Screw 3/8-16 x 1 3/4 Price: Call Us |
| 18 |
1310 |
Lock Nut 3/8-16 Price: Call Us |
| 19 |
1359 |
Hex Nut-Self Locking 3/8-16 Price: Call Us |
| 20 |
1028 |
Hex Head Cap Price: Call Us |
| 21 |
1042 |
Snap Ring Price: Call Us |
| 22 |
1038 |
Washer 5/8 I.D. Price: Call Us |
| 23 |
1061 |
Hex Head Cap Price: Call Us |
| 25 |
1093 |
Cap Screw, 3/8 x 2 1/2 Price: Call Us |
| 26 |
1317 |
Hex Nut 7/16-14 Lock Nut Price: Call Us |
| 27 |
32121-93 |
PIN-SPIRAL This part replaces 1133. Price: $3.42 |
| 28 |
1149 |
H.H.C.S. 7/16-14 x 1 1/4 Lg. Price: Call Us |
| 29 |
1196 |
Lock Washer 5/16 Price: Call Us |
| 30 |
1258 |
H.H.C.S. 5/16-18 x 3 3/4 Price: Call Us |
| 31 |
3220-5 |
NUT-JAM This part replaces 1302. Price: $0.65 |
| 32 |
1305 |
H.H.C.S. 5/16-18 x 3 Price: Call Us |
| 33 |
1332 |
Shakeproof Washer 3/8 Price: Call Us |
| 34 |
1385 |
DISCONTINUED Price: Call Us |
| 35 |
1395 |
Woooruff Key #6 Price: Call Us |
| 36 |
1554 |
DISCONTINUED This part replaces 1579. Price: Call Us |
| 37 |
1618 |
DISCONTINUED Price: Call Us |
| 38 |
1797 |
Engine Price: Call Us |
| 39 |
1062 |
Hex Head Cap Price: Call Us |
| 40 |
1039 |
Lockwasher Price: Call Us |
| 41 |
4320 |
Swivel Block Price: Call Us |
| 42 |
4328 |
See Supercession: 4743 Price: Call Us |
| 43 |
4337 |
DUP PART SEE $BOOK Price: Call Us |
| 44 |
4330 |
Tine R.H. Price: Call Us |
| 45 |
4331 |
Tine L.H. Price: Call Us |
| 46 |
4332 |
Oil Seal Price: Call Us |
| 47 |
HY5645 |
GEARBOX This part replaces 4333. Price: $144.82 |
| 48 |
4334 |
Cover-Tine Price: Call Us |
| 49 |
HY4308 |
HANDLE HEIGHT ADJUSTER This part replaces 4308. Price: $62.34 |
| 50 |
1626 |
Engine Pulley Price: Call Us |
| 51 |
1627 |
Pulley Price: Call Us |
| 52 |
1392 |
Bolt-Shoulder Price: Call Us |
| 53 |
1393 |
Stud Price: Call Us |
| 54 |
40C0 |
Case-Tiller (Cast Iron) Price: Call Us |
| 55 |
4001 |
Cover Price: Call Us |
| 56 |
4002 |
Support Price: Call Us |
| 57 |
4003 |
Worm Gear Price: Call Us |
| 58 |
4004 |
Worm Price: Call Us |
| 59 |
4005 |
Plate Price: Call Us |
| 60 |
4039 |
Gasket Price: Call Us |
| 61 |
4040 |
Worm Shaft Price: Call Us |
| 62 |
4041 |
Disc Price: Call Us |
| 63 |
4063 |
Spacer Price: Call Us |
| 64 |
4032 |
Shaft-Tine Price: Call Us |
| 65 |
4064 |
USE 703269 Price: Call Us |
| 66 |
101480 |
BEARING-BALL This part replaces 1515. Price: $36.10 |
| 67 |
100443 |
SEAL-OIL This part replaces 1213. Price: $7.85 |
| 68 |
1526 |
DUP PART SEE $BOOK Price: Call Us |
| 69 |
1500 |
Cone-Bearing Price: Call Us |
| 70 |
1525 |
DISCONTINUED Price: Call Us |
| 71 |
1299 |
Roll Pin 5/16 x 1 3/4 Price: Call Us |
| 72 |
1237 |
H.H.C.S. 1/4-20 x 5/8 Price: Call Us |
| 73 |
1113 |
Lockwasher 1/4 Price: Call Us |
