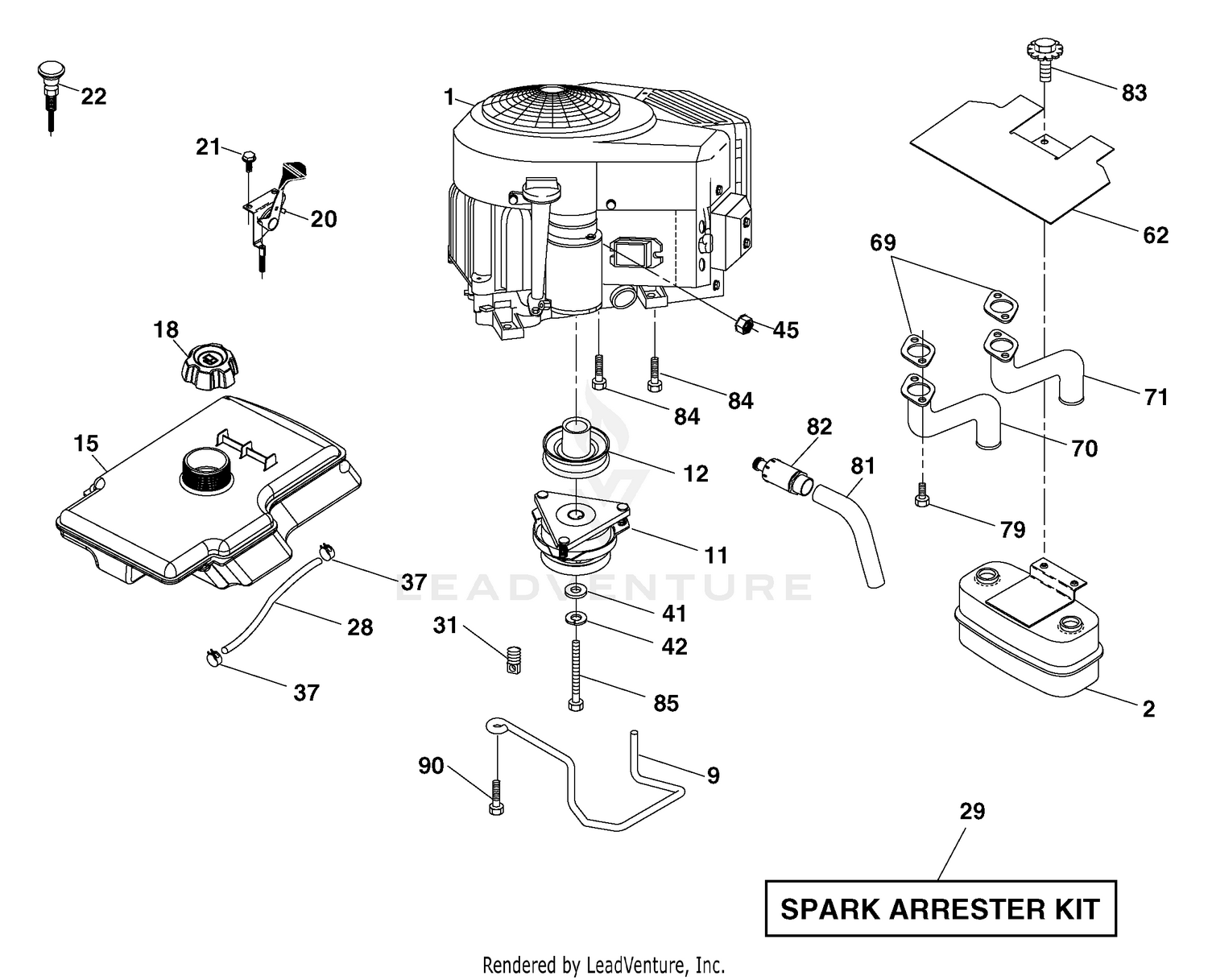

| Ref | Part Number | Description |
|---|
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 6 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 7 |
92-7807-01 |
REAR AXLE PIN ASM This part replaces 92-7807. Price: $151.97 |
| 8 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
92-7803-01 |
AXLE SUPPORT ASM This part replaces 92-7803. Price: $958.49 |
| 10 |
32128-23 |
NUT-HF Price: $1.51 |
| 11 |
583389701 |
KIT.SVC.CLUTCH.ELE.180505 This part replaces 532180505. Price: $299.99 |
| 11 |
98-3869-01 |
WEIGHT-REAR This part replaces 67-8960. Price: $461.69 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 14 |
32146-20 |
NUT-HEX Price: $3.23 |
| 15 |
532194264 |
TANK.ASM.FUEL.REAR.W/CAP.2.5 This part replaces 532197024. Price: $89.99 |
| 15 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 16 |
99-2413-01 |
COVER-GUARD, FLYWHEEL This part replaces 93-7042. Price: $22.07 |
| 17 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 18 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 18 |
584248701 |
CAP.ASSY.FUEL.3".N-EPA.BLK.428 This part replaces 532195951. Price: $14.99 |
| 19 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 20 |
237-22 |
O-RING Price: $2.43 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 21 |
71-4430 |
REAR STEERING HOSE Price: $104.39 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 22 |
68-9710 |
HOSE-STEERING, REAR Price: $98.31 |
| 23 |
106-6774 |
JOINT-BALL This part replaces 92-5838. Price: $79.04 |
| 24 |
2412-39 |
CLAMP-R Price: $1.70 |
| 25 |
32128-21 |
NUT-HF Price: $0.39 |
| 26 |
92-7810-03 |
CROSS MEMBER ASM This part replaces 92-7810. Price: $432.77 |
| 27 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 28 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
340-54 |
ELBOW-45 DEG Price: $40.72 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
237-78 |
O-RING Price: $3.85 |
| 31 |
3220-6 |
NUT-JAM Price: $1.25 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 32 |
92-7829 |
DISCONTINUED Price: Call Us |
| 33 |
92-7839 |
SLEEVE - PROTECTIVE Price: $39.83 |
| 34 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 35 |
5-1226 |
WASHER Price: $3.90 |
| 36 |
56-2460 |
WASHER-FLAT Price: $3.32 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
92-7840 |
SLEEVE - PROTECTIVE Price: $39.83 |
| 38 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 39 |
32151-104 |
RING-RETAINING, EXTERNAL Price: $4.85 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 83 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
