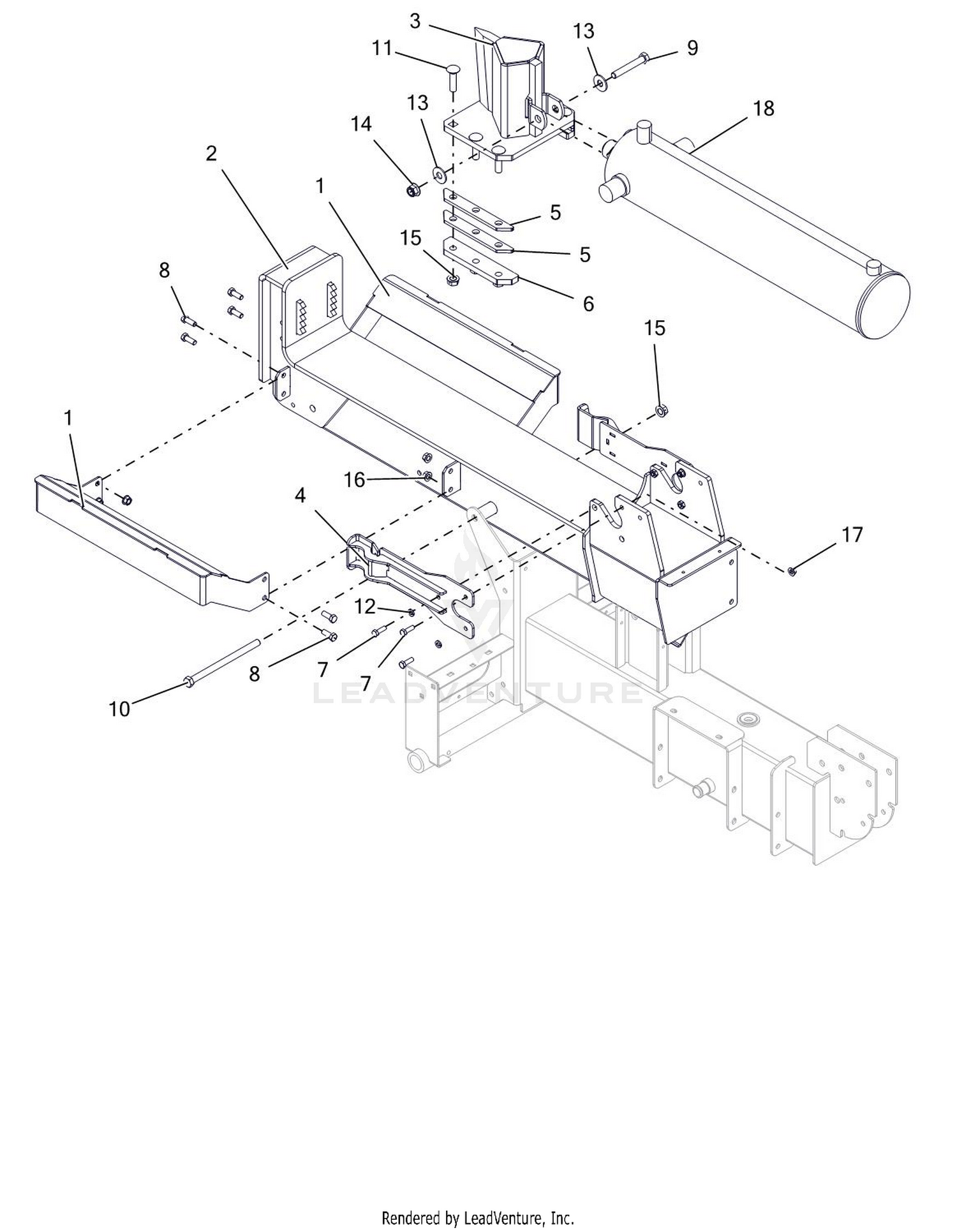

| Ref | Part Number | Description |
|---|
| 1 |
04590851 |
WLDMT, CRADLE, LOG SPLITTER Price: $132.95 |
| 1 |
22-8330 |
PLUG Price: $64.59 |
| 1 |
HG72267 |
Kit, Housing Price: Call Us |
| 2 |
04740951 |
WLDMT, BEAM - 27/34T SPLITTER Price: $448.95 |
| 2 |
237-42 |
O-RING Price: $2.78 |
| 3 |
04824851 |
WMT, WEDGE - SPLITTER Price: $537.45 |
| 3 |
22-8340 |
SPRING Price: $19.09 |
| 3 |
HG50641 |
STRAIGHT HEADLESS PIN Price: Call Us |
| 4 |
04861459 |
WLDMT, PLATE - STRIPPER Price: $112.45 |
| 4 |
22-8350 |
BALL Price: $12.28 |
| 4 |
HG50969 |
HEX FLANGE BOLT, M8-1.25 X 60MM Price: Call Us |
| 5 |
03967151 |
SPACER, WEDGE Price: $21.95 |
| 5 |
22-8370 |
SEAT-VALVE Price: $88.05 |
| 5 |
HG54022 |
HOUSING, O'RING Price: Call Us |
| 6 |
04353251 |
RETAINER,WEDGE Price: $23.95 |
| 6 |
22-8360 |
PIN Price: $43.02 |
| 6 |
HG70622 |
Kit, Charge Pump Price: Call Us |
| 7 |
05901701 |
BLT,HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 8 |
05901711 |
BLT,HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 8 |
22-8420 |
SPOOL Price: $437.22 |
| 8 |
HG2513030 |
BYPASS VALVE KIT Price: Call Us |
| 9 |
05901634 |
BLT,HEX .50-13X3.25 G5 ZCC This part replaces 05960000. Price: $3.45 |
| 9 |
22-8500 |
O-RING Price: $18.87 |
| 10 |
05902023 |
BLT, HEX .50-13X7.50 G5 ZCC This part replaces 05978200. Price: $7.45 |
| 10 |
22-8380 |
RETAINER Price: $17.86 |
| 10 |
HG51161 |
LIP SEAL Price: Call Us |
| 11 |
06200422 |
BLT- RHSN .50-13X2.00 G8 ZCC This part replaces 06200208. Price: $5.45 |
| 11 |
22-8410 |
SPRING Price: $17.61 |
| 11 |
HG50329 |
RETAINING RING Price: Call Us |
| 12 |
06300123 |
WSHR, LK-HVY .312X.097 ZCC This part replaces 06307400. Price: $0.45 |
| 12 |
22-8390 |
RETAINER Price: $56.56 |
| 13 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 13 |
22-8400 |
SPACER Price: $42.41 |
| 13 |
HG2003014 |
BLOCK, SPRING Price: Call Us |
| 14 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 14 |
22-8480 |
RING-SNAP Price: $49.87 |
| 14 |
HG2003017 |
DISCONTINUED Price: Call Us |
| 15 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC This part replaces 06530008. Price: $0.95 |
| 15 |
HG53998 |
Swashplate Price: Call Us |
| 16 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 17 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 18 |
HG2000015 |
SLOT GUIDE Price: Call Us |
| 19 |
HG70743 |
SHOCK VALVE KIT, .031 ORIFICE Price: Call Us |
| 20 |
HG70743 |
SHOCK VALVE KIT, .031 ORIFICE Price: Call Us |
| 21 |
HG70403 |
CHARGE RELIEF KIT Price: Call Us |
| 22 |
HG2513043 |
TRUNNION SEAL WITH RETAINER Price: Call Us |
| 24 |
HG70525 |
OVERHAUL SEAL KIT Price: Call Us |
| 27 |
HG9005110-5600 |
Straight Thread Plug Price: Call Us |
