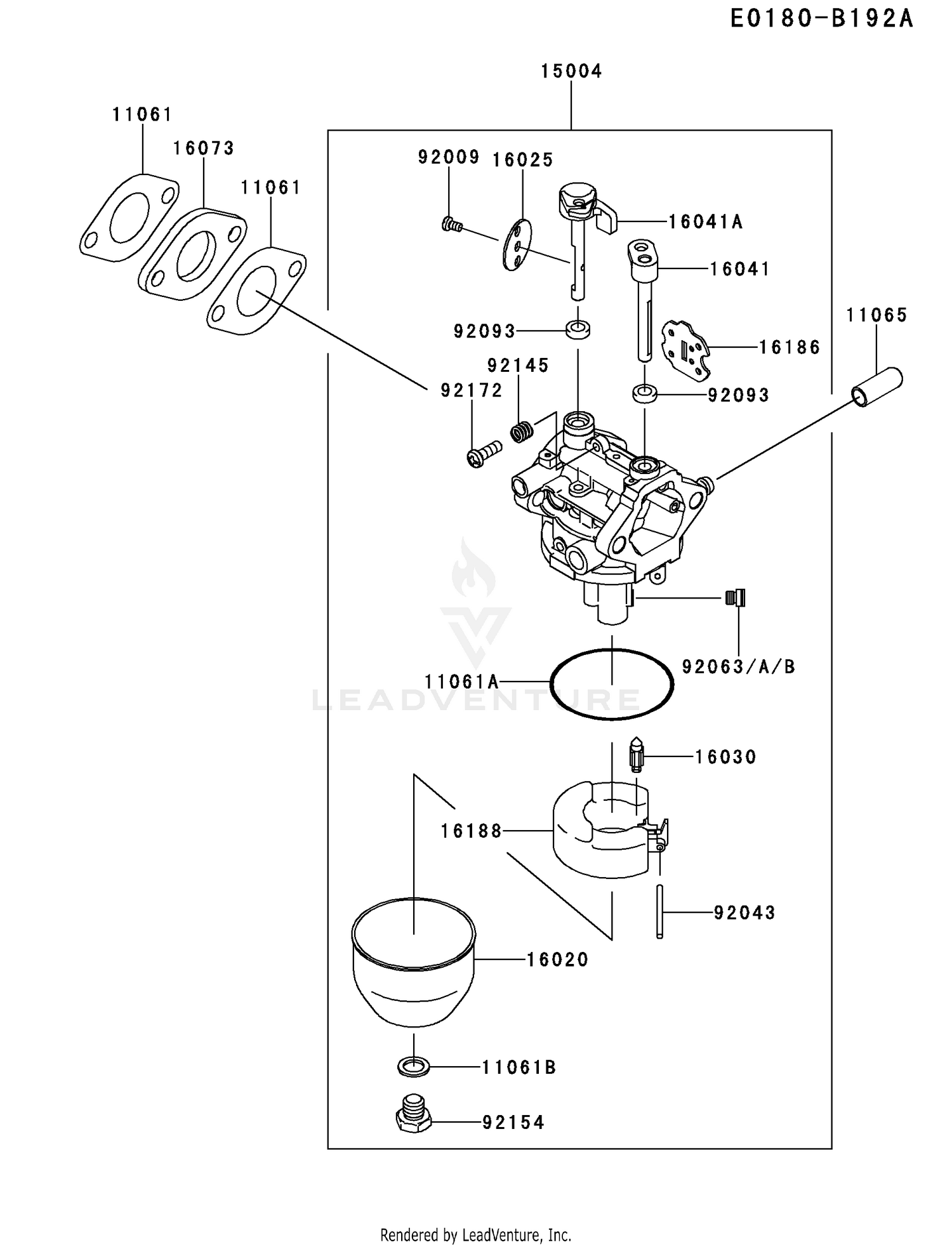

CARBURETOR
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 11061 | 11061-2215 | GASKET,INSULATOR Price: $1.74 |
| 11061A | 11061-2238 | GASKET Price: $4.95 |
| 11061B | 11061-7054 | GASKET,CENTER POST Price: $5.40 |
| 11065 | 11065-2140 | CAP Price: $1.11 |
| 15004 | 15004-0952 | CARBURETOR-ASSY Price: $177.76 |
| 16020 | 16020-2156 | CHAMBER-FLOAT Price: $44.54 |
| 16025 | 16025-2213 | VALVE-THROTTLE Price: $11.69 |
| 16030 | 16030-7004 | VALVE-FLOAT Price: $22.70 |
| 16041 | 16041-2265 | SHAFT-CARBURETOR Price: $15.18 |
| 16041A | 16041-2267 | SHAFT-CARBURETOR Price: $40.94 |
| 16073 | 16073-2240 | INSULATOR Price: $2.11 |
| 16186 | 16186-2052 | VALVE-ASSY-CHOKE Price: $14.71 |
| 16188 | 16188-2001 | FLOAT Price: $18.49 |
| 92009 | 92009-2049 | SCREW Price: $0.64 |
| 92043 | 92043-2274 | PIN Price: $3.74 |
| 92063 | 92063-2497 | JET-MAIN,#81 Price: $13.49 |
| 92063A | 92063-2498 | JET-MAIN,#79,3280FT Price: $13.65 |
| 92063B | 92063-2499 | JET-MAIN,#77,6560FT Price: $13.52 |
| 92093 | 92093-2135 | SEAL Price: $4.04 |
| 92145 | 92145-2202 | SPRING Price: $4.13 |
| 92154 | 92154-2049 | BOLT Price: $9.40 |
