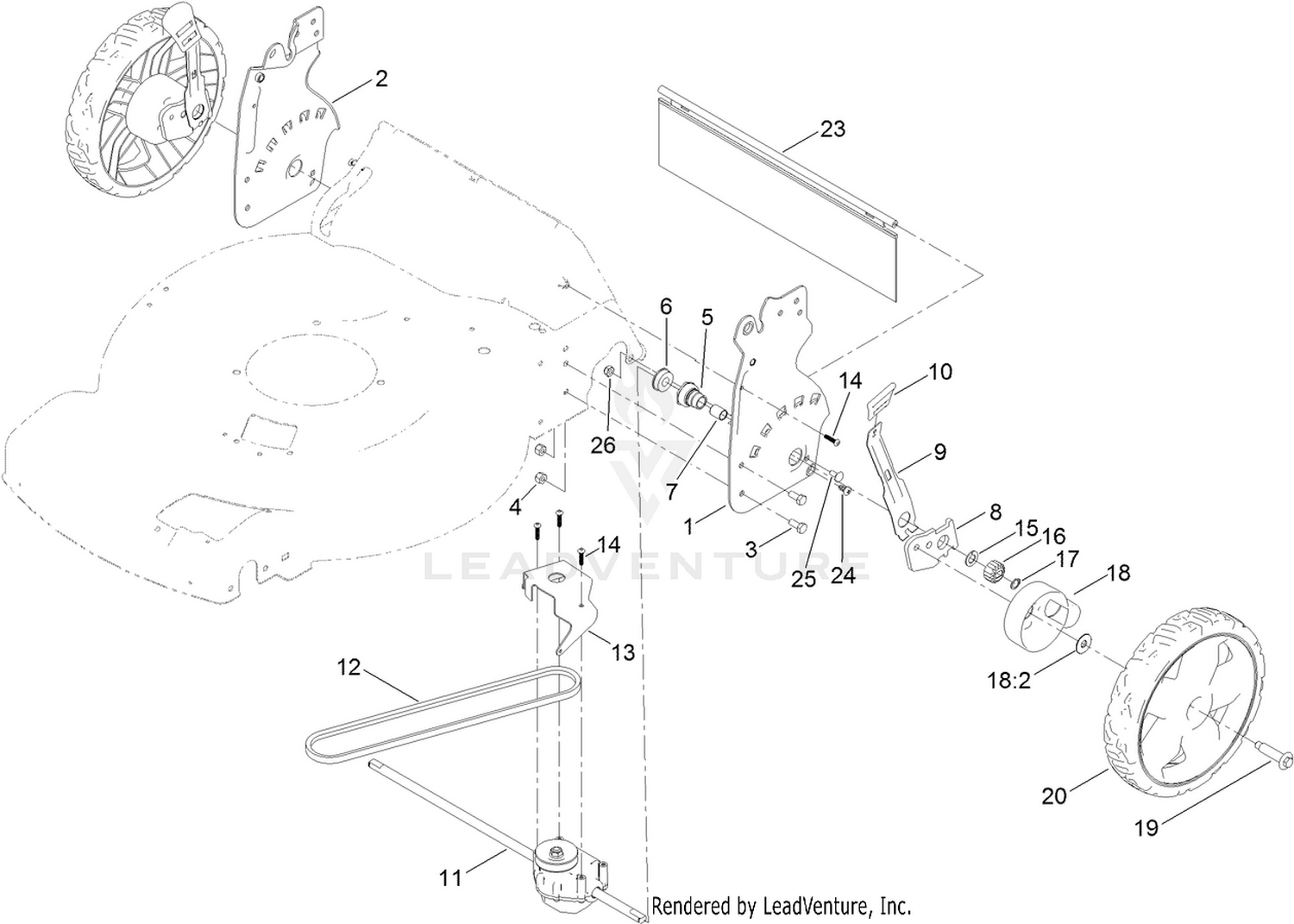

| Ref | Part Number | Description |
|---|
| 1 |
137-9104 |
HOC PLATE ASM (LH) Price: $16.24 |
| 2 |
137-9103 |
HOC PLATE ASM (RH) Price: $16.24 |
| 3 |
137-3052 |
SCREW-HH Price: $0.34 |
| 4 |
119-4038 |
NUT-HEX Price: $0.31 |
| 5 |
108-9779 |
RETAINER-BUSHING, HOC Price: $9.09 |
| 6 |
104-8699 |
BEARING-BALL Price: $3.28 |
| 7 |
108-9782 |
BUSHING-SLEEVE Price: $2.32 |
| 8 |
136-9090 |
ARM-PIVOT, REAR Price: $8.02 |
| 9 |
132-4486 |
ARM-SPRING Price: $9.32 |
| 10 |
110-0549 |
KNOB-HOC Price: $1.08 |
| 11 |
137-4825 |
TRANSMISSION-RWD (6:1) Price: $75.32 |
| 12 |
91-2258 |
BELT-V Price: $17.50 |
| 13 |
132-4481-01 |
BRACKET-TRANSMISSION Price: $9.32 |
| 14 |
120-9676 |
SCREW-PLASTITE Price: $0.34 |
| 15 |
110-7191 |
WASHER-THRUST Price: $1.79 |
| 16 |
131-5399 |
GEAR-PINION, 15T Price: $2.67 |
| 17 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 18 |
136-9057 |
GEAR COVER ASM Price: $3.79 |
| 19 |
614650 |
BOLT-SHOULDER Price: $3.28 |
| 20 |
136-5859 |
WHEEL GEAR ASM Price: $27.90 |
| 23 |
139-6604 |
SHIELD-TRAILING Price: $11.18 |
| 24 |
139-1692 |
SCREW-THD Price: $0.32 |
| 25 |
100-1445 |
BOLT-CARR Price: $0.33 |
