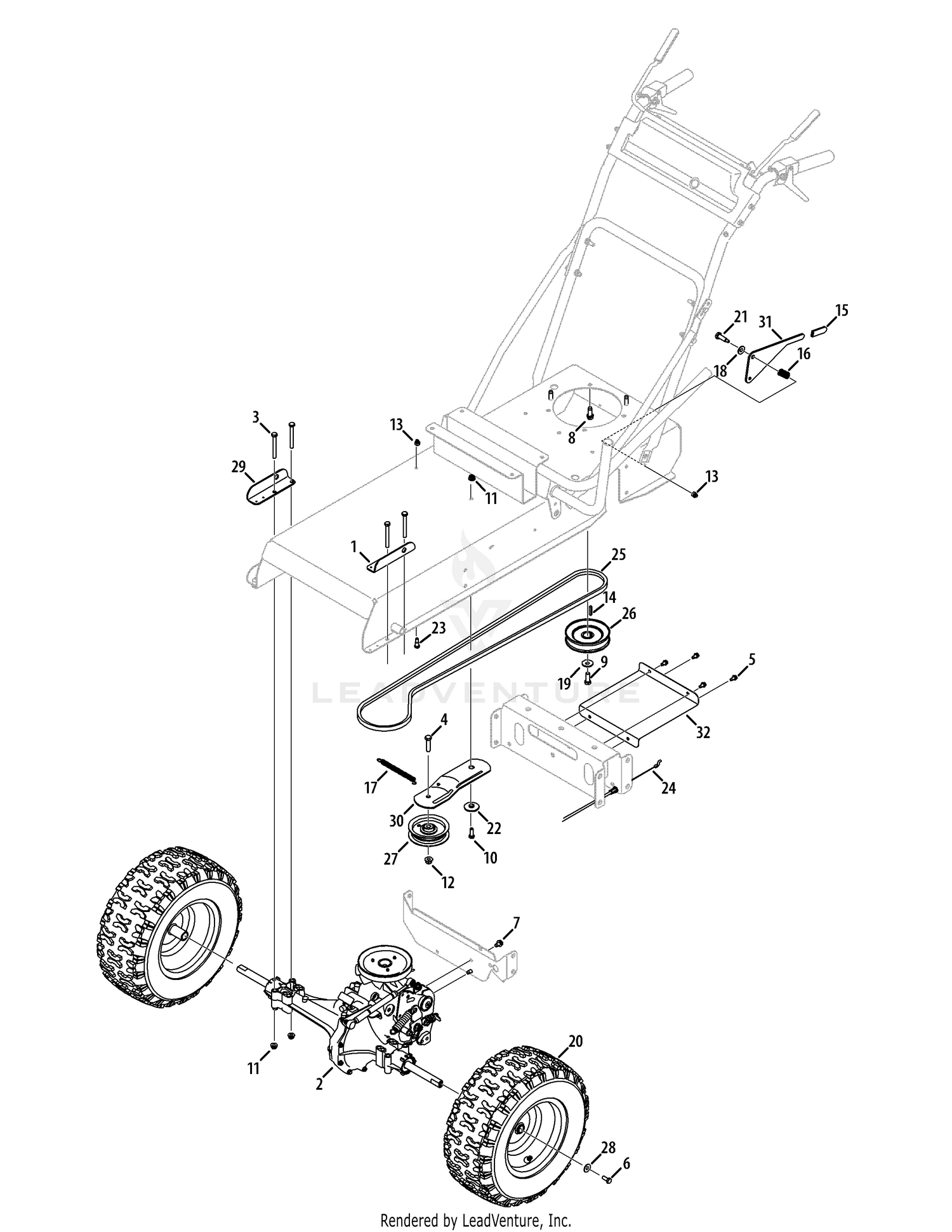

| Ref | Part Number | Description |
|---|
| 1 |
781-04380-0638 |
L/FRT PIVOT BRACKET (MTD RED) Not Available Price: |
| 2 |
727-04291 |
DAMPER CYLINDER Not Available Price: |
| 2 |
732-04293 |
Spring, .75 OD X 3.240 Price: $11.65 |
| 2 |
918-04845 |
TRANSMISSION Not Available Price: |
| 3 |
710-0176 |
Hex Head Screw, ....-18 x 2.75 Price: $3.89 |
| 4 |
710-0520 |
Hex Head Screw, 3..-16 x 1.50 Price: $3.93 |
| 5 |
710-0599 |
Screw, .-20 x 0.500 Price: $3.86 |
| 6 |
710-0627 |
Hex Head Screw, ....-24 x .750 Price: $3.68 |
| 7 |
710-0607 |
Screw, ....-18 x 0.500 Price: $6.06 |
| 8 |
710-0654A |
Screw, 3..-16 x 1.000 Price: $3.75 |
| 9 |
710-1039 |
Hex Head Screw, 3..-24 x 1.00 Price: $4.02 |
| 10 |
710-3038 |
Hex Head Screw, ....-18 x .875 Price: $4.17 |
| 11 |
712-04063 |
Flangelock Nut, ....-18 Price: $3.56 |
| 12 |
712-04065 |
Flangelock Nut, 3..-16 Price: $3.68 |
| 13 |
712-0442 |
Cap Lock Nut, 1/4-20 This part replaces 912-0442. Price: $6.01 |
| 14 |
914-0105 |
Square Key, 3... x 1.00 Price: $3.22 |
| 15 |
720-04008 |
SHIFT HANDLE GRIP Not Available Price: |
| 16 |
732-0193 |
Compression Spring, .39 x .60 x .88 Price: $4.11 |
| 17 |
732-04639 |
EXTENSION SPRING .55 x 6.25 Not Available Price: |
| 18 |
936-0267 |
Washer, Flat, .385 x .87 x .06 Price: $3.90 |
| 19 |
736-0452 |
Bell Washer, .396 x 1.14 x .095 This part replaces 936-0452. Price: $4.05 |
| 20 |
634-04135-0911 |
WHEEL ASSEMBLY (16 x 6.5) (OYSTER-CARLISLE) Not Available Price: |
| 21 |
738-04125 |
Screw, Shield, .374 DIA. x 1.05 LG. Price: $4.08 |
| 22 |
738-04166 |
Spacer, Shoulder, .5000 x .1475 Price: $5.48 |
| 23 |
738-04395 |
Screw, Shoulder, .-20 x .31 x .50 Price: $4.04 |
| 24 |
946-04623 |
TRANSMISSION RELEASE CABLE Not Available Price: |
| 25 |
954-04165 |
V-Belt, 4L x 78 LG POLY Price: $49.99 |
| 26 |
756-04378 |
ENGINE PULLEY Not Available Price: |
| 27 |
756-0627D |
Idler Pulley, 3.50 DIA. Price: $28.58 |
| 28 |
736-0242 |
Washer, Bell, .340 x .872 x .060 Price: $3.75 |
| 29 |
781-04347-0638 |
R/FRT PIVOT BRACKET (MTD RED) Not Available Price: |
| 30 |
781-04349-0637 |
IDLER BRACKET PULLEY (POWDER BLACK) Not Available Price: |
| 31 |
781-04376-0637 |
TRANS RELEASE LEVER Not Available Price: |
