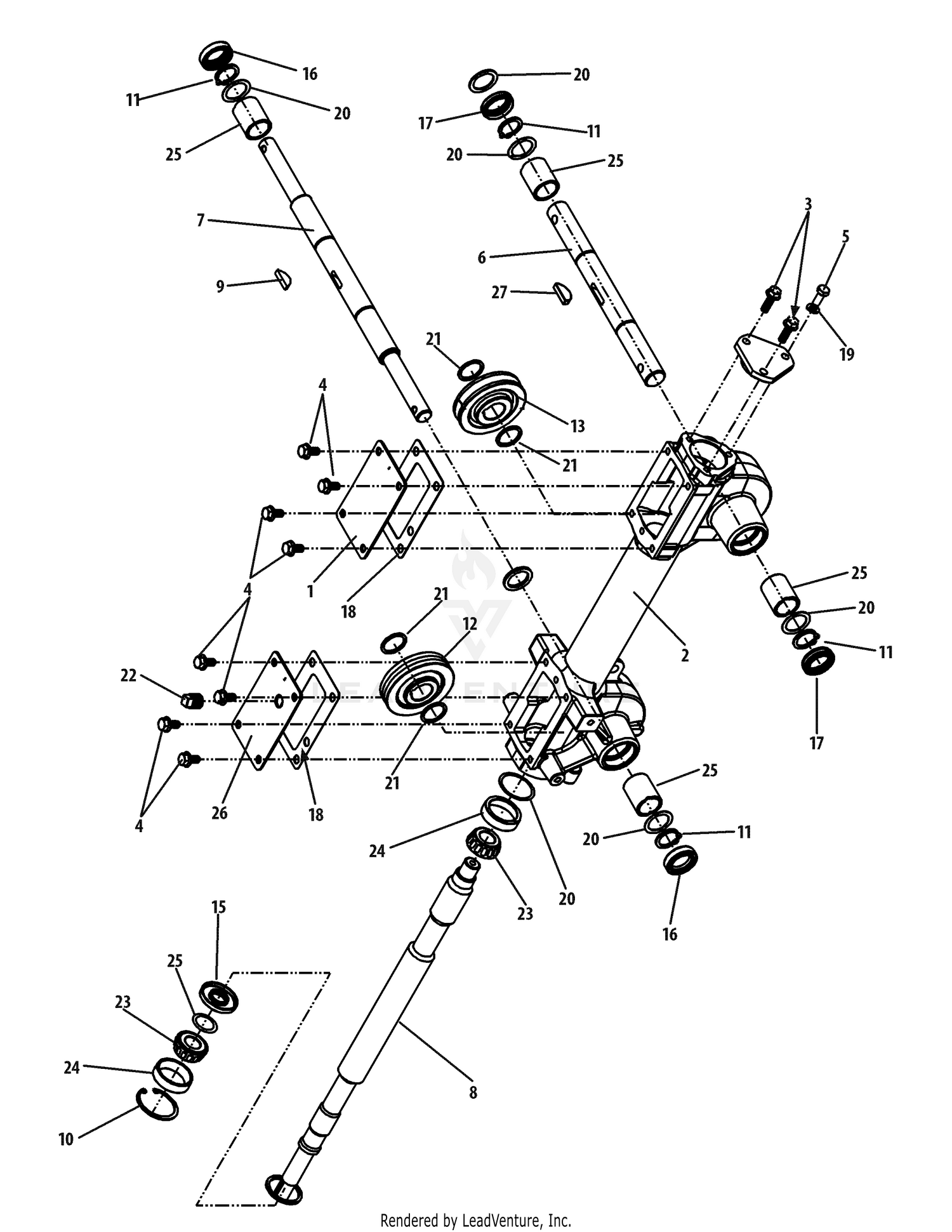

| Ref | Part Number | Description |
|---|
| 1 |
1916109001 |
COVER-TRANS REAR Not Available This part replaces 1918377. Price: |
| 2 |
919-04013 |
TRANSMISSION HOUSING Not Available This part replaces 619-04013. Price: |
| 3 |
710-04048 |
Hex Head Flange Screw Price: $4.19 |
| 4 |
710-04049 |
Hex Head Flange Screw Price: $4.11 |
| 5 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 6 |
711-04076 |
Tiller Shaft Price: Call Us |
| 7 |
711-04488 |
Wheel Shaft Price: Call Us |
| 8 |
911-04882 |
DRIVE SHAFT CRT BRONCO Not Available This part replaces 711-04882. Price: |
| 9 |
714-04059 |
Hi-Pro Key Price: $5.94 |
| 10 |
716-04102 |
Retaining Ring Price: $3.85 |
| 11 |
716-04104 |
Retaining Ring Price: $3.85 |
| 12 |
917-04380 |
RH Gear Worm, 61T This part replaces 717-04380. Price: $146.63 |
| 13 |
917-04381 |
LH Gear Worm, 30T This part replaces 717-04381. Price: $128.03 |
| 14 |
918-04435 |
Bearing Cover This part replaces 718-04008. Price: $20.18 |
| 15 |
921-04030 |
Oil Seal, .75 x 1.783 This part replaces 721-04030. Price: $11.33 |
| 16 |
921-04031 |
Oil Seal, 1.0 x 1.499 This part replaces 721-04031. Price: $9.58 |
| 17 |
921-04036 |
Seal,Oil 1.00 Shft X 1.500 Bore This part replaces 721-04036. Price: $17.34 |
| 18 |
921-04229 |
Gear Housing Gasket This part replaces 721-04229. Price: $6.04 |
| 19 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 20 |
736-04257 |
Flat Washer, 1.015 x 1.375 x .005 Price: $3.48 |
| 20 |
736-04258 |
Flat Washer, 1.015 x 1.375 x .01 Price: $3.48 |
| 20 |
736-04259 |
Flat Washer, 1.015 x 1.375 x .015 Price: $5.94 |
| 20 |
736-04260 |
Flat Washer, 1.015 x 1.375 x .03 Price: $5.94 |
| 20 |
736-04304 |
Flat Washer, 1.25 x .75 x .06 Price: $3.86 |
| 20 |
736-04305 |
Flat Washer, 1.5 x 1.75 x .062 Price: $3.52 |
| 20 |
736-04306 |
Flat Washer, 1.5 x 1.75 x .005 Price: $3.85 |
| 20 |
736-04307 |
Flat Washer, 1.5 x 1.75 x .03 Price: $3.85 |
| 20 |
736-04308 |
Flat Washer, 1.5 x 1.75 x .01 Price: $3.85 |
| 21 |
736-04310 |
Flat Washer, 1.015 x 1.234 x .062 Price: $3.95 |
| 22 |
737-04202 |
Pipe Plug Price: $6.01 |
| 23 |
941-04298 |
Cone Bearing This part replaces 741-04298. Price: $14.84 |
| 24 |
941-04299 |
Cup Bearing This part replaces 741-04299. Price: $6.01 |
| 25 |
941-04300 |
Bushing, 1.25 x 1 x .005 x 1.5 This part replaces 741-04300. Price: $15.25 |
| 26 |
786-04359 |
Transmission Cover Price: $21.85 |
