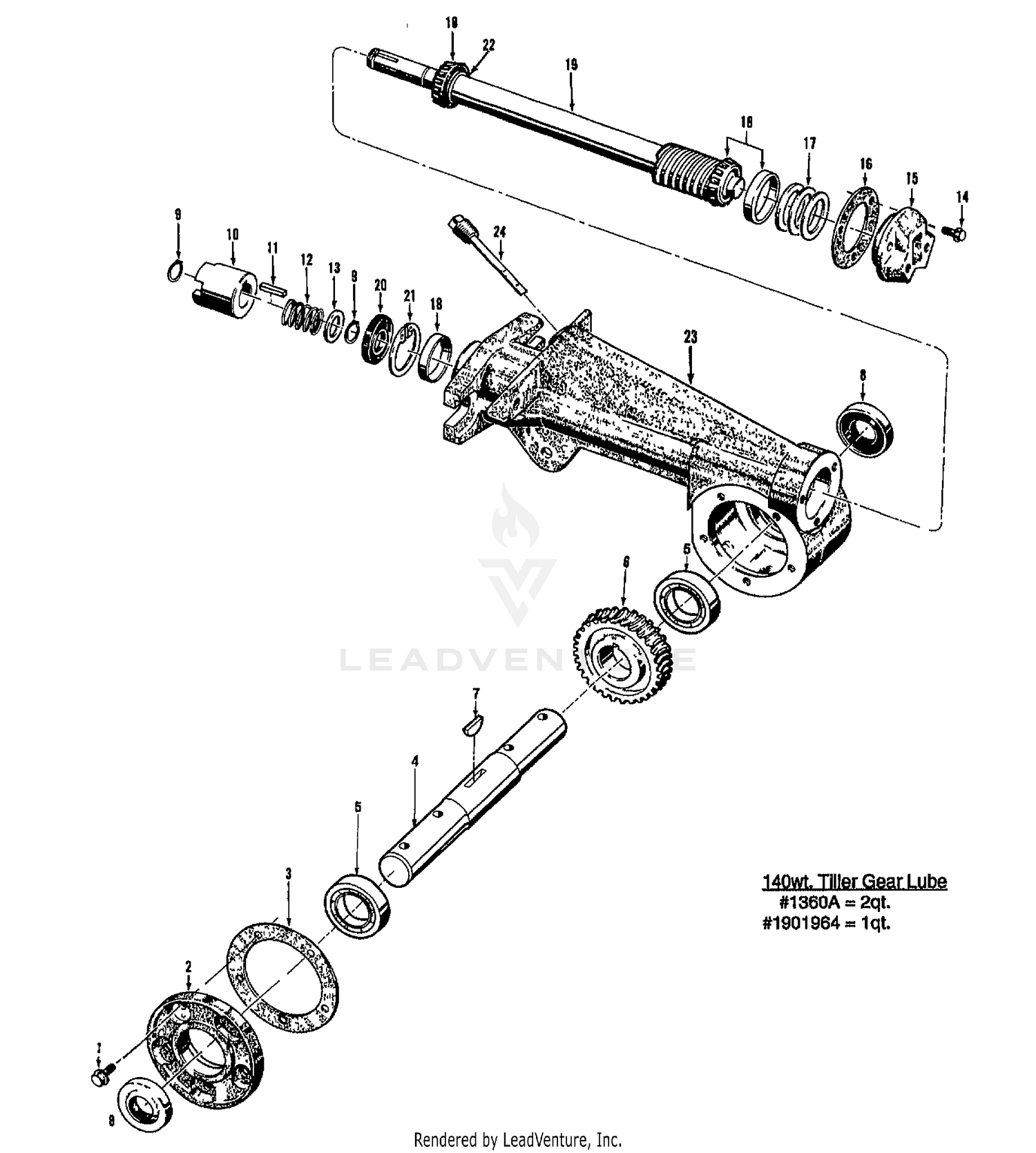

| Ref | Part Number | Description |
|---|
| 1 |
1915087 |
SEALING KIT Not Available Price: |
| 2 |
GW-20873 |
Cover, Tiller Housing This part replaces 20873. Price: $95.24 |
| 3 |
GW-1129-1099 |
TILLER COVER GASKET This part replaces 1129-1. Price: $7.81 |
| 3 |
GW-1129-2099 |
TILLER COVER GASKET This part replaces 1129-2. Price: $7.81 |
| 4 |
911-04082 |
Tine Shaft This part replaces 1901972. Price: $101.65 |
| 5 |
941-3037 |
PTO SHAFT BALL BEARING This part replaces 97074. Price: $38.73 |
| 6 |
1901976 |
GEAR-WORM MACH RTH HORSE Price: $146.85 |
| 7 |
GW-1104 |
Key-Woodruff, 1/4 x 1-1/4 This part replaces 1104. Price: $8.32 |
| 8 |
921-04035 |
Oil Seal, .984 x 1.75 This part replaces 97073. Price: $10.91 |
| 9 |
716-0101 |
Retaining Ring-external This part replaces 9500. Price: $3.37 |
| 10 |
1902404 |
CLUTCH KIT This part replaces GW-2120-1. Price: $146.17 |
| 10 |
718-04614 |
Dog Clutch This part replaces 1909138. Price: $27.61 |
| 11 |
GW-9301 |
Key, 3/16 sq. x 1 This part replaces 9301. Price: $3.46 |
| 12 |
732-04022 |
COMPRESSION SPRING .766 ID x 1.50 TILR This part replaces 2127. Price: $4.99 |
| 13 |
736-04187 |
SHIM - engine pulley, 1/16" thick This part replaces 1138-1. Price: $4.36 |
| 14 |
1915089 |
SEALING KIT Not Available Price: |
| 15 |
718-04406 |
Rear Bearing Cover This part replaces 1900881010. Price: $44.01 |
| 16 |
GW-1124-2099 |
BEARING COVER GASKET This part replaces 1124-2. Price: $3.98 |
| 17 |
736-04305 |
Washer, Flat, 1.50 x 1.75 x .062 This part replaces 1224-4. Price: $3.52 |
| 17 |
736-04306 |
Washer, Flat, 1.50 x 1.75 x .005 This part replaces 1224-3. Price: $3.85 |
| 17 |
736-04308 |
Washer, Flat, 1.50 x 1.75 x .010 This part replaces 1224-1. Price: $3.85 |
| 17 |
742-05107-4046 |
BLADE:46":SIDE:HOP 532-405380 This part replaces 12242. Price: $28.06 |
| 18 |
941-0107 |
Bearing, Tapered Roller (with race) This part replaces 1714. Price: $41.81 |
| 19 |
GW-11602 |
Shaft This part replaces 11602. Price: $265.94 |
| 20 |
921-04030 |
Oil Seal, .75 x 1.783 This part replaces 9617. Price: $11.33 |
| 21 |
716-04102 |
Retaining Ring, Int This part replaces 9517. Price: $3.85 |
| 22 |
736-04187 |
SHIM - engine pulley, 1/16" thick This part replaces 1138-1. Price: $4.36 |
| 23 |
1902000 |
HOUSING-TILLER W/SLEEVE Price: $280.06 |
| 24 |
1909157 |
ASSM-DIPSTICK HORSE TRANS Price: $16.46 |
