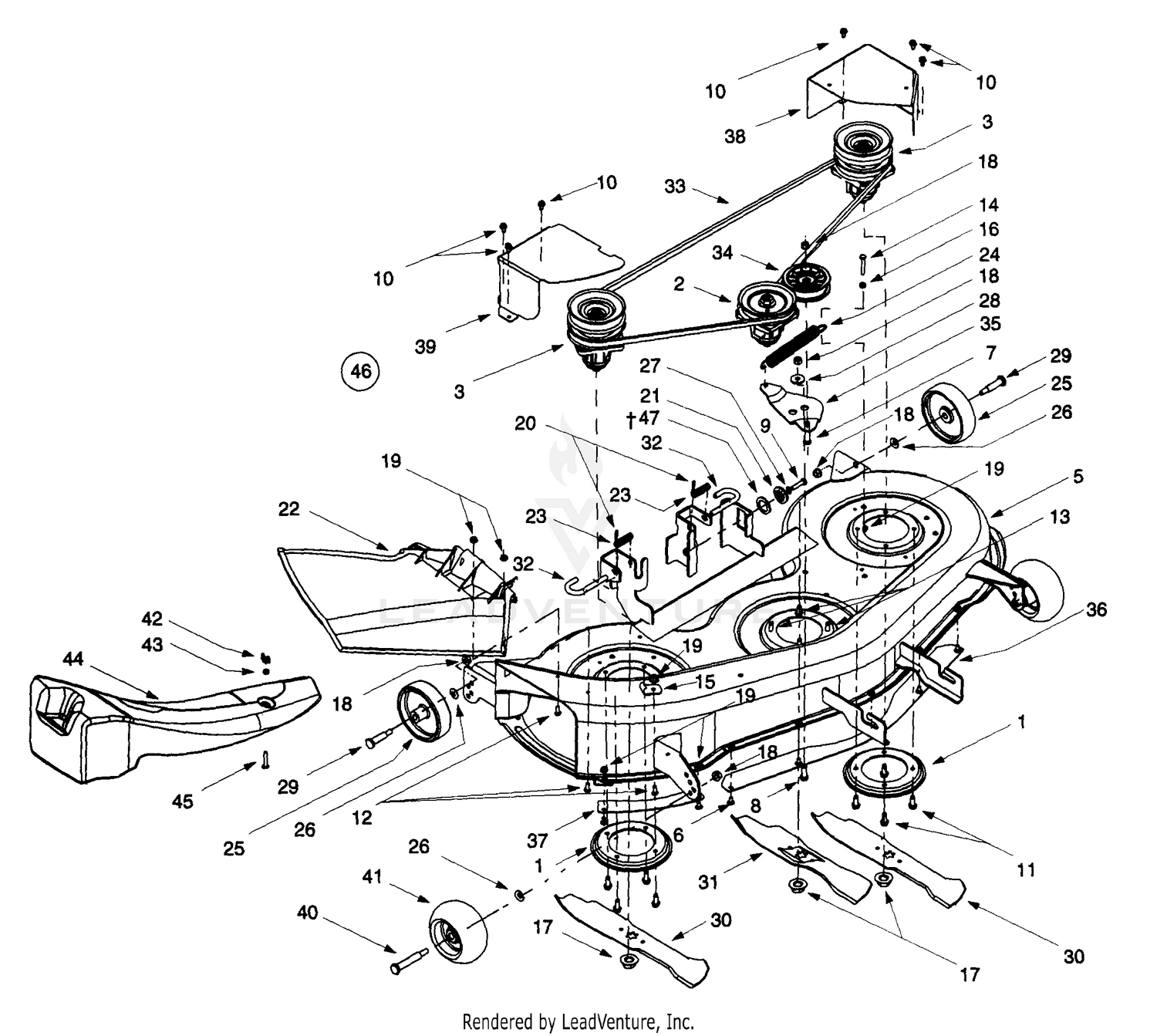

| Ref | Part Number | Description |
|---|
| 1 |
17982-0637 |
PLATE-SPINDLE Not Available This part replaces 17982. Price: |
| 2 |
918-0240C |
Spindle Assembly, 5.00 Dia. This part replaces 618-0240. Price: $127.04 |
| 3 |
918-0241B |
Double Pulley Spindle Assembly This part replaces 618-0241. Price: $170.27 |
| 6 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 7 |
710-0347 |
Hex Cap Screw, 3/8-16 x 1.75 Price: $4.39 |
| 8 |
710-0514 |
Hex Cap Screw, 3/8-16 x 1.0 Price: $3.78 |
| 9 |
710-0528 |
Hex Cap Screw, 5/16-18 x 1.25 Price: $3.90 |
| 10 |
710-0599 |
Self Tapping Screw, 1/4-20 x .5 Price: $3.86 |
| 11 |
710-0650 |
Self Tapping Screw, 5/16-18 x .875 Price: $3.71 |
| 12 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 13 |
710-1260A |
Self Tapping Screw, 5/16-18 x .75 Price: $3.34 |
| 14 |
712-0147 |
U-Type Speed Nut This part replaces 712-0106. Price: $6.01 |
| 15 |
96606 |
Retainer Hook Bracket This part replaces 16606. Price: $6.71 |
| 16 |
712-0291 |
Center Lock Nut, 1/4-20 Price: $3.93 |
| 17 |
712-0417A |
HEX NUT Price: $6.50 |
| 18 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 19 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 20 |
714-0104 |
Internal Cotter Pin, .072 x 1.12 Price: $3.90 |
| 21 |
917-04074 |
Adjustment, Deck, Gear This part replaces 717-1553A. Price: $11.45 |
| 22 |
631-05229 |
CHUTE ASSEMBLY This part replaces 731-1032A. Price: $71.37 |
| 23 |
932-0306A |
COMPRESSION SPRING This part replaces 732-0306. Price: $7.69 |
| 24 |
932-0594A |
Extension Spring .91 x 7.33 This part replaces 732-0594A. Price: $13.74 |
| 25 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 26 |
736-0105 |
Bell Washer, .401 x .87 x .063 Price: $3.96 |
| 27 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 28 |
938-0347 |
Spacer-Shld This part replaces 738-0347. Price: $8.93 |
| 29 |
938-0373 |
Shoulder Bolt, .496 x 1.525:3/8-16 This part replaces 738-0373. Price: $8.45 |
| 32 |
747-1116 |
Deck Release Pin Price: $11.17 |
| 33 |
954-0349 |
DECK SPINDLE BELT This part replaces 754-0349. Price: $37.46 |
| 34 |
756-0627D |
Idler Pulley 3.50 dia. This part replaces 7560627. Price: $28.58 |
| 35 |
783-0139B-0637 |
IDLER BRACKET Not Available This part replaces 783-0139. Price: |
| 36 |
783-0141 |
Center Deck Skirt Price: $53.24 |
| 37 |
783-0142-0637 |
RH Deck Skirt This part replaces 783-0142. Price: $42.48 |
| 38 |
783-0747B-0637 |
Cover, Deck Belt RH This part replaces 783-0747. Price: $51.54 |
| 39 |
783-0805C |
BELT COVER (RH) Not Available This part replaces 783-0805. Price: |
| 40 |
938-3056 |
Shoulder Screw, 1/2 Dia x 2.50 This part replaces 738-3056. Price: $8.53 |
| 41 |
734-30586 |
Deck Wheel, 5 Price: Call Us |
| 42 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 43 |
712-0291 |
Center Lock Nut, 1/4-20 Price: $3.93 |
| 44 |
731-1636 |
Mulch Plug Price: $131.51 |
| 45 |
710-0578 |
Screw, 1/4-20 x 1.5 Price: $3.93 |
| 46 |
753-0853 |
DECK ASSEMBLY KIT Not Available Price: |
