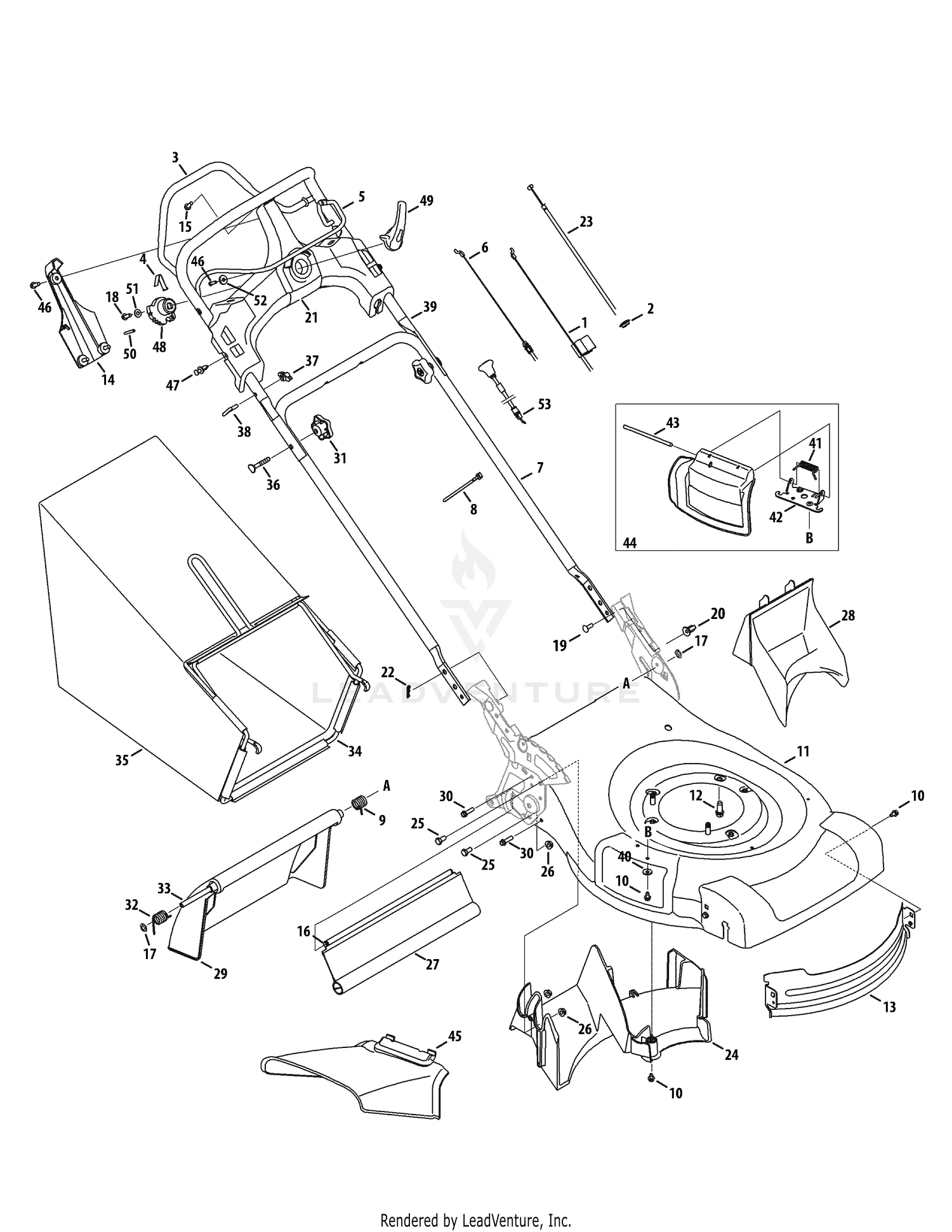

| Ref | Part Number | Description |
|---|
| 1 |
946-04515 |
Drive Cable This part replaces 746-04515. Price: $28.77 |
| 2 |
735-04059 |
Rubber Grommet Price: $4.04 |
| 3 |
747-05046 |
DRIVE BAIL Not Available Price: |
| 4 |
732-04516 |
Shift Spring Price: $7.42 |
| 5 |
747-05044 |
GAS BAIL Not Available Price: |
| 6 |
746-04516 |
CONTROL CABLE Not Available Price: |
| 7 |
749-04557-0637 |
Lower Handle Price: $62.17 |
| 8 |
725-0157 |
Cable Tie Price: $3.46 |
| 9 |
732-04535 |
Torsion Spring, LH Price: $3.96 |
| 10 |
710-0599 |
TT Screw, 1/4-20 x .500 Price: $3.86 |
| 12 |
710-0654A |
TT Screw, 3/8-16 x 1.00 Price: $3.75 |
| 13 |
987-01834 |
FRONT DECK BAFFLE Not Available This part replaces 787-01346. Price: |
| 14 |
731-06304 |
CONTROL PANEL COVER Not Available Price: |
| 15 |
710-0642 |
Screw, TT, 1/4-20 x .750 Price: $4.05 |
| 16 |
710-0779A |
Screw, #10-16 x .500 Price: $3.85 |
| 17 |
726-0201 |
Nut, Speed Price: $6.01 |
| 18 |
710-0895 |
Screw, 1/4-15 x .750 Price: $5.82 |
| 19 |
710-0703 |
Carriage Bolt, 1/4-20 Price: $3.66 |
| 20 |
712-0397A |
WING NUT This part replaces 912-0397. Price: $3.71 |
| 21 |
631-04326 |
PANEL ASSEMBLY Not Available Price: |
| 22 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 23 |
946-04439A |
Variable Speed Cable Price: $37.33 |
| 24 |
731-06173 |
REAR BAFFLE Not Available Price: |
| 25 |
710-3025 |
Screw, 5/16-18 x .625 Price: $3.64 |
| 26 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 27 |
731-05462A |
TRAILSHIELD Not Available Price: |
| 28 |
731-05157 |
Rear Mulch Plug Price: $28.91 |
| 29 |
731-05702A |
REAR DOOR Not Available This part replaces 731-05702. Price: |
| 30 |
710-1241 |
Screw, 1/4-15 x 1.00 Price: $5.77 |
| 31 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 32 |
732-04534 |
Torsion Spring, RH Price: $3.96 |
| 33 |
747-05034 |
DOOR ROD Not Available Price: |
| 34 |
647-04051B-0637 |
GRASSBAG FRAME ASSEMBLY (POWDER BLACK) Not Available This part replaces 647-04051-0637. Price: |
| 35 |
964-04045 |
Grass Catcher Price: $100.49 |
| 36 |
710-1174 |
Carriage Bolt, 5/16-18 x 2.00 Price: $6.28 |
| 37 |
720-0279 |
Wing Nut Price: $3.93 |
| 38 |
710-1205 |
Eye Bolt Price: $3.53 |
| 39 |
749-04504 |
Upper Handle Price: $47.64 |
| 40 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 41 |
732-1014C |
TORSION SPRING This part replaces 732-1014. Price: $7.40 |
| 42 |
17032A |
PLATE-ADAPTER Not Available Price: |
| 43 |
747-0710A |
HINGE PIN This part replaces 747-0710. Price: $3.86 |
| 44 |
987-02055 |
Mulch Plug Assembly Price: $24.18 |
| 45 |
731-04177 |
Side Discharge Chute Price: $16.88 |
| 46 |
710-04373A |
Screw, #12-16 x .75 Price: $3.86 |
| 47 |
728-0199 |
Rivet, Plastic Price: $4.08 |
| 48 |
731-06189 |
FOUR SPEED ACTUATOR Not Available Price: |
| 49 |
731-06193A |
SPEED SELECT LEVER Not Available This part replaces 731-06193. Price: |
| 50 |
715-04073 |
DOWEL PIN 3/16 x 1 Not Available Price: |
| 51 |
736-0275 |
FLAT WASHER This part replaces 936-0275. Price: $5.99 |
| 52 |
736-0176 |
Flat Washer .265 x .938 x .120 This part replaces 736-3000. Price: $3.95 |
