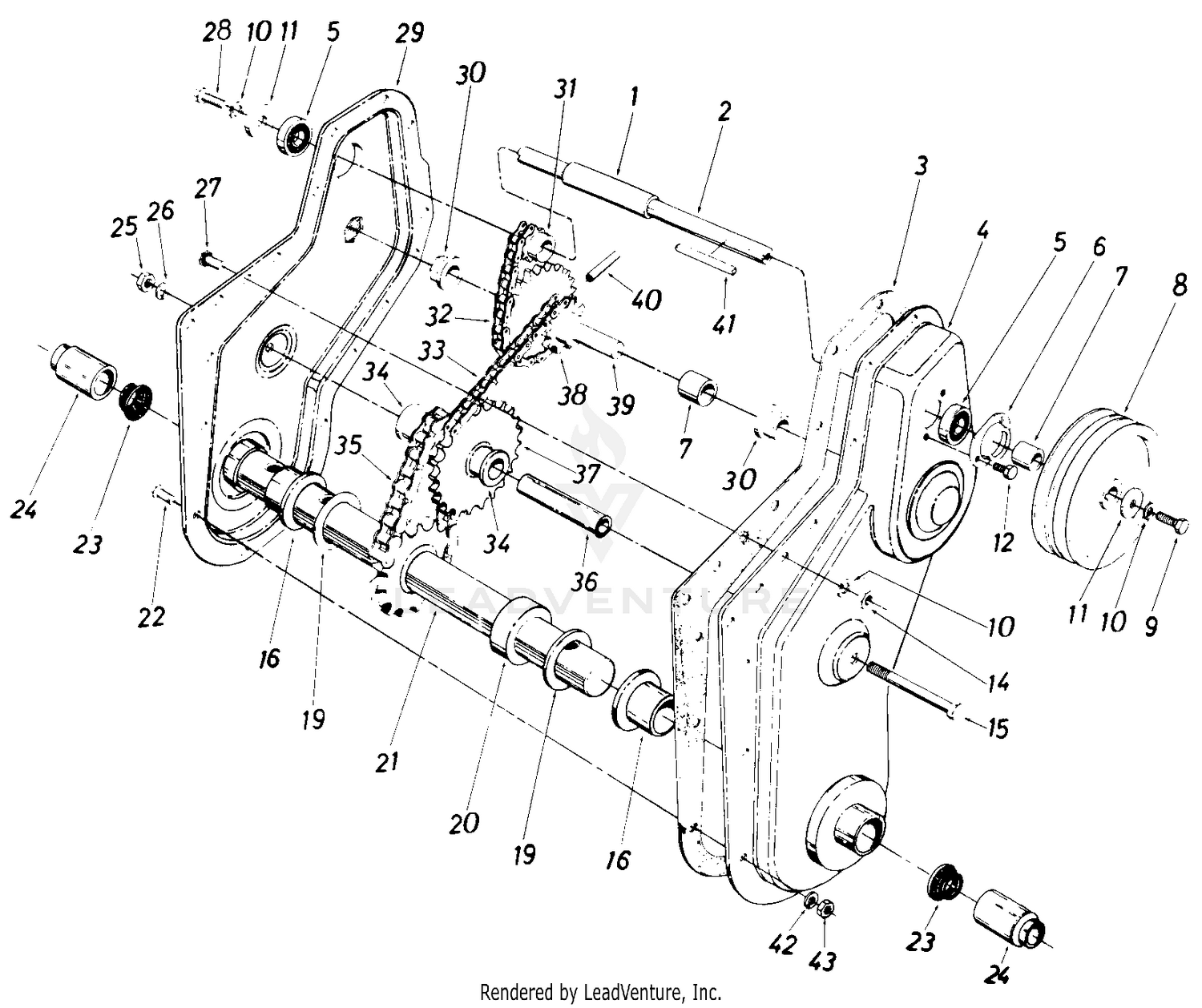

| Ref | Part Number | Description |
|---|
| 1 |
750-0315 |
SPACER Not Available Price: |
| 2 |
938-0182 |
JACK SHAFT Not Available This part replaces 738-0182. Price: |
| 3 |
921-0132 |
GASKET Not Available This part replaces 721-0132. Price: |
| 4 |
15276 |
CHAIN CASE Not Available Price: |
| 5 |
941-0155 |
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. This part replaces 741-0155. Price: $22.09 |
| 6 |
05034A |
BEARING HOUSING Not Available This part replaces 05034. Price: |
| 7 |
750-0229 |
SPACER .635 ID X.88 OD x 1.030 Not Available Price: |
| 8 |
756-0262 |
Chain Case Pulley 6.0" Dia. Price: Call Us |
| 10 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 11 |
736-0231 |
Fl-Wash. .344" I.D. x 1.125"O.D. Price: $4.02 |
| 12 |
710-0599 |
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 14 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 15 |
710-3130 |
Hex Bolt 3/8-16 x 3.25" Lg. (Grade 8) This part replaces 710-0644. Price: $8.85 |
| 19 |
736-0163 |
Flat Thrust Wash. Price: $4.05 |
| 20 |
750-0314 |
SPACER Not Available Price: |
| 21 |
784-0090 |
SHAFT-TINE Not Available Price: |
| 22 |
910-0195 |
HEX SCREW 1/4-28 x .62 Not Available This part replaces 710-0195. Price: |
| 23 |
721-0175 |
SEAL Not Available Price: |
| 24 |
931-0487 |
Dust Cap This part replaces 731-0487. Price: $10.29 |
| 25 |
712-0798 |
Hex Nut 3/8-16 Thd.* Price: $3.86 |
| 26 |
736-0169 |
L-Wash. 3/8" I.D.* Price: $3.33 |
| 27 |
710-0322 |
HEX BOLT 5/16-18 x 1 LG.* Not Available Price: |
| 29 |
15274 |
CHAIN CASE Not Available Price: |
| 30 |
948-0229 |
HEX FLANGE BEARING Not Available This part replaces 748-0229. Price: |
| 31 |
713-0206 |
SPROCKET ASSEMBLY-10T Not Available Price: |
| 34 |
748-0855 |
FLANGE BEARING .626 ID Not Available Price: |
| 36 |
738-0320 |
SHAFT-SPROCKET Not Available Price: |
| 37 |
713-0182 |
SPROCKET SLEEVE ASSEMBLY Not Available Price: |
| 38 |
713-0181 |
SPROCKET SLEEVE ASSEMBLY Not Available Price: |
| 39 |
738-0308 |
Sprocket Shaft Price: Call Us |
| 40 |
715-0114 |
Spring Pin Spiral 1/4" Dia. x 1.5" Lg. Price: $8.68 |
| 41 |
714-0133 |
Square Key 3/16 x 3/16 x 1.50" Lg.* Price: $4.20 |
| 42 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
