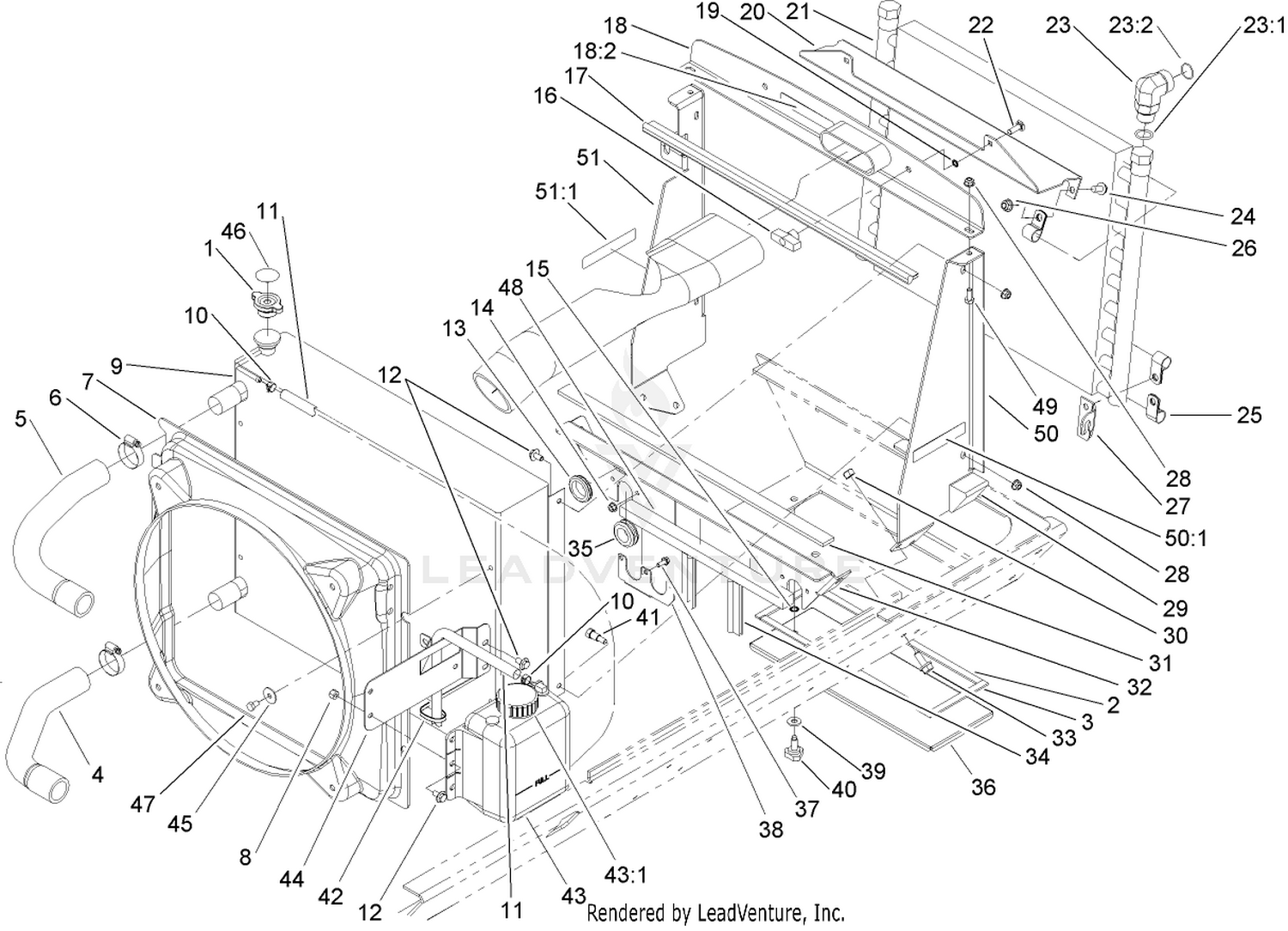

| Ref | Part Number | Description |
|---|
| 1 |
93-5957 |
CAP-RADIATOR Price: $20.99 |
| 2 |
105-0777 |
STRIP-FOAM Price: $23.31 |
| 3 |
105-0778 |
STRIP-FOAM Price: $11.41 |
| 4 |
100-5546 |
HOSE-RADIATOR, LOWER Price: $76.45 |
| 5 |
100-5547 |
HOSE-RADIATOR Price: $74.35 |
| 6 |
2412-111 |
CLAMP Price: $4.39 |
| 7 |
99-5428 |
SHROUD-RADIATOR Price: $420.87 |
| 8 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 9 |
139-0972 |
RADIATOR This part replaces 107-0244. Price: $1,684.80 |
| 10 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 11 |
110-3258 |
HOSE-FUEL This part replaces 71-3370. Price: $23.35 |
| 12 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 13 |
240-3 |
GROMMET-RUBBER Price: $17.44 |
| 14 |
32128-33 |
NUT-HF Price: $0.25 |
| 15 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 16 |
98-7134 |
KNOB-HANDLE Price: $2.69 |
| 17 |
104-2223 |
SEAL-BULB Price: $28.48 |
| 18 |
107-4313 |
RADIATOR TOP SUPPORT ASM Price: $136.15 |
| 19 |
104-8310 |
RING-RETAINING Price: $0.25 |
| 20 |
104-7522-03 |
DISCONTINUED Price: Call Us |
| 21 |
108-4008 |
COOLER-OIL Price: $813.52 |
| 22 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 23 |
104-3796 |
FITTING-ELBOW 90 Price: $120.65 |
| 24 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 25 |
2412-81 |
CLAMP-R Price: $3.39 |
| 26 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 27 |
100-3077-03 |
BRACKET-COOLER, RH Price: $25.36 |
| 27 |
100-3078-03 |
BRACKET-COOLER, LH Price: $25.36 |
| 28 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 29 |
93-5954 |
PLUG-FOAM Price: $24.91 |
| 30 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 31 |
104-2226 |
STRIP-FOAM Price: $25.45 |
| 32 |
107-0200-03 |
BRACKET-BASE Price: $41.18 |
| 33 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 34 |
104-2224 |
SEAL-BULB Price: $13.19 |
| 35 |
237-165 |
GROMMET Price: $15.70 |
| 36 |
104-2287-03 |
COVER-FRAME Price: $60.02 |
| 37 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 38 |
106-6773-03 |
PLATE Price: $13.52 |
| 39 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 40 |
95-9648 |
KNOB Price: $15.40 |
| 41 |
28-0540 |
BOLT-SHOULDER Price: $11.99 |
| 42 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 43 |
120-5571 |
COOLANT RESERVOIR ASM This part replaces 104-2276. Price: $151.27 |
| 44 |
100-5505-03 |
BRACKET-TANK Price: $32.07 |
| 45 |
3256-82 |
WASHER-FLAT Price: $0.47 |
| 46 |
106-6755 |
DECAL-CAP, RADIATOR Price: $18.49 |
| 47 |
322-1 |
SCREW-HH Price: $0.22 |
| 48 |
95-4231 |
FOAM-SEAL, SIDE SCREEN Price: $35.99 |
| 49 |
322-3 |
SCREW-HH Price: $0.79 |
| 50 |
110-6169 |
LH RADIATOR SUPPORT ASM This part replaces 107-4314. Price: $105.76 |
| 51 |
110-6170 |
RH RADIATOR SUPPORT ASM This part replaces 107-4315. Price: $105.76 |
