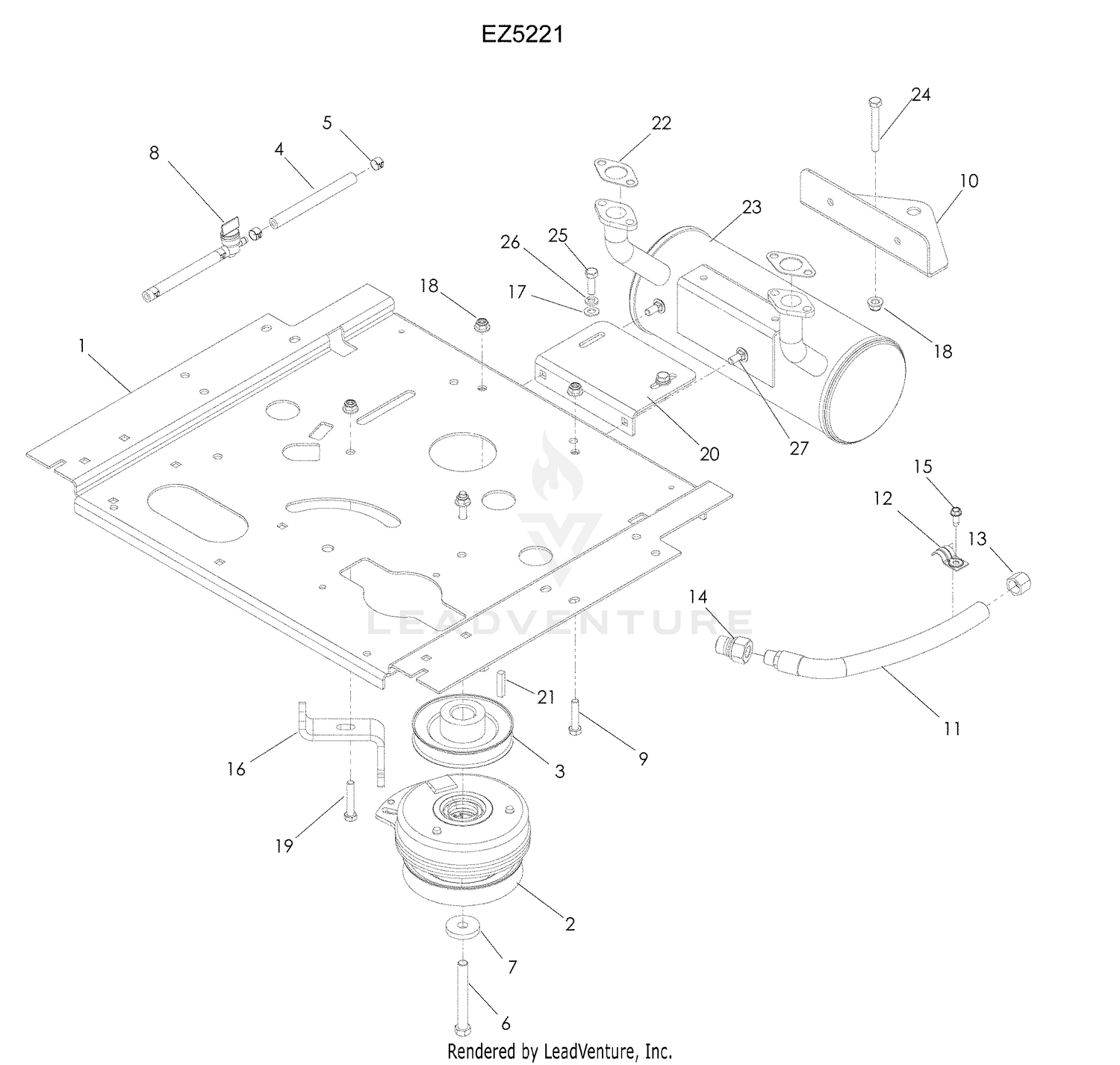

| Ref | Part Number | Description |
|---|
| 1 |
516007502 |
PLATE, ENGINE, BLACK Price: $166.99 |
| 1 |
59-7580 |
NUT Price: $0.95 |
| 2 |
3253-6 |
WASHER-LOCK This part replaces 59-7590. Price: $0.39 |
| 2 |
505287301 |
CLUTCH, 105 FT-LBS Price: $249.99 |
| 3 |
539109639 |
PULLEY Price: $36.99 |
| 3 |
59-7970 |
STUD Price: $17.00 |
| 4 |
587044805 |
HOSE.1/4".LOW.PERM.FUEL.LN.5" This part replaces 539110425. Price: $2.99 |
| 4 |
69-2060 |
SHAFT END COVER ASM This part replaces 86-6010. Price: $1,123.41 |
| 5 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 5 |
59-7990 |
SEAL Price: $14.58 |
| 6 |
581332804 |
CLUTCH BOLT7/16-20X3.5 GR524HR This part replaces 539976944. Price: $6.99 |
| 6 |
59-8470 |
RETAINER Price: $18.19 |
| 7 |
532126197 |
WASHER This part replaces 539110064. Price: $6.99 |
| 7 |
69-2070 |
PLATE-FLEX This part replaces 86-6070. Price: $311.23 |
| 8 |
539916325 |
FUEL VALVE Price: $9.99 |
| 8 |
69-2080 |
SECTION-CENTER This part replaces 86-6020. Price: $700.92 |
| 9 |
59-8590 |
SEAL Price: $31.34 |
| 9 |
596582201 |
Bolts This part replaces 539976935. Price: $2.99 |
| 10 |
516011802 |
HITCH, BLACK Price: $59.99 |
| 10 |
59-8500 |
GEAR Price: $1,303.76 |
| 11 |
539101362 |
OIL DRAIN HOSE Price: $24.99 |
| 11 |
59-8600 |
GEAR Price: $470.56 |
| 11 |
74-3240 |
DRIVEN GEAR Price: $441.50 |
| 12 |
539101363 |
CLAMP Price: $2.99 |
| 12 |
86-6080 |
O-RING Price: $4.40 |
| 13 |
539101364 |
DRAIN CAP Price: $5.99 |
| 13 |
86-6000-01 |
PUMP This part replaces 86-6030. Price: $2,799.05 |
| 14 |
522599003 |
ADAPTER This part replaces 522599001. Price: $8.99 |
| 14 |
59-8540 |
COUPLING Price: $240.01 |
| 15 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 15 |
69-2200 |
O-RING This part replaces 86-6040. Price: $17.77 |
| 16 |
522459702 |
STOP, CLUTCH BLK Price: $27.99 |
| 16 |
86-6050 |
PLUG Price: $12.09 |
| 17 |
59-8570 |
SEAL Price: $45.56 |
| 17 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 18 |
59-8580 |
RING-RETAINING Price: $10.21 |
| 18 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 19 |
874780528 |
SCREW This part replaces 539990669. Price: $4.99 |
| 20 |
525295102 |
BRACKET MUFFLER, BLK Price: $17.99 |
| 21 |
539912757 |
KEY, 1/4 SQ X 1 1/4 Price: $3.99 |
| 22 |
539108199 |
EXHAUST GASKET - KAW Price: $6.99 |
| 23 |
539105897 |
MUFFLER KAWASAKI GEN II Price: $349.99 |
| 24 |
539991046 |
BOLT 5/16C X 2 1/2 Price: $3.99 |
| 25 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 26 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
