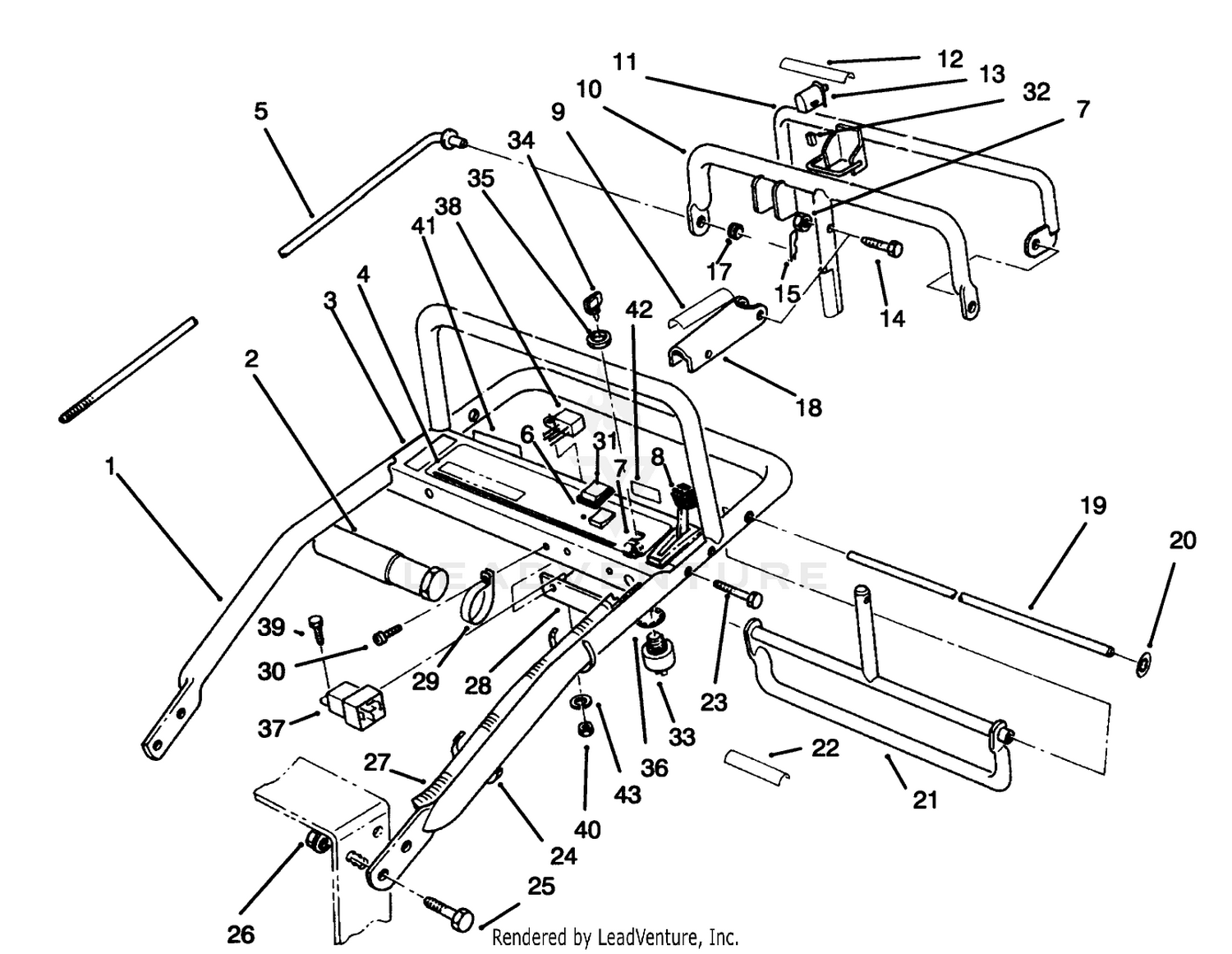

| Ref | Part Number | Description |
|---|
| 1 |
67-6440 |
Handle-Upper Price: Call Us |
| 2 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 3 |
82-2180 |
Panel-Control Price: Call Us |
| 4 |
82-7730 |
DECAL-CONTROL PANEL Price: Call Us |
| 5 |
82-7632 |
ROD-CONTROL Price: $42.01 |
| 6 |
121-8032 |
SWITCH SERVICE KIT This part replaces 82-2300. Price: $31.73 |
| 7 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 8 |
74-0630 |
CONTROL-THROTTLE Price: $69.48 |
| 9 |
52-2010 |
DECAL-LEVER, PARKING Price: $3.36 |
| 10 |
82-7690-03 |
BAR-CONTROL This part replaces 82-7690. Price: $159.30 |
| 11 |
82-7680-03 |
BAIL This part replaces 82-7680. Price: $97.99 |
| 12 |
82-2290 |
DECAL Price: $7.68 |
| 13 |
82-2190 |
SWITCH-BAIL Price: $13.99 |
| 14 |
32105-1 |
SCREW-SHH Price: $3.19 |
| 15 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 17 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 18 |
51-4850-03 |
LEVER-BRAKE, PARKING This part replaces 51-4850. Price: $25.10 |
| 19 |
74-0470 |
PIVOT ROD Price: $30.28 |
| 20 |
32151-80 |
NUT-PUSH-ON, CIRCULAR Price: $1.00 |
| 21 |
74-0380 |
Control Pivot Price: Call Us |
| 22 |
82-2280 |
DECAL Price: $6.46 |
| 23 |
32105-14 |
SCREW-SHH Price: $3.19 |
| 24 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 25 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 26 |
32128-21 |
NUT-HF Price: $0.39 |
| 27 |
82-2260 |
WIRE HARNESS Price: Call Us |
| 28 |
93-1187-03 |
PANEL-BOTTOM This part replaces 57-5811. Price: $31.72 |
| 29 |
2412-120 |
CLAMP-R Price: $6.49 |
| 30 |
32144-19 |
SCREW-SHWH Price: $0.89 |
| 31 |
82-3820 |
BOOT-SWITCH Price: $7.71 |
| 32 |
218-595 |
CONNECTOR-BODY Price: $6.46 |
| 33 |
29-5560 |
SWITCH-ON / OFF Price: $15.99 |
| 34 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 35 |
218-461 |
NUT-HH Price: $2.50 |
| 36 |
3254-5 |
WASHER-LOCK Price: $0.49 |
| 37 |
63-7590 |
RELAY Price: $78.15 |
| 38 |
86-7910 |
Module Price: Call Us |
| 39 |
321-2 |
SCREW-HH Price: $2.79 |
| 40 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 41 |
71-1280 |
DECAL-INSTRUCTION, SAFETY Price: $19.73 |
| 42 |
65-3090 |
DECAL-INSTRUCTION Price: $8.05 |
