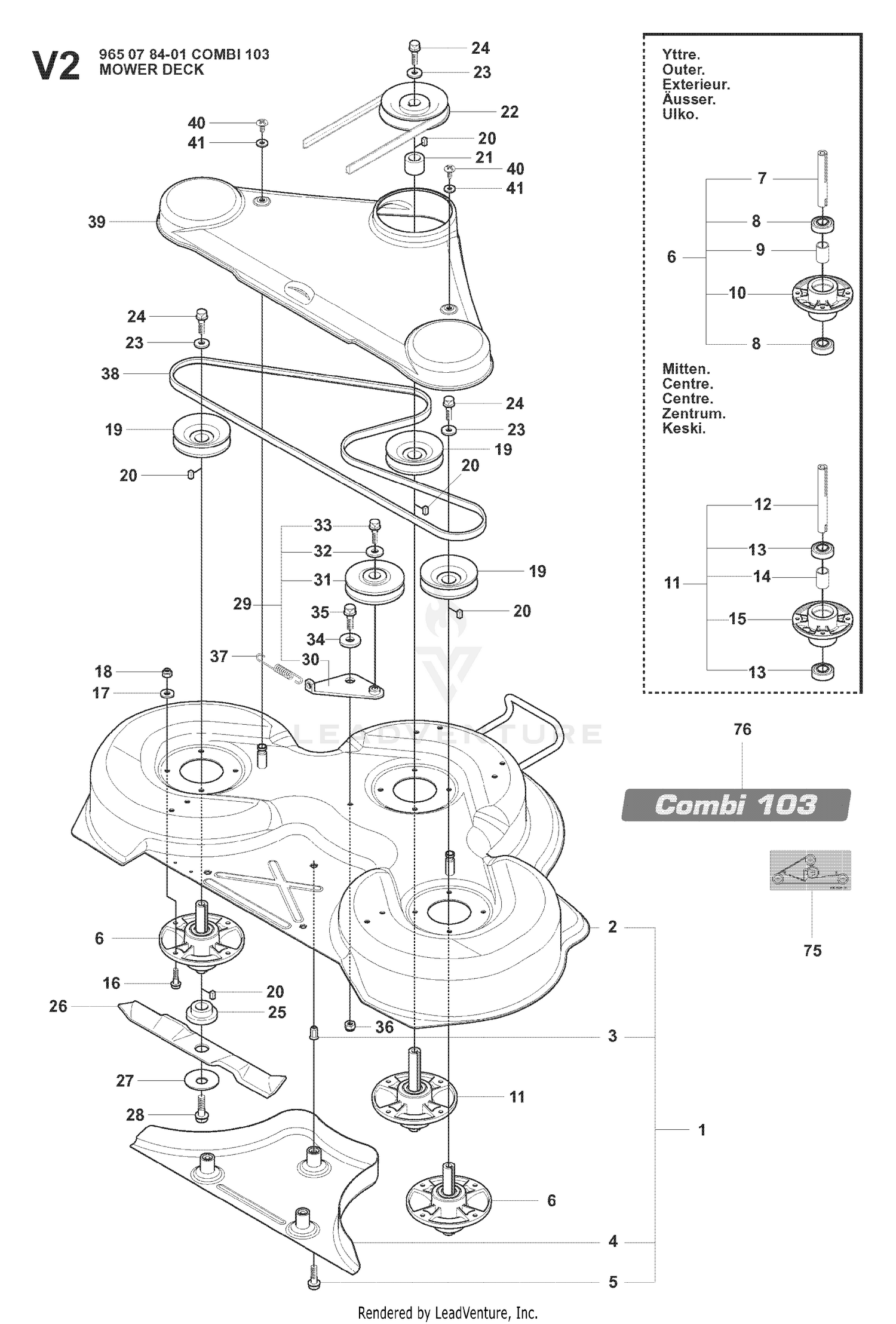

MOWER DECK / CUTTING DECK 5
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-4752 | CASE-GEAR, BEVEL Price: $237.26 |
| 1 | 544112903 | CUTTING DECK Price: $349.99 |
| 2 | 110-4754 | SEAL-OIL Price: $10.36 |
| 2 | 544112801 | CUTTING DECK ASSY Price: $318.99 |
| 3 | 104-2378 | BUSHING Price: $40.73 |
| 3 | 506916201 | NUT Price: $4.99 |
| 4 | 106-1069 | O-RING Price: $5.20 |
| 4 | 544449201 | PLUG Price: $64.99 |
| 5 | 104-2373 | KNUCKLE Price: $58.69 |
| 5 | 506570104 | BOLT Price: $4.99 |
| 6 | 104-2374 | BOLT Price: $6.33 |
| 6 | 576384102 | BLADE HOUSING ASSY This part replaces 544065901. Price: $79.99 |
| 7 | 100-3768 | LH STEERING ARM ASM Price: $207.28 |
| 7 | 544067902 | SHAFT Price: $37.99 |
| 8 | 100-3766 | RH STEERING ARM ASM Price: $207.28 |
| 8 | 738230434 | BEARING Price: $17.99 |
| 9 | 544068001 | SPACER Price: $11.99 |
| 10 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 10 | 95-7547 | SHIM 0.1 Price: $2.53 |
| 10 | 95-7548 | SHIM 0.2 Price: $3.52 |
| 10 | 95-7549 | SHIM 0.3 Price: $3.82 |
| 11 | 576384101 | BLADE HOUSING ASSY This part replaces 544065902. Price: $84.99 |
| 11 | 99-7597 | PIN-DOWEL Price: $3.74 |
| 12 | 104-2375 | BOLT Price: $18.54 |
| 12 | 544067901 | SHAFT Price: $39.99 |
| 13 | 738230434 | BEARING Price: $17.99 |
| 13 | 99-7599 | BOLT Price: $3.17 |
| 14 | 544068001 | SPACER Price: $11.99 |
| 14 | 99-7525 | STUD Price: $7.03 |
| 15 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 15 | 99-7526 | NUT Price: $1.29 |
| 16 | 535423801 | BOLT Price: $4.99 |
| 16 | 99-7527 | WASHER-SPRING Price: $1.02 |
| 17 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 18 | 106-1141 | STEERING TIE ROD ASM Price: $642.02 |
| 18 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 19 | 506922101 | PULLEY Price: $29.99 |
| 20 | 506533501 | KEY Price: $3.99 |
| 21 | 544068002 | SPACER Price: $9.99 |
| 22 | 506778601 | PULLEY Price: $49.99 |
| 23 | 734117441 | WASHER Price: $3.99 |
| 24 | 544114101 | SCREW Price: $3.99 |
| 25 | 535504202 | ADAPTER Price: $19.99 |
| 26 | 504188210 | BLADE Price: $27.99 |
| 27 | 588145601 | WASHER This part replaces 506792301. Price: $6.99 |
| 28 | 544114101 | SCREW Price: $3.99 |
| 29 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 30 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 31 | 506532701 | PULLEY Price: $39.99 |
| 32 | 734116441 | SPACER Price: $3.99 |
| 33 | 506558302 | BOLT Price: $3.99 |
| 34 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 35 | 725245171 | SCREW Price: $2.08 |
| 36 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 37 | 506533101 | SPRING Price: $9.99 |
| 38 | 589530601 | BELT Price: $54.99 |
| 40 | 506982601 | SCREW Price: $5.99 |
| 41 | 506559701 | WASHER Price: $4.99 |
| 75 | 506789701 | Decal Price: $21.55 |
| 76 | 544238103 | DECAL Price: $4.99 |
