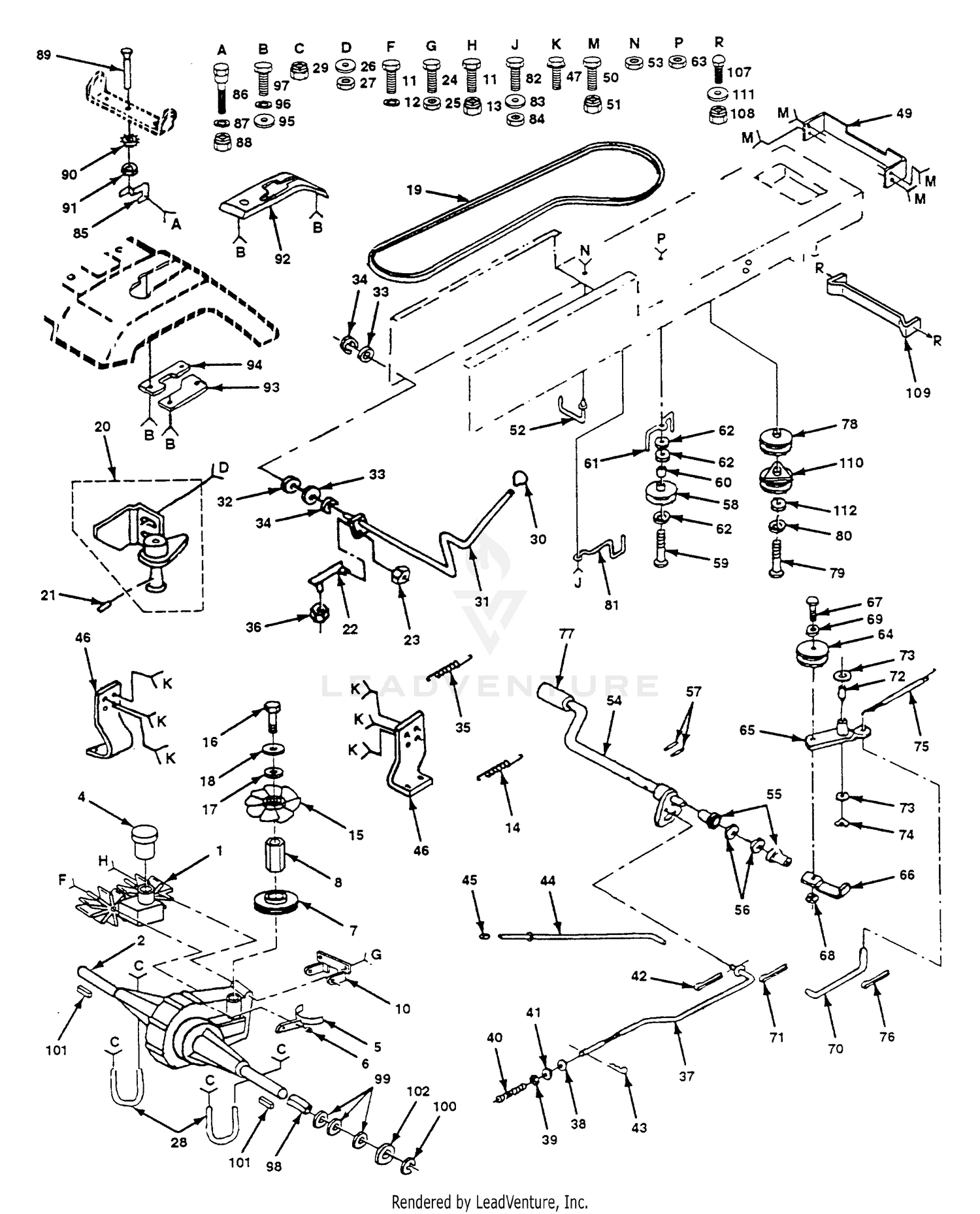

| Ref | Part Number | Description |
|---|
| 1 |
532121430 |
PUMP ASM COMP Price: $809.77 |
| 2 |
532121431 |
TRANSAXLE ASSY Price: $712.56 |
| 4 |
506774701 |
CONTAINER This part replaces 532121323. Price: $51.99 |
| 5 |
532126581 |
GUARD ASS'Y, BELT Price: $7.99 |
| 6 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 7 |
532126579 |
PULLEY, TRANSAXLE Price: $23.12 |
| 8 |
532121211 |
STANDOFF Price: $13.99 |
| 10 |
532121188 |
BRACKET Price: $4.42 |
| 11 |
874780580 |
BOLT.FIN.HEX.5/16-18 This part replaces 874780572. Price: $4.99 |
| 12 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 13 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 14 |
532146682 |
SPRING,BRAKE RETURN This part replaces 532110422. Price: $5.99 |
| 15 |
532126578 |
FAN, HYDRO Price: $11.66 |
| 16 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 17 |
819092016 |
WASHER Price: $5.99 |
| 18 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 19 |
532137589 |
V-BELT Price: $31.52 |
| 20 |
532126912 |
FRICTION, PACK ASS'Y Price: $35.27 |
| 21 |
532126655 |
PIN, ROLL METRIC Price: $2.99 |
| 22 |
532137328 |
ROD, TIE Price: $26.38 |
| 23 |
873040400 |
Nut, Hex, Flange 1/4-28 Unf Price: $3.99 |
| 24 |
874760612 |
BOLT Price: $3.99 |
| 25 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 26 |
819131216 |
Washer 13/32 X 3/4 X 16 Ja Price: $2.99 |
| 27 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 28 |
532121189 |
U BOLT Price: $2.38 |
| 29 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 30 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $8.99 |
| 31 |
532126592 |
LEVER, CONTROL Price: $17.96 |
| 32 |
532126590 |
BUSHING, PIVOT Price: $3.08 |
| 33 |
532126591 |
WASHER, SHIM Price: $2.99 |
| 34 |
812000003 |
E-RING Price: $4.99 |
| 35 |
532126910 |
SPRING, EXTENTION Price: $3.99 |
| 36 |
873040400 |
Nut, Hex, Flange 1/4-28 Unf Price: $3.99 |
| 37 |
532137630 |
ROD, BRAKE Price: $12.56 |
| 38 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 39 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 40 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 41 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 42 |
532004921 |
COTTER PIN This part replaces 532124961. Price: $4.99 |
| 43 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 44 |
532133261 |
BRAKE PARK ROD Price: $4.99 |
| 45 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 46 |
532136922 |
BRACKET, MTG Price: $50.48 |
| 47 |
817000616 |
SCREW 3/8-16X1 This part replaces 817490616. Price: $5.99 |
| 49 |
532138307 |
BRACKET, MOUNTING Price: $7.39 |
| 50 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
532126577 |
KEEPER, CENTERSPAN Price: $2.74 |
| 53 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 54 |
532122424 |
SHAFT FOOT PEDAL Price: $21.56 |
| 55 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 56 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 57 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 58 |
532123674 |
PULLEY.IDLER.FLAT Price: $24.99 |
| 59 |
874760644 |
BOLT Price: $3.99 |
| 60 |
532124965 |
SPACER T Price: $3.99 |
| 61 |
532109070 |
BELT KEEPER LT NLA Price: $6.99 |
| 62 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 63 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 64 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 65 |
532123789 |
ARM IDLER Price: $13.07 |
| 66 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 67 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 68 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 69 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 70 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 71 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 72 |
532105706 |
BEARING LT (2 2) Price: $5.99 |
| 73 |
532110812 |
WASHER LT Price: $3.10 |
| 74 |
812000039 |
KLIP RING Price: $4.99 |
| 75 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 76 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 77 |
532123533 |
COVER, PEDAL (1 2) Price: $6.99 |
| 78 |
532140189 |
PULLEY CLU ELEC This part replaces 532136905. Price: $34.99 |
| 79 |
747810110 |
This part replaces 532125120. Price: $3.71 |
| 80 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 81 |
532129921 |
KEEPER, BELT Price: $3.99 |
| 82 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 83 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 84 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 85 |
532126575 |
ARM, BYPASS CONTROL Price: $5.46 |
| 86 |
532007605 |
BOLT This part replaces 532124815. Price: $4.99 |
| 87 |
532110739 |
WASHER T Price: $3.99 |
| 88 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 89 |
532133836 |
CONTROL BY PASS Price: $16.63 |
| 90 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 91 |
873610600 |
NUT Price: $2.99 |
| 92 |
532126600 |
CONSOLE, SHIFT FEN Price: $25.05 |
| 93 |
532126597 |
PLATE, NEUTRAL RH Price: $5.46 |
| 94 |
532126598 |
PLATE, NEUTRAL LH Price: $2.38 |
| 95 |
596204201 |
Washers This part replaces 819091216. Price: $2.99 |
| 96 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 97 |
596437001 |
Screws This part replaces 874760408. Price: $2.99 |
| 98 |
532121199 |
SPACER SPLIT Price: $3.12 |
| 99 |
532121749 |
WASHER Price: $2.99 |
| 100 |
812000001 |
E-RING LT Price: $3.99 |
| 101 |
532123583 |
SQUARE KEY Price: $3.99 |
| 102 |
532121748 |
WASHER Price: $3.99 |
| 107 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 108 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 109 |
532137141 |
BRACKET ASM MTG Price: $3.99 |
| 110 |
532137140 |
CLUTCH.ELECT.CVX.105 FT/LB. Price: $299.99 |
| 111 |
596039901 |
Washers This part replaces 819111012. Price: $2.99 |
