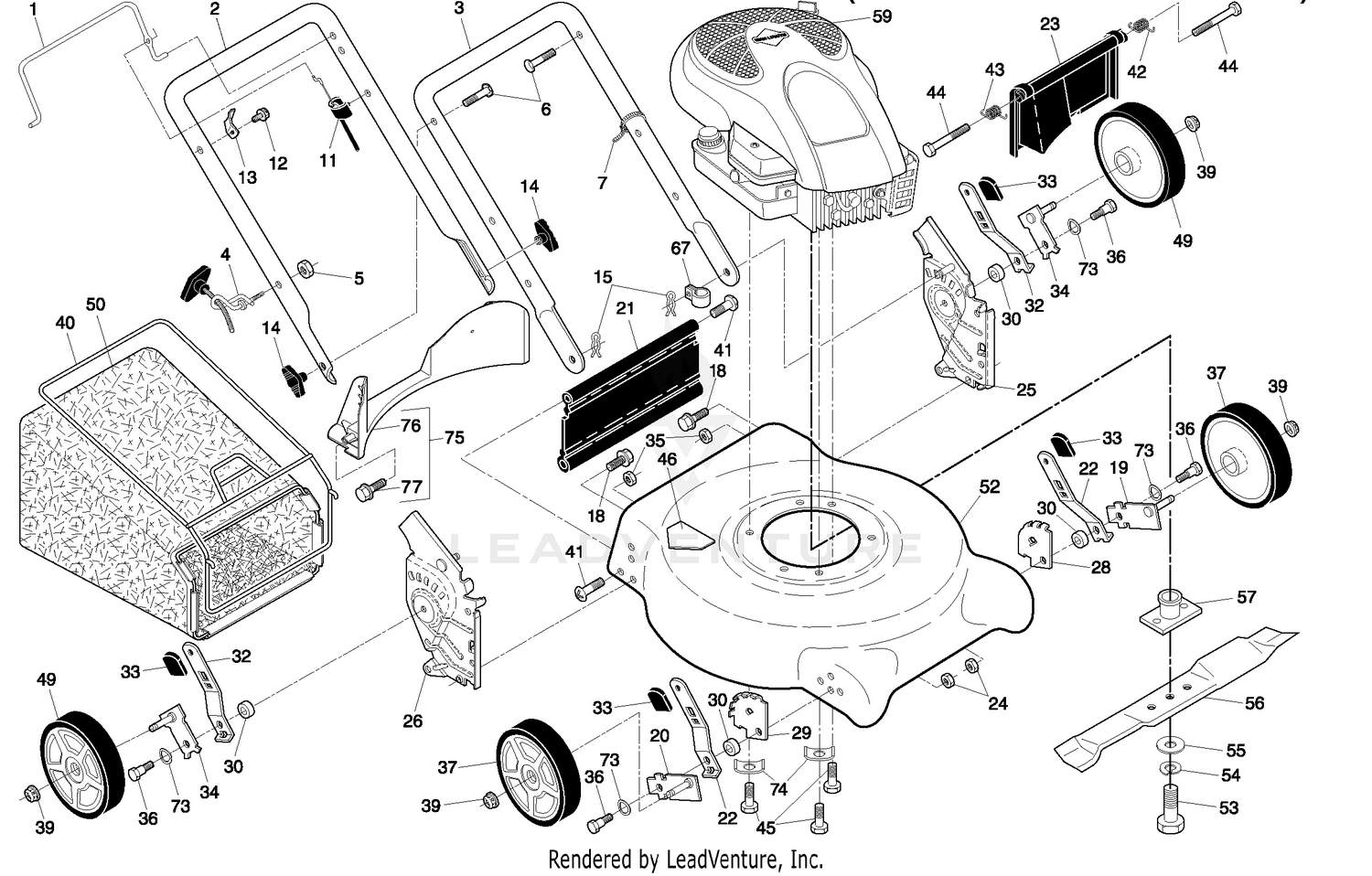

| Ref | Part Number | Description |
|---|
| 1 |
194177X428 |
Control Bar Price: Call Us |
| 1 |
40-6410 |
DISCONTINUED X-REF Price: Call Us |
| 2 |
194179X479 |
Upper Handle Price: Call Us |
| 2 |
94-8793 |
ADAPT Price: $21.27 |
| 3 |
169708X479 |
Lower Handle Price: Call Us |
| 3 |
92-8531 |
BOOT-SWITCH Price: $24.27 |
| 4 |
194788 |
Rope Guide Price: Call Us |
| 4 |
94-7083 |
GAUGE Price: $130.94 |
| 5 |
132004 |
Nut, Hex 1/4-20 Price: Call Us |
| 5 |
94-7290 |
PLUG-HOLE Price: $0.88 |
| 6 |
191574 |
Handle Bolt Price: Call Us |
| 6 |
42610 |
VOLTMETER Price: $114.72 |
| 7 |
42609 |
DISCONTINUED Price: Call Us |
| 7 |
664-26 |
Wire Tie Price: Call Us |
| 8 |
107-1570 |
TEMPERATURE GAUGE KIT This part replaces 42608. Price: $141.04 |
| 9 |
120-2244 |
HOURMETER This part replaces 66-2950. Price: $48.06 |
| 10 |
44-2212 |
AMBER INDICATOR LIGHT ASM Price: $72.17 |
| 11 |
183281 |
Engine Zone Control Cable Price: Call Us |
| 11 |
87-3790 |
DISCONTINUED Price: Call Us |
| 12 |
41230 |
R-Clamp Price: Call Us |
| 12 |
750634 |
Hex Washer Head Screw Price: Call Us |
| 13 |
108-3292 |
KEY SWITCH This part replaces 42607. Price: $80.97 |
| 13 |
86899X004 |
Up-Stop Bracket Price: Call Us |
| 14 |
189713X428 |
Knob, Handle Price: Call Us |
| 14 |
43-6290 |
SWITCH Price: $43.92 |
| 15 |
30953 |
SWITCH - VALVE Price: $33.16 |
| 15 |
51793 |
Hairpin Cotter Price: Call Us |
| 16 |
92-0374 |
WIRE HARNESS Price: $132.19 |
| 17 |
94-7079 |
SOLENOID-ACCESSORY Price: $145.88 |
| 18 |
17600406 |
Screw Price: Call Us |
| 18 |
92-0034 |
BOOT-TERMINAL Price: $5.80 |
| 19 |
401174X004 |
Axle Arm Assembly, Front, LH Price: Call Us |
| 19 |
41187 |
BOOT-TERMINAL Price: $3.57 |
| 20 |
401175X004 |
Axle Arm Assembly, Front, RH Price: Call Us |
| 20 |
94-7092 |
CABLE-BATTERY, POSITIVE Price: $37.57 |
| 21 |
3217-5 |
NUT-HEX This part replaces 22-11-AJD. Price: $0.25 |
| 21 |
413160 |
Rear Skirt Price: Call Us |
| 22 |
3253-3 |
WASHER-LOCK This part replaces 23-9-GD. Price: $0.31 |
| 22 |
401621X004 |
Selector Spring, Front Price: Call Us |
| 23 |
32144-10 |
SCREW-HWH This part replaces 34-140-AMVD. Price: $4.29 |
| 23 |
401814X428 |
Rear Door Assembly Price: Call Us |
| 24 |
166785 |
Locknut, Hex, Flanged 5/16-18 Price: Call Us |
| 24 |
42863 |
STRIP-JUMPER Price: $2.90 |
| 25 |
410387X479 |
Handle Bracket Assembly, LH Price: Call Us |
| 25 |
94-7080 |
DISCONTINUED Price: Call Us |
| 26 |
410388X479 |
Handle Bracket Assembly, RH Price: Call Us |
| 26 |
42862 |
BLOCK-TERMINAL, GROUND Price: $19.58 |
| 27 |
32104-4 |
SCREW This part replaces 34-99-AMVD. Price: $0.47 |
| 28 |
407500X005 |
Wheel Adjusting Bracket, Front, LH Price: Call Us |
| 29 |
407499X005 |
Wheel Adjusting Bracket, Front, RH Price: Call Us |
| 30 |
401629 |
Spacer Price: Call Us |
| 32 |
401623X004 |
Selector Spring, Rear Price: Call Us |
| 33 |
87877 |
Selector Knob Price: Call Us |
| 34 |
401173X004 |
Axle Arm Assembly, Rear, LH Price: Call Us |
| 35 |
73930500 |
Locknut, Hex 5/16-18 Price: Call Us |
| 36 |
401638 |
Shoulder Bolt 5/16-18 Price: Call Us |
| 37 |
193931X427 |
Wheel & Tire Assembly, Front, 7" Price: Call Us |
| 39 |
409148 |
Flanged Locknut, Hex Price: Call Us |
| 40 |
401808 |
Frame, Grassbag Price: Call Us |
| 41 |
88652 |
Hinge Screw Price: Call Us |
| 42 |
405421 |
Spring, Rear Door, LH Price: Call Us |
| 43 |
405423 |
Spring, Rear Door, RH Price: Call Us |
| 44 |
184193 |
Door Bolt Price: Call Us |
| 45 |
150406 |
Hex Head Thread Rolling Screw 3/8-16 x 1 Price: Call Us |
| 46 |
404763 |
Danger Decal Price: Call Us |
| 49 |
193905X427 |
Wheel & Tire Assembly, Rear, 8" Price: Call Us |
| 50 |
402263 |
Grassbag Price: Call Us |
| 53 |
851084 |
Hex Head Screw 3/8-24 x 1-3/8 Grade 8 Price: Call Us |
| 54 |
850263 |
Helical Lockwasher Price: Call Us |
| 55 |
851074 |
Hardened Washer Price: Call Us |
| 57 |
193707 |
Blade Adapter Price: Call Us |
| 67 |
197991 |
Clip, Cable Price: Call Us |
| 73 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
| 74 |
851201X004 |
Washer, Special, Engine Price: Call Us |
| 75 |
413693 |
Kit, Rear Baffle Price: Call Us |
| 76 |
410589 |
Baffle, Rear Price: Call Us |
| 77 |
17411312 |
Screw, Rear Baffle Price: Call Us |
| 77 |
193732 |
Operator's Manual, English Price: Call Us |
| 77 |
193734 |
Operator's Manual, French Price: Call Us |
