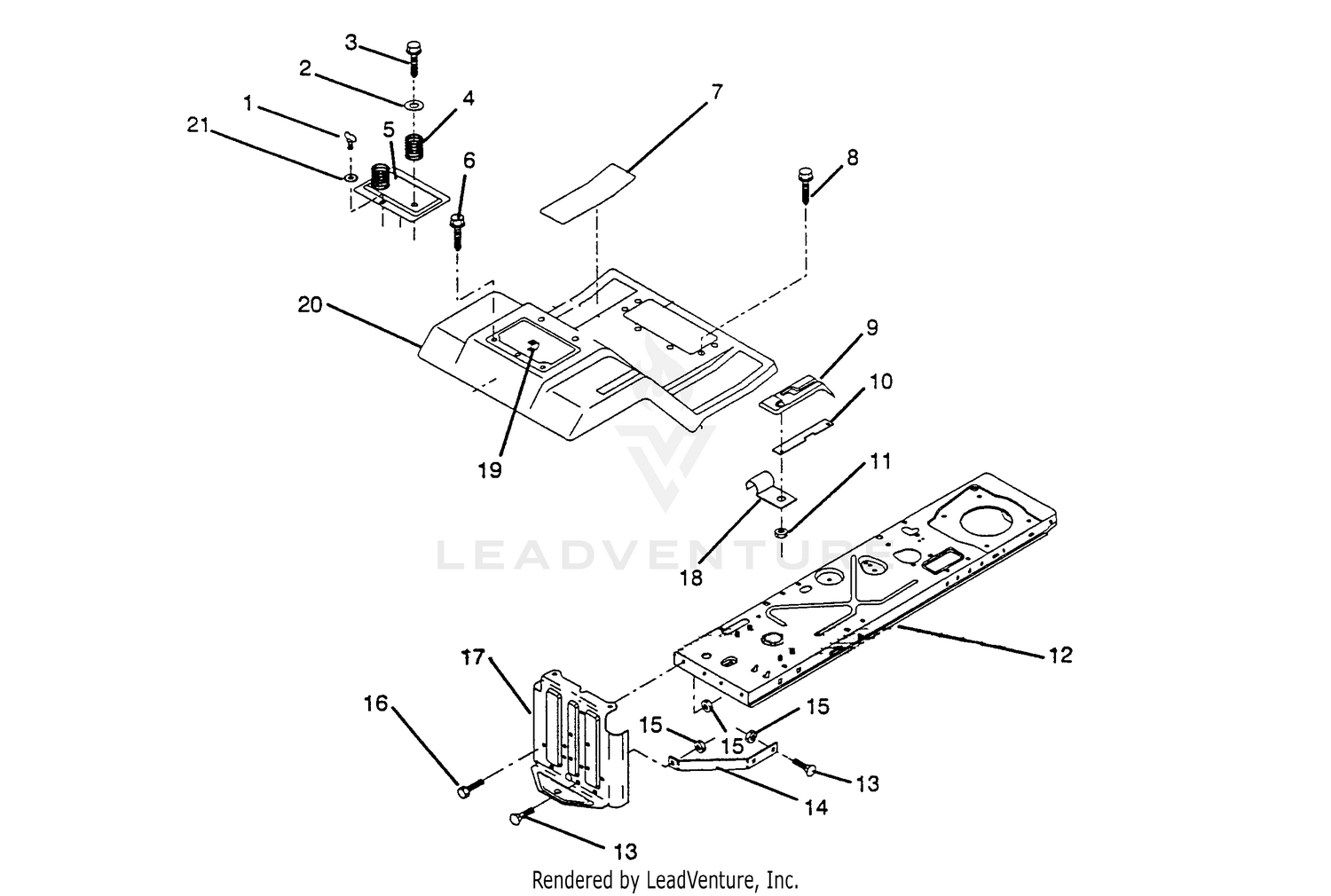

| Ref | Part Number | Description |
|---|
| 1 |
532123650 |
STUD 1/4 TURN Price: $4.99 |
| 2 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 3 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 4 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 5 |
532124971 |
Door, Fender Price: Call Us |
| 6 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 7 |
532126700 |
FOOTREST PAD Price: $30.08 |
| 8 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 9 |
532126995 |
CONSOLE,SHT CONTR Price: $14.99 |
| 010 |
112-7026 |
WHEEL BEARING CASE ASM This part replaces 98-9480. Price: $196.85 |
| 10 |
532124305 |
Bar, Shift Lock Price: Call Us |
| 11 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 12 |
532123645 |
FRAME ASS'Y Price: $41.33 |
| 13 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 14 |
532123379 |
BRACE,DRAWBAR Price: $8.48 |
| 15 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 16 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 17 |
532127880 |
DRAW BAR This part replaces 532121904. Price: $25.05 |
| 18 |
532126470 |
CLIP,INSULATOR Price: $3.99 |
| 19 |
532105839 |
RECEPTACLE LT Price: $3.99 |
| 020 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 20 |
532124970 |
FENDER/FOOTREST Price: $148.83 |
| 21 |
532105838 |
RETAINER LT Price: $4.99 |
| 030 |
131-6554 |
GASKET-CASE, BEARING This part replaces 98-9634. Price: $7.12 |
| 040 |
112-7046 |
COVER-CASE, BEARING This part replaces 98-9487. Price: $66.00 |
| 050 |
112-0180 |
SEAL-OIL This part replaces 98-9483. Price: $58.48 |
| 060 |
98-9635 |
GASKET-COVER, BEARING CASE Price: $12.61 |
| 070 |
98-9352 |
BOLT Price: $0.80 |
| 080 |
98-7568 |
BOLT Price: $0.84 |
| 090 |
115-4106 |
MAIN BEARING CASE ASM This part replaces 98-9606. Price: $189.84 |
| 100 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
| 532125690 |
DECAL |
Price: $2.42 532125690 |
| 532138269 |
DECAL |
OPER INSTRUCTION This part replaces 532123637. Price: $9.45 532138269 |
