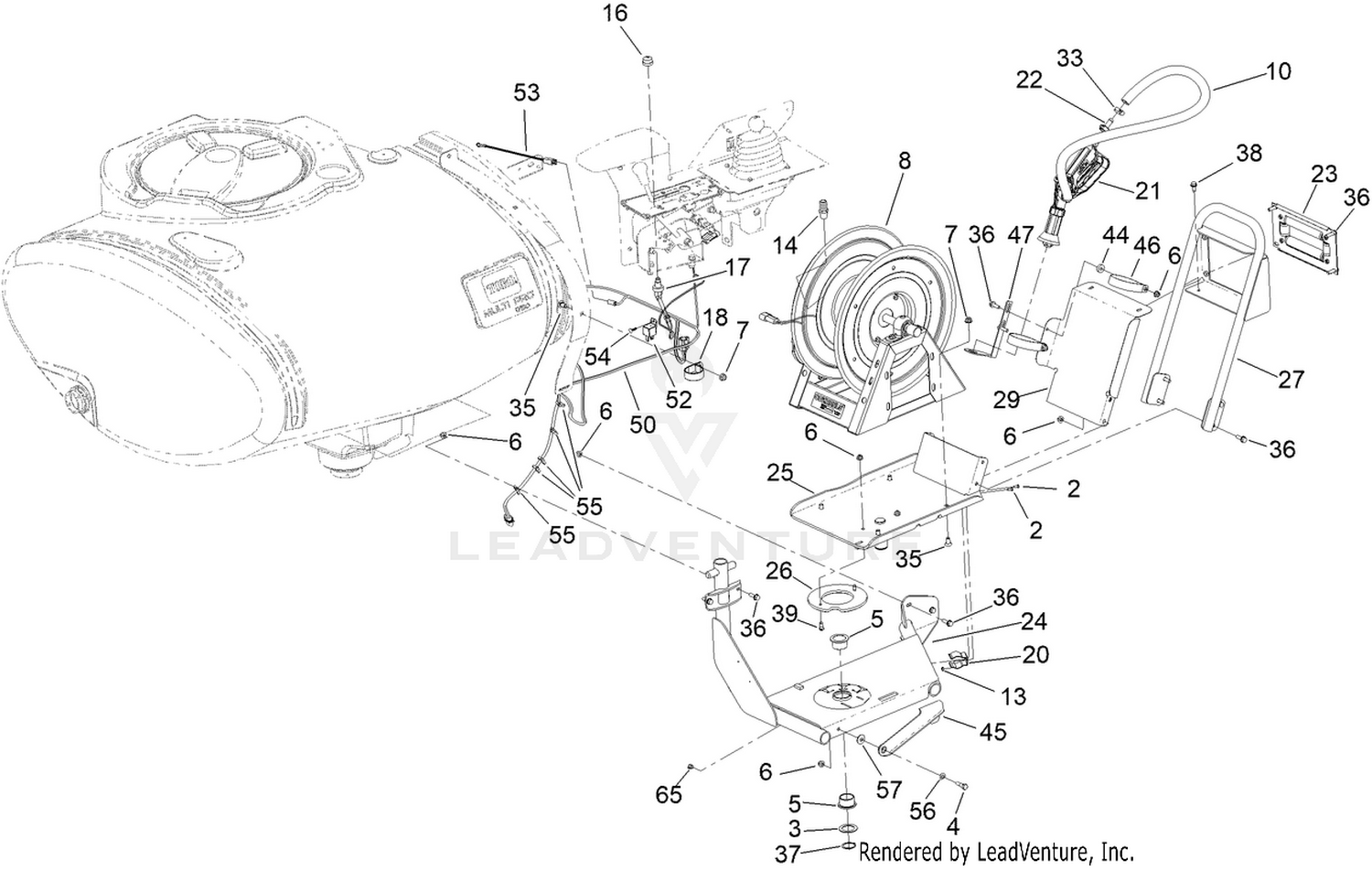

Electric Hose Reel Kit
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 1-807513 | BOLT-CARR Price: $1.14 |
| 3 | 62-2170 | WASHER-THRUST Price: $4.48 |
| 4 | 121-6991 | BOLT-SHOULDER Price: $31.12 |
| 5 | 93-4510 | BUSHING-CASTER Price: $6.97 |
| 6 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 8 | 127-3910 | HOSE REEL ASM Price: $4,356.54 |
| 10 | 107-8756 | HOSE-HOSE REEL Price: $619.03 |
| 13 | 110-3145 | NUT-LOCK Price: $0.69 |
| 14 | 110-5065 | HOSEBARB Price: $18.05 |
| 16 | 112-3313 | NUT-WEATHERPROOF Price: $5.23 |
| 17 | 112-3324 | SWITCH-HORN Price: $39.90 |
| 18 | 114-9566 | CLAMP-R Price: $2.78 |
| 20 | 119-4937 | CLIP-SPRING Price: $21.31 |
| 21 | 161-4158 | SPRAY WAND, DIA 2.2 MM NOZZLE Price: $174.64 |
| 22 | 121-4982 | HOSEBARB-SPRAY GUN Price: $13.59 |
| 23 | 121-4983 | BRACKET-ROLLER Price: $595.61 |
| 24 | 125-4172-03 | FRAME-HOSE REEL Price: $867.26 |
| 25 | 125-4177-03 | PIVOT-BASE Price: $336.58 |
| 26 | 125-7990 | SLIDE-DETENT Price: $118.51 |
| 27 | 125-8014-03 | HANDLE ASM Price: $262.23 |
| 29 | 125-8044-03 | SHIELD-MUD Price: $56.06 |
| 33 | 2412-36 | CLAMP-HOSE Price: $1.28 |
| 35 | 3231-21 | SCREW-CARR Price: $0.76 |
| 36 | 3234-29 | SCREW-HHF Price: $1.84 |
| 37 | 32120-84 | RING-SNAP, EXTERNAL Price: $0.61 |
| 38 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 39 | 121-9671 | SCREW-HSBH Price: $0.59 |
| 44 | 5-0652 | SPACER This part replaces 26-4840. Price: $5.35 |
| 45 | 127-3957 | LATCH Price: $76.03 |
| 46 | 120-8592 | CLAMP-R Price: $7.33 |
| 47 | 161-4160-03 | BRACKET-SPRAY GUN Price: $9.02 |
| 50 | 122-0159 | HARNESS-WIRE, HOSE REEL Price: $176.07 |
| 52 | 99-7435 | RELAY Price: $32.43 |
| 53 | 108-9455 | HARNESS-WIRE, FUSIBLE LINK Price: $13.09 |
| 54 | 125-8067 | PLUG-PLASTIC Price: $0.51 |
| 55 | 3290-379 | TIE-CABLE Price: $0.31 |
| 56 | 121-4605 | WASHER-SPRING Price: $3.63 |
| 57 | 3290-461 | WASHER-SPRING Price: $3.89 |
