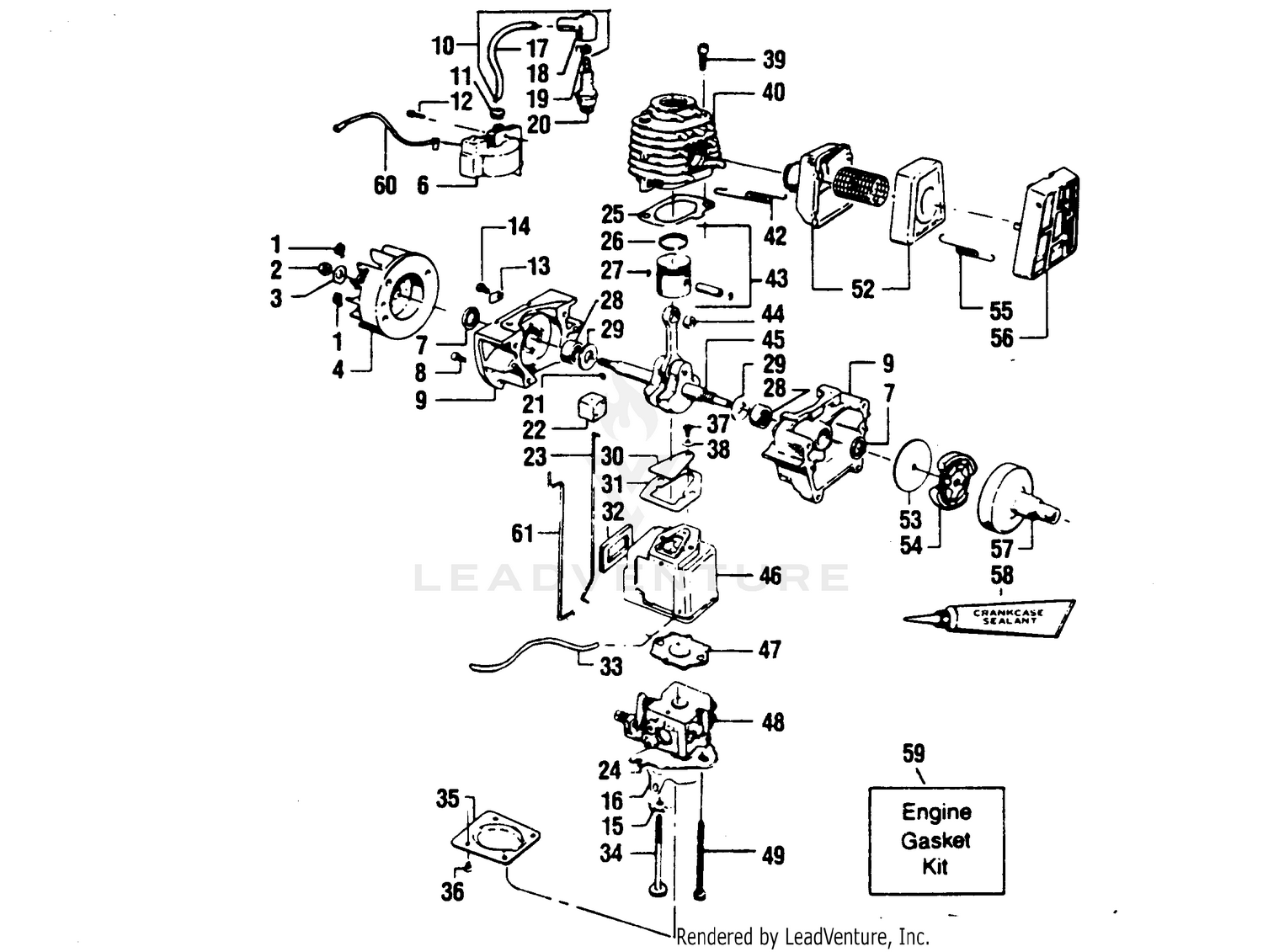

| Ref | Part Number | Description |
|---|
| 1 |
39-2130 |
RETAINER-SPRING Price: $23.51 |
| 1 |
530023817 |
Spring-Starter Dog This part replaces 530042059. Price: $1.99 |
| 2 |
39-2140 |
SPRING Price: $24.34 |
| 2 |
530626605 |
Flywheel-Nut Price: $1.99 |
| 3 |
33-4990 |
POPPET Price: $11.08 |
| 3 |
530015127 |
Flywheel Washer Price: $1.99 |
| 4 |
530039114 |
Flywheel Assembly (incl.#1) Price: Call Us |
| 6 |
530069181 |
Ignition Module Kit Price: $3.33 |
| 7 |
530019059 |
Crankcase Seal Price: $4.99 |
| 8 |
530015369 |
Screw-Crankcase Price: $0.04 |
| 9 |
530010757 |
Crankcase Assembly (Incl. #7, 28 & Qty. 4 of #8) Price: Call Us |
| 10 |
33-4960 |
DISCONTINUED Price: Call Us |
| 10 |
502039103 |
High Tension-Load Assembly (Incl. #17, 18 & 19) Price: $219.99 |
| 11 |
33-4950 |
DISCONTINUED Price: Call Us |
| 11 |
530024435 |
Grommet-Plug Wire Price: $1.99 |
| 12 |
530015816 |
Screw This part replaces 530015128. Price: $1.99 |
| 13 |
530024651 |
Choke Wire Clamp Price: $3.33 |
| 14 |
39-2080 |
TOW VALVE ASM This part replaces 39-2110. Price: $188.82 |
| 14 |
530015004 |
Screw Price: $1.99 |
| 15 |
530015254 |
Washer Price: $1.99 |
| 16 |
530024558 |
Choke Shutter Price: $2.99 |
| 17 |
32151-63 |
DISCONTINUED Price: Call Us |
| 17 |
530039082 |
High Tension Lead Wire Price: Call Us |
| 18 |
530003934 |
Spark Plug Boot Price: Call Us |
| 19 |
507475326 |
Spark Plug Boot This part replaces 530003933. Price: $3.99 |
| 20 |
530035008 |
Spark Plug (RCJ-8) Price: $3.33 |
| 21 |
530015126 |
Key-Flywheel Price: $1.99 |
| 23 |
530024902 |
Throttle Wire (Red) Price: $3.33 |
| 24 |
530026237 |
Guide Plate Price: $3.33 |
| 25 |
33-4880 |
DISCONTINUED Price: Call Us |
| 26 |
33-4870 |
DISCONTINUED Price: Call Us |
| 27 |
49-2910 |
DISCONTINUED This part replaces 33-5030. Price: Call Us |
| 27 |
530015162 |
Retainer-Wrist Pin Price: $1.99 |
| 28 |
530032029 |
Bearing-Crankcase Price: $7.99 |
| 29 |
33-3780 |
DISCONTINUED Price: Call Us |
| 29 |
530015351 |
Washer-Thrust-Crankcase Price: $3.99 |
| 30 |
32120-74 |
RING-SNAP Price: $0.54 |
| 30 |
530024438 |
Reed Valve Price: Call Us |
| 31 |
33-3760 |
DISCONTINUED Price: Call Us |
| 33 |
33-3750 |
RACE-INNER Price: $77.27 |
| 33 |
530069238 |
Line Kit Price: $3.33 |
| 34 |
252-95 |
BEARING-NEEDLE Price: $19.11 |
| 34 |
530015404 |
Screw Price: $2.99 |
| 35 |
530026029 |
Cover-Carburetor Case Price: $3.99 |
| 36 |
530015235 |
Screw-#6-18x9/16" Carburetor Case Cover Price: Call Us |
| 37 |
530015241 |
Screw-#5-19x5/16" Pan Hd. Reed Valve Price: $1.99 |
| 38 |
530023367 |
Washer-Reed Valve Screw Price: Call Us |
| 39 |
33-3770 |
DISCONTINUED Price: Call Us |
| 39 |
530015239 |
Screw-# 14-20x3/4" Hex Socket Hd. Cylinder Price: $1.99 |
| 40 |
32151-13 |
RING-RETAINING Price: $4.39 |
| 40 |
530012191 |
Cylinder Price: $3.33 |
| 42 |
33-3720 |
WASHER Price: $11.87 |
| 42 |
530036409 |
Muffler Spring This part replaces 530024903. Price: $1.99 |
| 43 |
32151-29 |
RING-RETAINING Price: $3.59 |
| 43 |
530069241 |
Piston Kit (Inc.26,27,Pin) Price: $44.99 |
| 44 |
252-71 |
WASHER-THRUST Price: $14.39 |
| 44 |
530032092 |
Bearing-Wrist Pin Price: $6.99 |
| 45 |
252-66 |
BEARING-THRUST Price: $10.61 |
| 45 |
530010844 |
Crankshaft & Rod Assemby (Inc.44) Price: $3.33 |
| 46 |
33-3730 |
DISCONTINUED Price: Call Us |
| 46 |
530024409 |
Carburetor Housing Price: $9.99 |
| 47 |
39-2060 |
DISCONTINUED Price: Call Us |
| 48 |
530035183 |
Carburetor Price: $65.89 |
| 49 |
530015379 |
Screw-# 10-24x1-7/8" Fil. Hd. Carburetor Price: $2.99 |
| 49 |
70-1270 |
DISCONTINUED This part replaces 39-2120. Price: Call Us |
| 52 |
530069243 |
Muffler Ass'y. Price: $3.33 |
| 53 |
530069196 |
Kit-Clutch Washer Price: $3.33 |
| 54 |
530069194 |
Kit-Clutch Assembly (Incl. Washer) Price: $17.99 |
| 55 |
530024932 |
Spring-Muffler Guard Price: $3.33 |
| 56 |
530024855 |
Guard-Muffler Price: $5.99 |
| 57 |
322-20 |
SCREW-HH Price: $1.79 |
| 57 |
530010797 |
Coupling & Bearing Assembly Price: $3.33 |
| 58 |
530030054 |
Sealent-Crankcase (Not Supplied with Unit) Price: $17.99 |
| 59 |
322-19 |
SCREW-HH Price: $5.99 |
| 59 |
530069219 |
Kit-Engine Gasket Price: $11.54 |
| 60 |
530024158 |
Lead Wire Switch Price: $4.99 |
