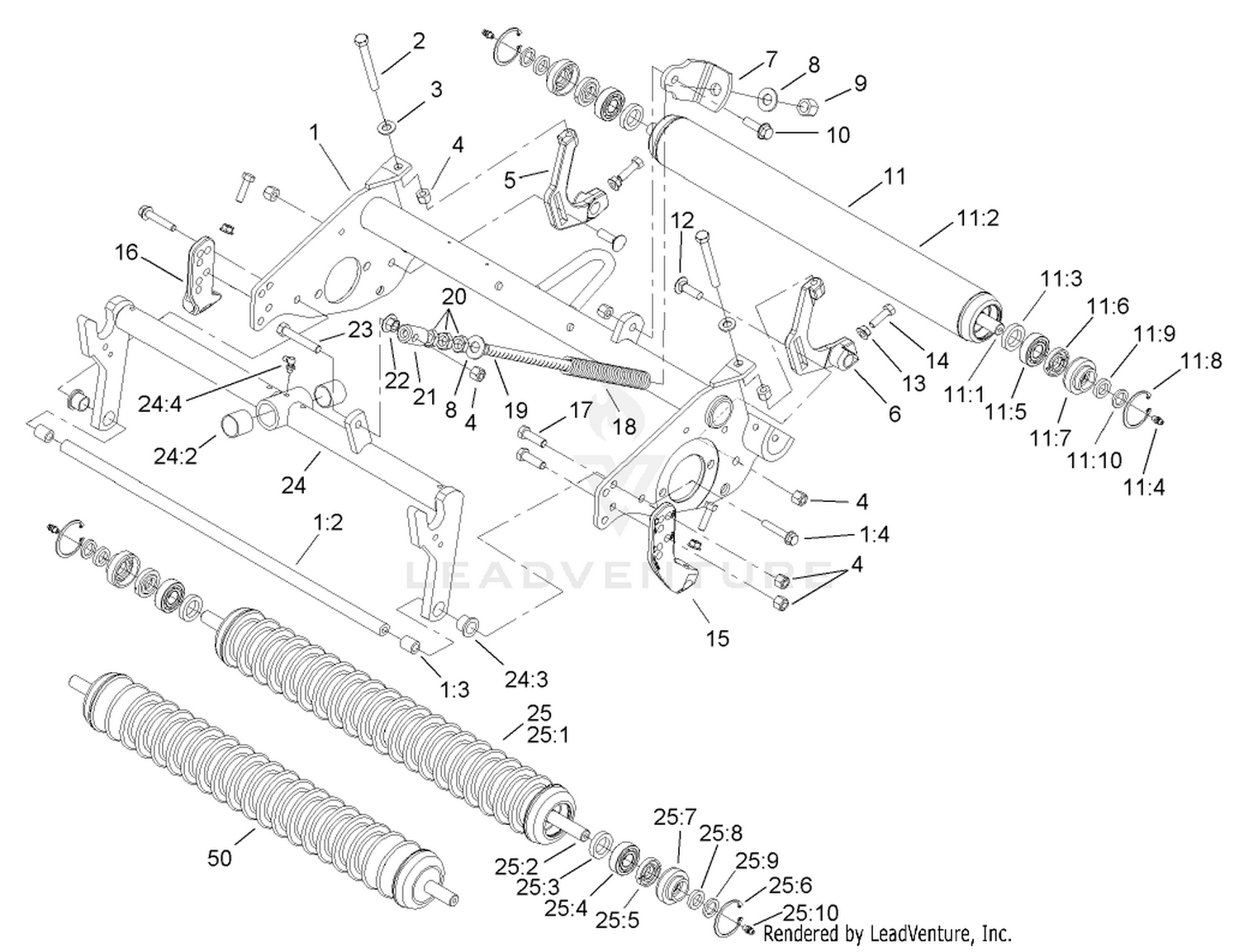

| Ref | Part Number | Description |
|---|
| 1 |
100-7140 |
REEL FRAME ASM Price: $681.13 |
| 2 |
323-49 |
BOLT-TAP Price: $6.75 |
| 3 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 4 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 5 |
100-7105 |
RH HOC ADJUSTMENT ASM Price: $43.65 |
| 6 |
100-7106 |
LH HOC ADJUSTMENT ASM Price: $48.50 |
| 7 |
104-3661 |
BRACKET-SPRING Price: $20.32 |
| 8 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 9 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 10 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 11 |
100-2536 |
ROLLER ASM Price: $399.21 |
| 12 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 13 |
32128-20 |
NUT-HF Price: $0.99 |
| 14 |
322-16 |
SCREW-HH Price: $3.39 |
| 15 |
104-3375-01 |
LH HOC BRACKET ASM Price: $62.76 |
| 16 |
104-3373-01 |
RH HOC BRACKET ASM Price: $62.76 |
| 17 |
323-7 |
SCREW-HH Price: $0.65 |
| 18 |
104-3394 |
SPRING-COMPRESSION Price: $12.54 |
| 19 |
104-3355 |
ROD-SPRING Price: $24.55 |
| 20 |
3218-5 |
NUT-JAM Price: $0.27 |
| 21 |
99-8662 |
TUBE-SPRING Price: $21.55 |
| 22 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 23 |
104-3396 |
SCREW-HH Price: $0.75 |
| 24 |
104-3357 |
CARRIER FRAME ASM Price: $338.25 |
| 25 |
100-7132 |
WIEHLE ROLLER ASM Price: $847.81 |
