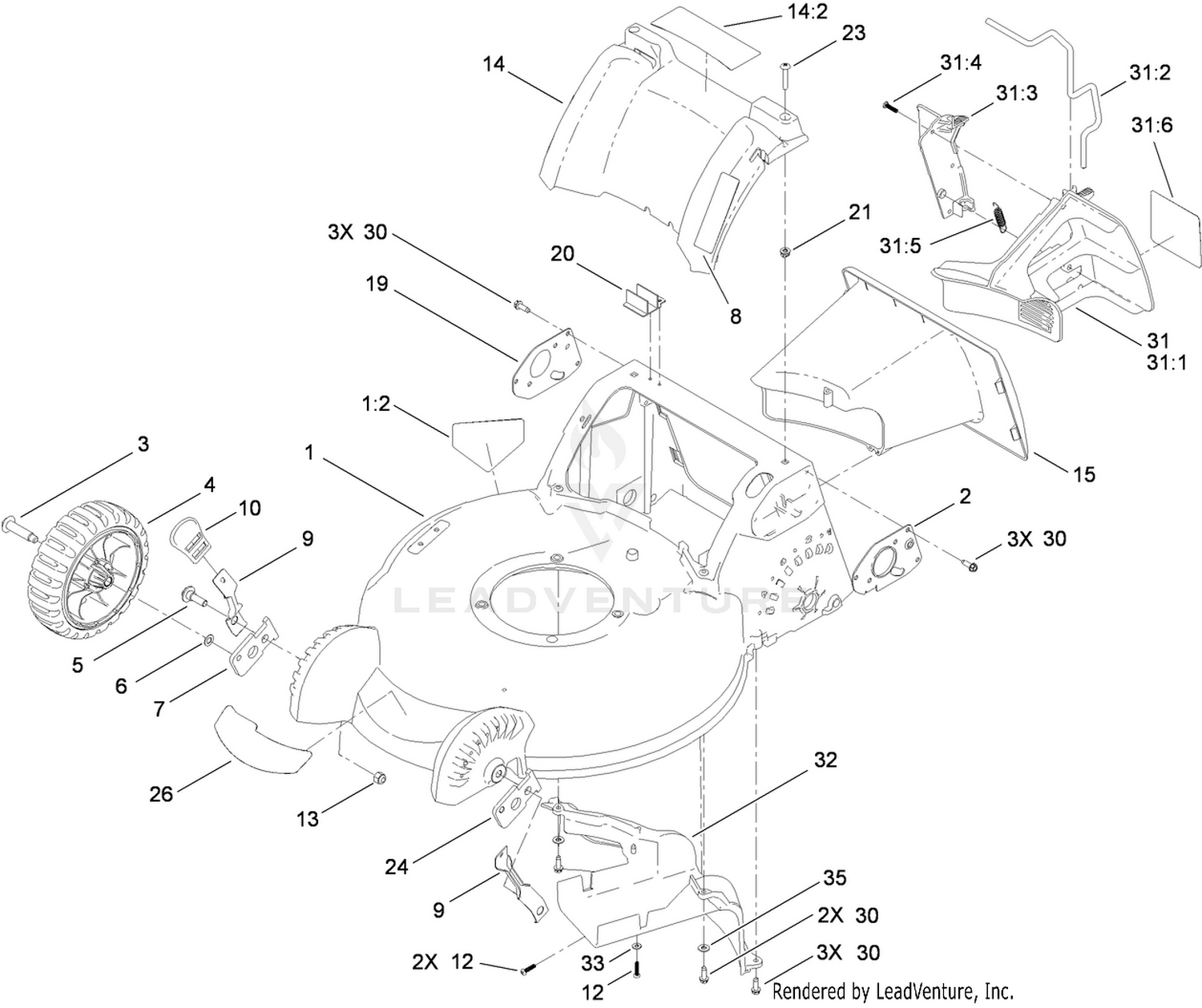

| Ref | Part Number | Description |
|---|
| 1 |
119-3781 |
HOUSING ASM Price: $227.99 |
| 2 |
110-9415-03 |
MOUNT-HANDLE, LH Price: $10.99 |
| 3 |
614650 |
BOLT-SHOULDER Price: $3.99 |
| 5 |
614672 |
SCREW-SHOULDER, HWH Price: $2.59 |
| 6 |
40-1940 |
WASHER Price: $1.59 |
| 7 |
110-9421 |
ARM-PIVOT, RH Price: $16.99 |
| 8 |
121-2370 |
DECAL-STOW, QUICK Price: Call Us |
| 9 |
110-9434 |
ARM-SPRING, FRONT Price: $9.99 |
| 10 |
110-0549 |
KNOB-HOC Price: $0.99 |
| 12 |
108-7476 |
SCREW-PLASTITE Price: $0.79 |
| 13 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 14 |
115-3177 |
REAR COVER ASM Price: $47.99 |
| 15 |
110-9455 |
TUNNEL Price: $41.99 |
| 19 |
110-9416-03 |
MOUNT-HANDLE, RH Price: $10.99 |
| 20 |
117-5905 |
MODULE-SWITCH Price: $62.99 |
| 21 |
94-1610 |
NUT-CLIP Price: $0.89 |
| 23 |
108-0965 |
SCREW-PTH Price: $1.29 |
| 24 |
110-9420 |
ARM-PIVOT, LH Price: $16.99 |
| 26 |
120-5233 |
DECAL-DECK Price: Call Us |
| 30 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 31 |
110-9468 |
MULCH PLUG ASM Price: $61.99 |
| 32 |
110-9423 |
BAFFLE-REAR Price: $25.99 |
| 33 |
3256-14 |
WASHER-FLAT Price: $0.39 |
