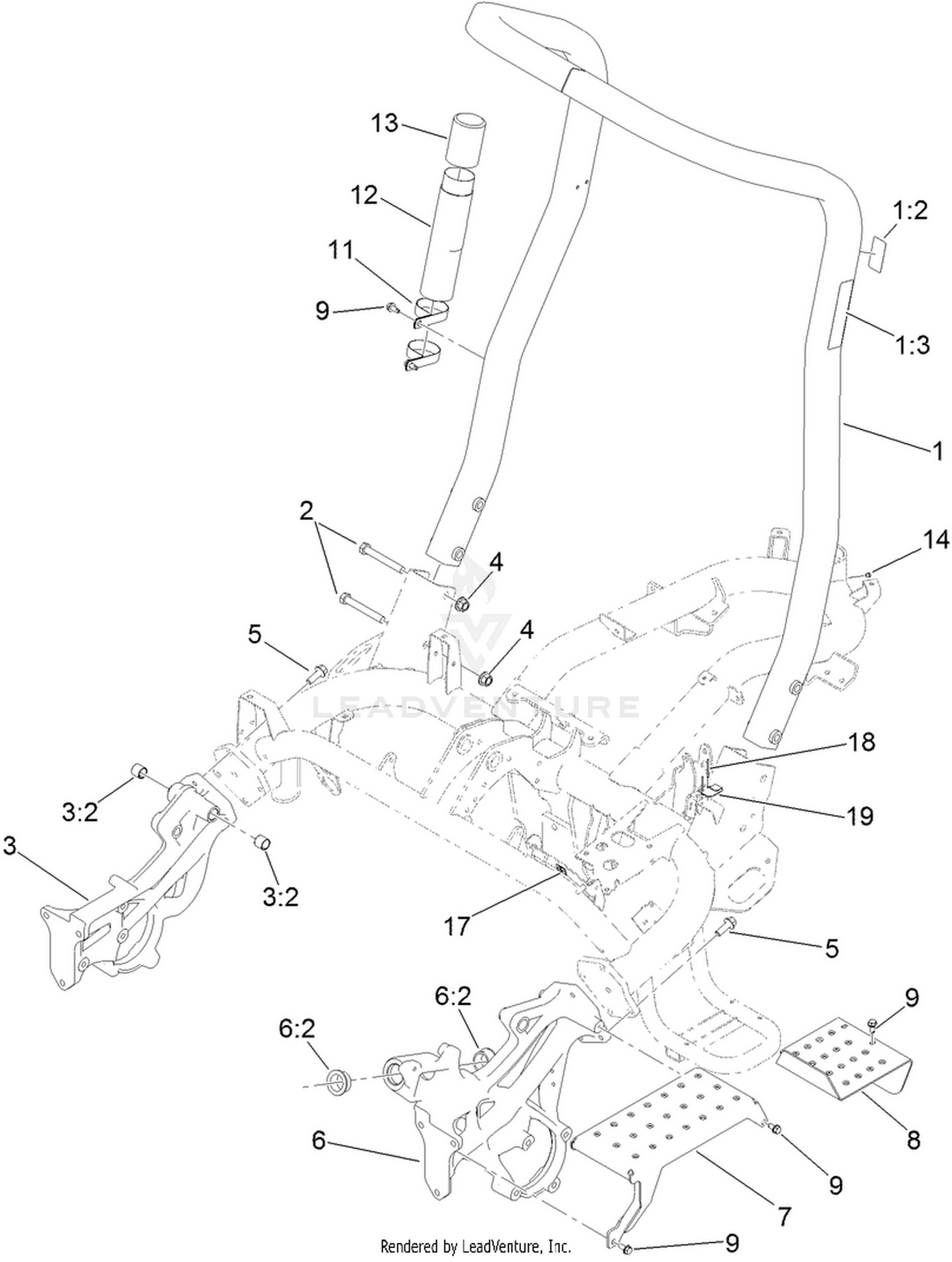

Roll-Over Protection System Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-8206 | ROPS ASSEMBLY Price: $542.02 |
| 2 | 325-35 | SCREW-HH Price: $2.37 |
| 3 | 117-9023 | CASTING-SIDE, RH Price: $473.66 |
| 4 | 99-5107 | NUT-LOCK Price: $1.77 |
| 5 | 117-9035 | SCREW-HHF Price: $1.83 |
| 6 | 117-9022 | CASTING-SIDE, LH Price: $473.66 |
| 7 | 117-9051-01 | STEP Price: $179.13 |
| 8 | 119-4468-01 | PLATE-STEP Price: $47.99 |
| 9 | 32104-32 | SCREW-HWH Price: $1.99 |
| 11 | 2412-133 | CLAMP-R Price: $3.19 |
| 12 | 104-7050 | TUBE-MANUAL Price: $8.76 |
| 13 | 104-7048 | CAP-HOUSING Price: $5.21 |
| 14 | 302-59 | PLUG-THREADED Price: $5.86 |
| 17 | 119-1730 | RECEPTACLE-CLIP, MINI Price: $2.10 |
| 18 | 3269-32 | RIVET-POP Price: $0.25 |
