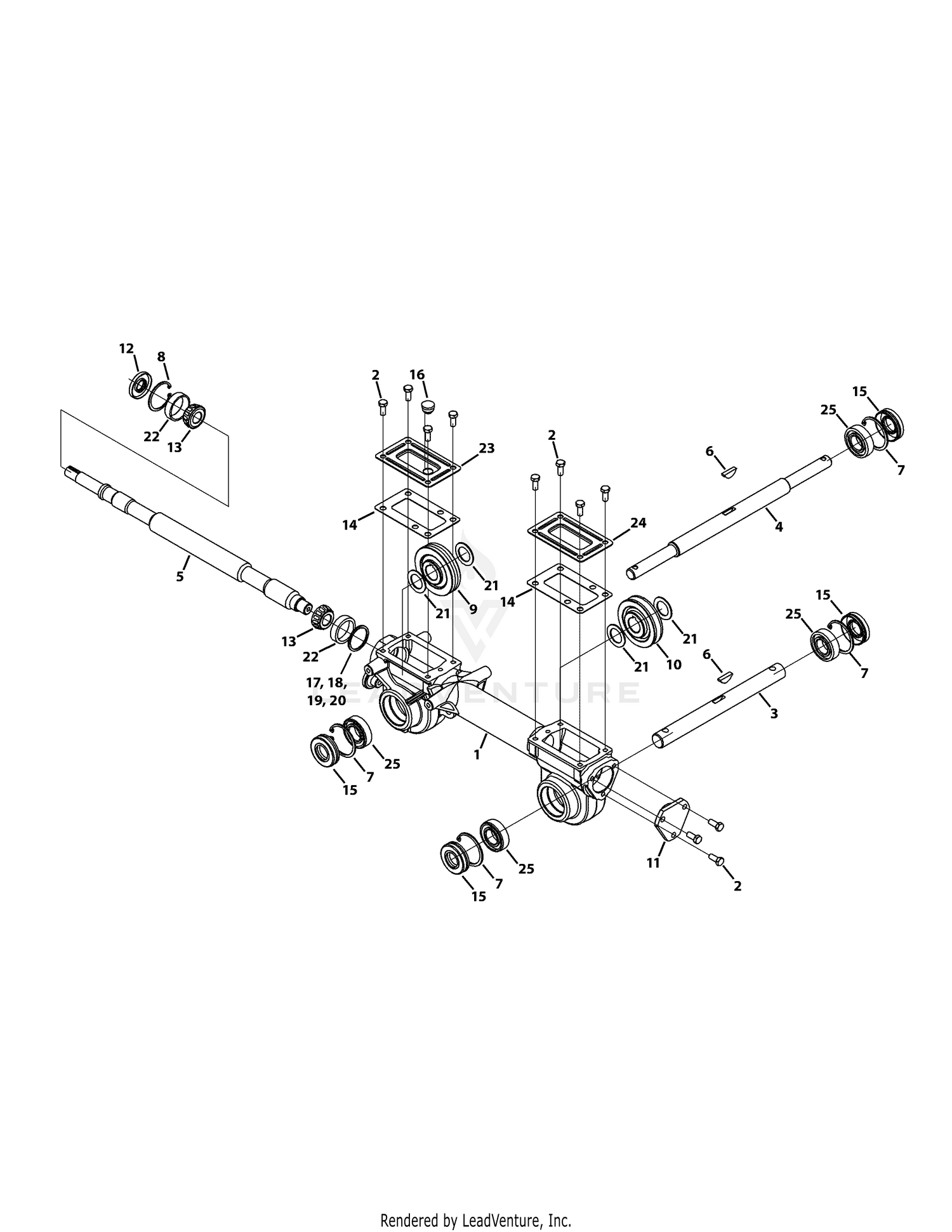

| Ref | Part Number | Description |
|---|
| 1 |
919-04202B |
Transmission Housing Price: $234.53 |
| 2 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 3 |
911-04844 |
Tiller Shaft Price: $74.00 |
| 4 |
911-04854 |
Wheel Shaft Price: $62.65 |
| 5 |
711-05035 |
CRT Drive Shaft Price: $86.08 |
| 6 |
714-04059 |
Key, 25 x 1062 Price: $5.94 |
| 7 |
716-0204 |
Retainer Ring Price: $5.94 |
| 8 |
716-04102 |
Retainer Ring Price: $3.85 |
| 9 |
917-04380 |
RH Gear Worm, 61T Price: $146.63 |
| 10 |
917-04381 |
LH Gear Worm, 30T Price: $128.03 |
| 11 |
918-04435 |
Bearing Cover Price: $20.18 |
| 12 |
921-04030 |
Oil Seal, 750 SHF x 1783 BORE Price: $11.33 |
| 13 |
941-04298 |
Cone Bearing Price: $14.84 |
| 14 |
921-04229 |
Gear Housing Gasket Price: $6.04 |
| 15 |
721-04232 |
Oil Seal, 100 SHF x 200 BORE Price: $14.26 |
| 16 |
721-04271 |
Rubber Oil Plug Price: $4.73 |
| 17 |
736-04305 |
Washer, Flat, 150 x 175 x 062 Price: $3.52 |
| 18 |
736-04306 |
Washer, Flat, 150 x 175 x 005 Price: $3.85 |
| 19 |
736-04307 |
Washer, Flat, 150 x 175 x 03 Price: $3.85 |
| 20 |
736-04308 |
Washer, Flat, 150 x 175 x 010 Price: $3.85 |
| 21 |
736-0745 |
Washer, Flat, 1010 x 156 x 060 Price: $11.28 |
| 22 |
941-04299 |
Cup Bearing Price: $6.01 |
| 23 |
786-04366 |
Tiller Transmission Cover Price: $18.44 |
| 24 |
786-04392-0637 |
TRANSMISSION COVER (POWDER BLACK) This part replaces 786-04392. Price: $17.06 |
