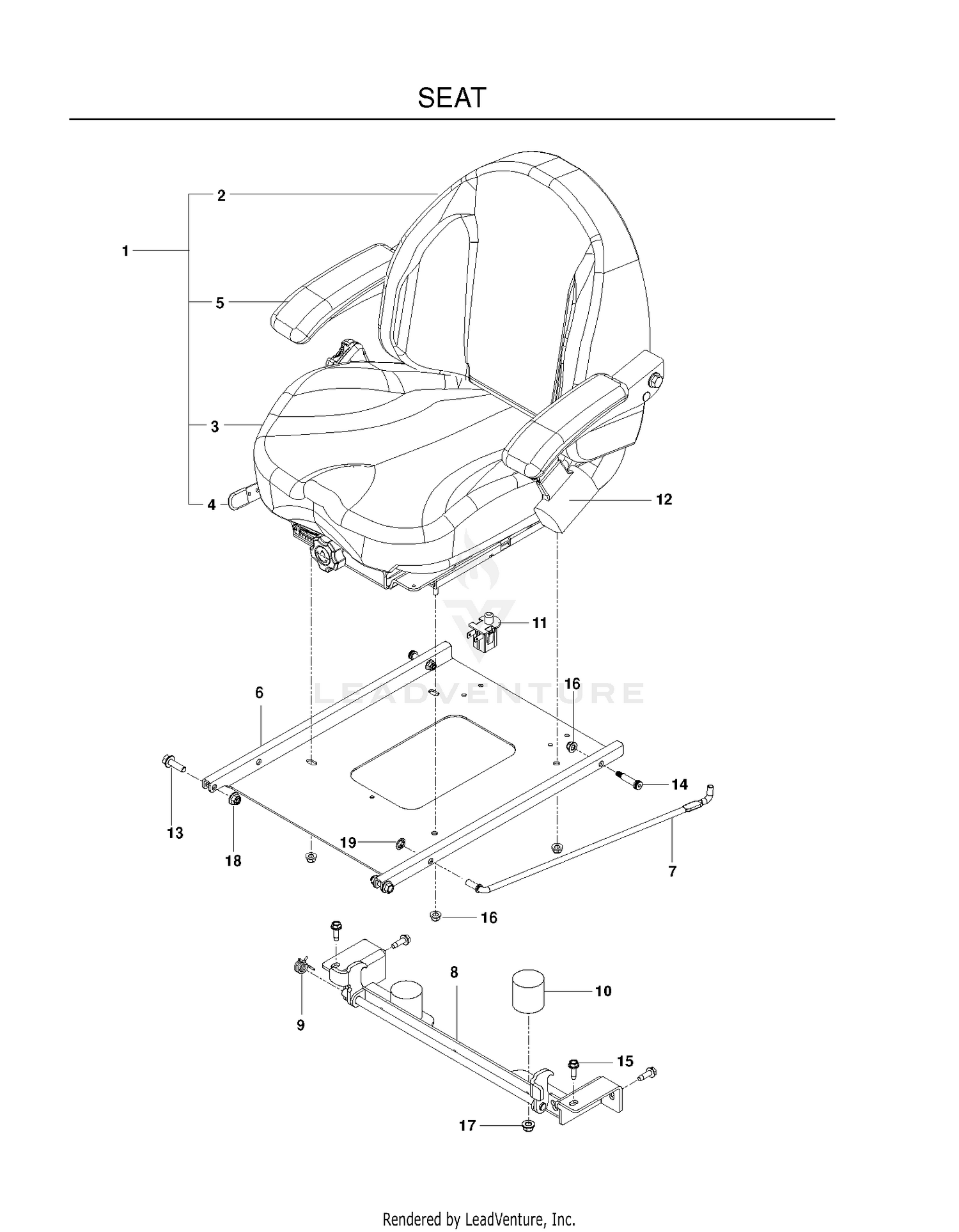

| Ref | Part Number | Description |
|---|
| 1 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 1 |
582460103 |
SEAT This part replaces 574284601. Price: $1,399.99 |
| 2 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 2 |
574284602 |
COVER, BACK Price: $219.99 |
| 3 |
114-8301 |
SPACER Price: $14.16 |
| 3 |
574284603 |
COVER KIT, CUSHION Price: $249.99 |
| 4 |
119-1418 |
PLATE-CLAMP, SHORT Price: $10.91 |
| 4 |
574284604 |
TRACK KIT Price: $169.99 |
| 5 |
132-1356 |
MOUNT-ISOLATOR Price: $5.89 |
| 5 |
574284606 |
ARMREST, RT Price: $119.99 |
| 6 |
136-5346-03 |
SUPPORT-HARDLINE Price: $11.48 |
| 6 |
510039302 |
PAN, SEAT, BLACK Price: $109.99 |
| 7 |
136-9710 |
TUBE ASM Price: $114.04 |
| 7 |
510064102 |
Rods This part replaces 510064101. Price: $7.99 |
| 8 |
136-9711 |
TUBE ASM Price: $113.86 |
| 9 |
136-9712 |
TUBE ASM Price: $101.53 |
| 9 |
520283101 |
SPRING, TORSION Price: $2.99 |
| 10 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 10 |
510283801 |
BUMPER, RUBBER Price: $19.99 |
| 11 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 11 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 539119741. Price: $12.99 |
| 12 |
596322701 |
SEAT.BELT This part replaces 539130359. Price: $119.99 |
| 12 |
69-8940 |
WASHER Price: $1.76 |
| 13 |
525834202 |
Screws This part replaces 525834201. Price: $3.99 |
| 13 |
69-8970 |
SPACER Price: $9.57 |
| 14 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 14 |
515990602 |
Bolts This part replaces 515990601. Price: $1.99 |
| 15 |
136-9950 |
TREAD-FOOT, ABRASIVE (LH) Price: $26.11 |
| 15 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 539113226. Price: $2.99 |
| 16 |
136-9951 |
TREAD-FOOT, ABRASIVE (RH) Price: $33.73 |
| 16 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 17 |
136-9952 |
TREAD-FOOT, ABRASIVE UPPER Price: $5.71 |
| 17 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 18 |
137-1264-03 |
SUPPORT-BULKHEAD Price: $22.70 |
| 18 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 19 |
240-4 |
GROMMET-RUBBER Price: $9.91 |
| 19 |
539913847 |
NUT 3/8 PALNUT RTNG BLK PHOS Price: $3.99 |
| 20 |
340-70 |
NUT-LOCK Price: $2.10 |
| 21 |
3234-42 |
SCREW-HHF Price: $1.10 |
