| Ref | Part Number | Description |
|---|
| 1 |
20-4840 |
CLAMP-MUFFLER Price: $15.06 |
| 1 |
522801401 |
BUMPER, MALE STUD, 1/4-20 Price: $2.99 |
| 1 |
603-04283 |

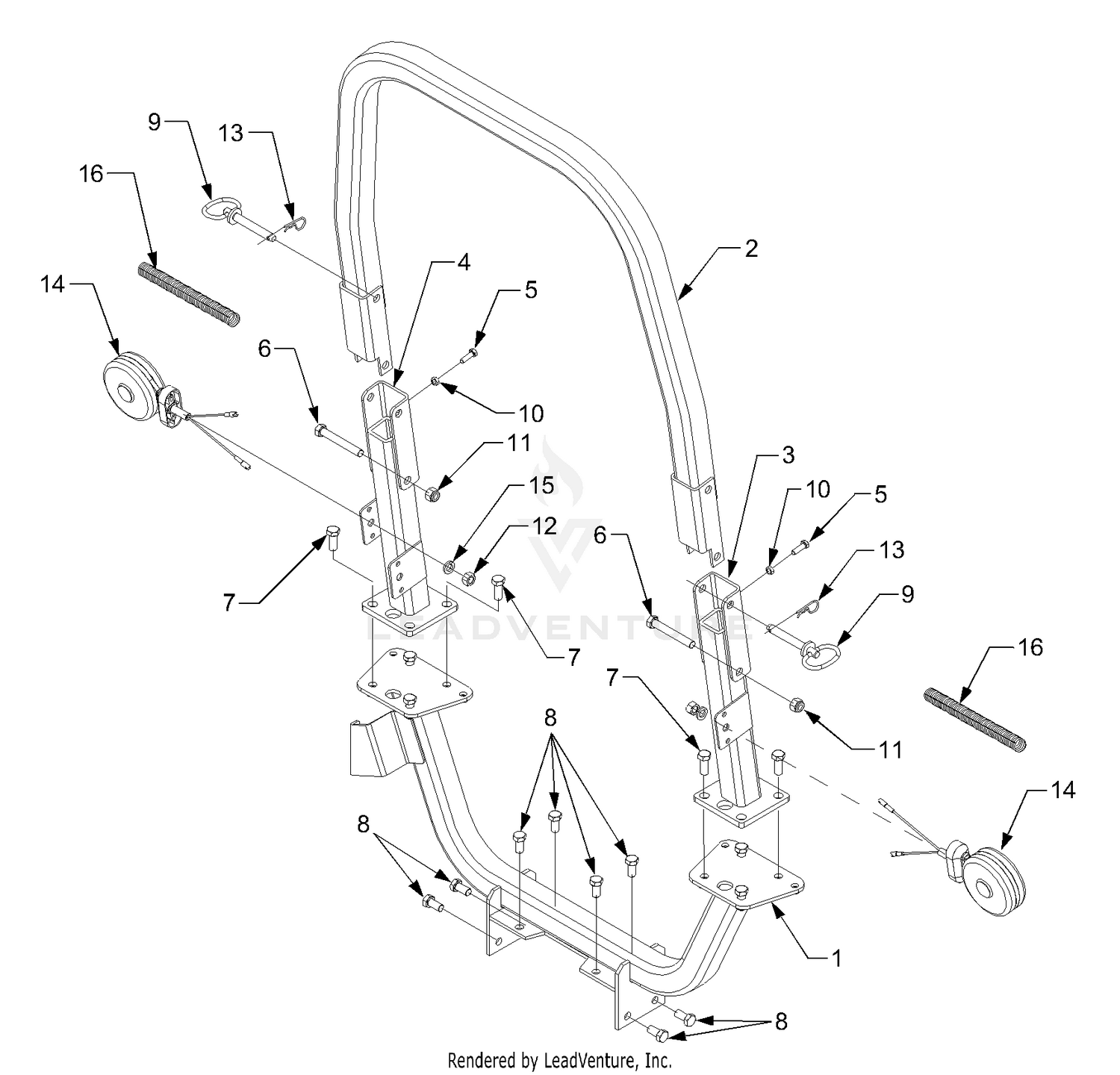

UPPER ROPS ASSEMBLY Not Available This part replaces 603-0716. Price: |
| 2 |
3217-6 |
NUT-HEX Price: $1.19 |
| 2 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 2 |
603-0717 |
ROPS ASSEMBLY-UPPER FOLDABLE Not Available Price: |
| 3 |
27-7160 |
DECAL-INSTALLATION Price: $19.89 |
| 3 |
580754602 |
Bolts This part replaces 539115576. Price: $7.99 |
| 3 |
603-0858 |
ROPS MOUNTING ASSEMBLY (RH) Not Available Price: |
| 4 |
108-3833 |
FILTER-AIR This part replaces 27-7110. Price: $26.73 |
| 4 |
594946401 |
Washers This part replaces 539102653. Price: $4.99 |
| 4 |
603-0861 |
MOUNTING ASSEMBLY (LH) ROPS Not Available Price: |
| 5 |
27-7120 |
NUT AND GASKET ASM Price: $15.55 |
| 5 |
525829102 |
Nuts This part replaces 525829101. Price: $2.99 |
| 5 |
710-0376 |
Screw, Hex Cap, 5/16-18 x 1.0 GR5 Price: $3.66 |
| 6 |
27-7140 |
SKIRT-BAFFLE Price: $85.92 |
| 6 |
574388002 |
Pins This part replaces 574388001. Price: $9.99 |
| 6 |
710-0515 |
Screw, Hex Cap, 1/2-20 x 3.5 GR5 Price: $10.13 |
| 7 |
27-7130 |
CLAMP ASM Price: $49.80 |
| 7 |
596918001 |
Pins This part replaces 539200715. Price: $2.99 |
| 7 |
710-3032 |
Screw, Hex Cap, 1/2-13 x 1.25 GR5 Price: $5.66 |
| 8 |
27-7150 |
A/C CUP ASM Price: $82.89 |
| 8 |
574330902 |
TUBE.SIDE.ROPS.GREY Price: $129.99 |
| 8 |
710-3131 |
Screw, Hex Cap, 1/2-13 x 1.0 GR5 Price: $4.69 |
| 9 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 9 |
711-1610 |
CLEVIS PIN .50 x 3.5 Not Available Price: |
| 10 |
712-3046 |
Nut, Hex Jam, 5/16-18 Price: $6.06 |
| 10 |
95-1836 |
AIR CLEANER HOSE This part replaces 80-0060. Price: $43.61 |
| 11 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 11 |
912-3058 |
Hex Lock Nut, 1/2-20 This part replaces 712-3058. Price: $4.92 |
| 12 |
80-3330 |
GASKET Price: $18.48 |
| 12 |
912-3066 |
Hex Nut, 1/2-20 This part replaces 712-3066. Price: $6.01 |
| 13 |
322-3 |
SCREW-HH Price: $0.79 |
| 13 |
914-3003 |
INTERNAL COTTER PIN Not Available This part replaces 714-3003. Price: |
| 14 |
32107-11 |
NUT-SQUARE Price: $0.22 |
| 14 |
725-3280 |
HAZARD LAMP ASSEMBLY Not Available Price: |
| 15 |
27-7170 |
MOUNTING BAND ASM Price: $48.11 |
| 15 |
736-0921 |
Washer, Lock, 1/2 Price: $3.90 |
| 16 |
3258-19 |
SCREW Price: $0.42 |
| 17 |
27-7100 |
AIR CLEANER ASM Price: $323.10 |
| 18 |
43-3810-03 |
TUBE-CLEANER, AIR This part replaces 43-3810. Price: $89.59 |
| 19 |
83-9150 |
DECAL-FLUID, STARTING Price: $20.09 |
| 20 |
27-7180 |
CAP Price: $70.51 |
| 21 |
32128-20 |
NUT-HF Price: $0.99 |
