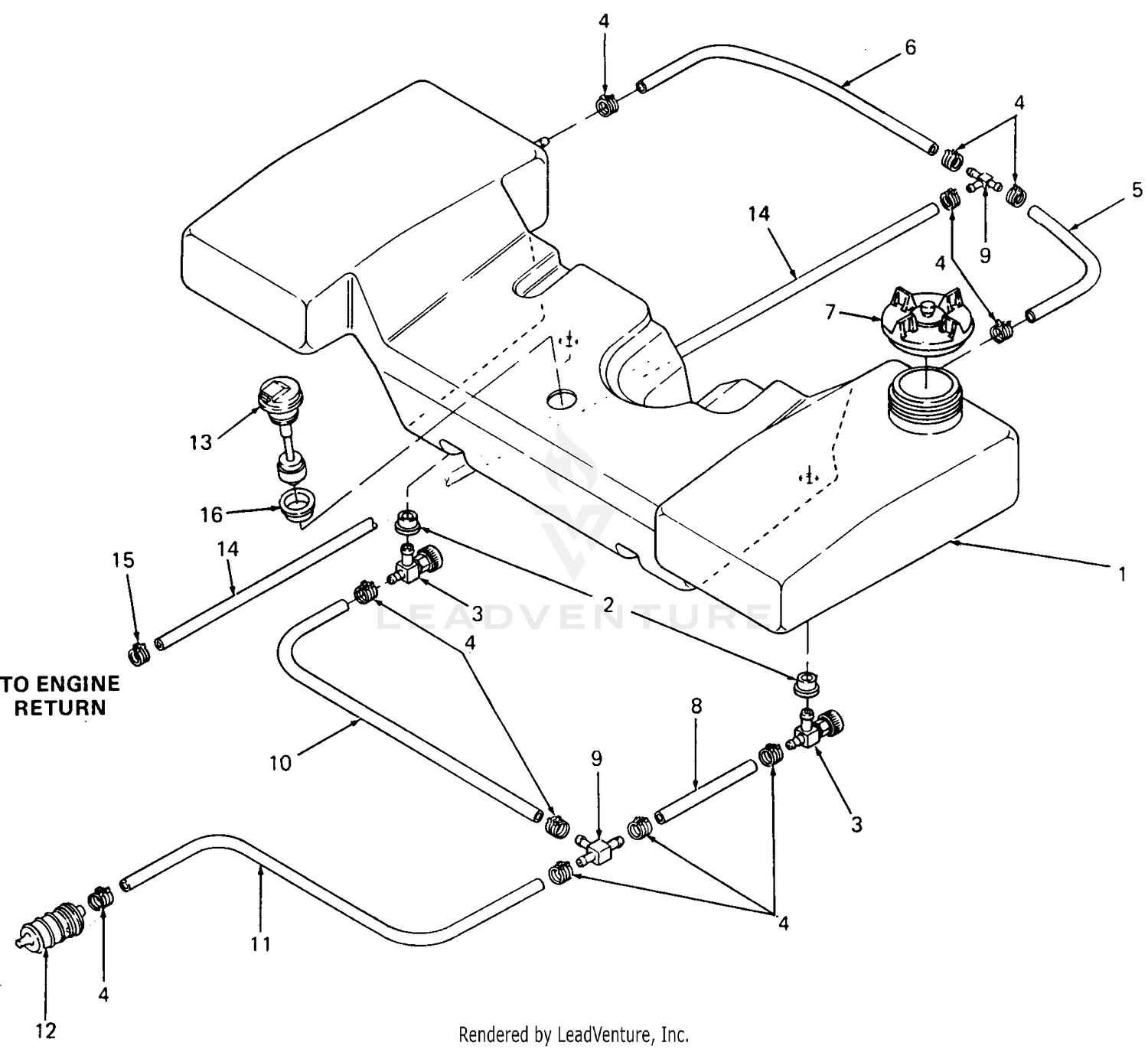

| Ref | Part Number | Description |
|---|
| 1 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 1 |
532159460 |
WIRE ASM INNER W/ PLUNGER LT Price: $22.99 |
| 1 |
751-3106 |
TANK ASSEMBLY, FUEL Not Available Price: |
| 2 |
529845601 |
SERVICE KIT SHAFT ASM RH HANDL This part replaces 532159471. Price: $49.99 |
| 2 |
62-7240 |
DISCONTINUED Price: Call Us |
| 2 |
935-0149 |
Fuel Tank Bushing This part replaces 751-3008. Price: $2.43 |
| 3 |
532105767 |
PIN GROOVE. Price: $4.99 |
| 3 |
751-3085 |
VALVE-FUEL SHUTOFF W/O SCREEN Not Available Price: |
| 4 |
726-0205 |
Clamp, Hose Price: $3.71 |
| 4 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 5 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 5 |
819211621 |
WASHER Price: $4.99 |
| 6 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 6 |
93-6912 |
DISCONTINUED Price: Call Us |
| 7 |
283-75 |
PIN-CLEVIS Price: $1.56 |
| 7 |
532109413 |
GRIP Price: $3.99 |
| 7 |
751-3109 |
FUEL CAP Not Available Price: |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
01003473 |
FUEL TEE FITTING Not Available This part replaces 751-3096. Price: |
| 9 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 10 |
92-1818-01 |
ARM-SPRING, TENSION This part replaces 92-1818. Price: $13.39 |
| 11 |
323-7 |
SCREW-HH Price: $0.65 |
| 11 |
532145537 |
LIFT LINK LH This part replaces 532139865. Price: $22.99 |
| 12 |
32104-6 |
SCREW-HH, TAP Price: $3.19 |
| 12 |
532145536 |
LIFT LINK RH This part replaces 532139866. Price: $22.99 |
| 12 |
KB-12581-43012 |
FUEL FILTER Not Available This part replaces KB-13351-43010. Price: |
| 13 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 13 |
751-3082 |
LOW FUEL SENSOR Not Available Price: |
| 14 |
93-6893 |
PIN-PIVOT, RAM Price: $49.13 |
| 15 |
532173288 |
LINK.SUSPENSION.FRONT Price: $11.99 |
| 15 |
726-0146 |
HOSE CLAMP 1/4 ID Not Available Price: |
| 15 |
92-1812 |
SHAFT-PIVOT, LIFT Price: $51.90 |
| 16 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 17 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 17 |
532175689 |
TRUNNION Price: $3.99 |
| 18 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 18 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 19 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 19 |
93-6890 |
HOSE ASM Price: $63.07 |
| 20 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 20 |
93-6889 |
HOSE ASM Price: $62.96 |
| 21 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 22 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 23 |
93-6869 |
HYD CYLINDER ASM Price: $638.61 |
| 24 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 26 |
55-4300 |
DECAL-WARNING Price: $13.99 |
| 28 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 29 |
93-6926 |
PIN-CLEVIS Price: $33.72 |
| 30 |
322-4 |
SCREW-HH Price: $0.35 |
| 31 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 31 |
532169865 |
BEARING.PIVOT.LIFT Price: $5.99 |
| 32 |
322-26 |
SCREW-HH Price: $2.36 |
| 33 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 34 |
3256-57 |
WASHER-FLAT Price: $0.41 |
| 35 |
94-3635 |
CENTER LIFT ARM ASM Price: $280.94 |
| 36 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 37 |
92-1815 |
SHAFT-C.U. PIVOT Price: $59.70 |
| 38 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 39 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 40 |
237-78 |
O-RING Price: $3.85 |
