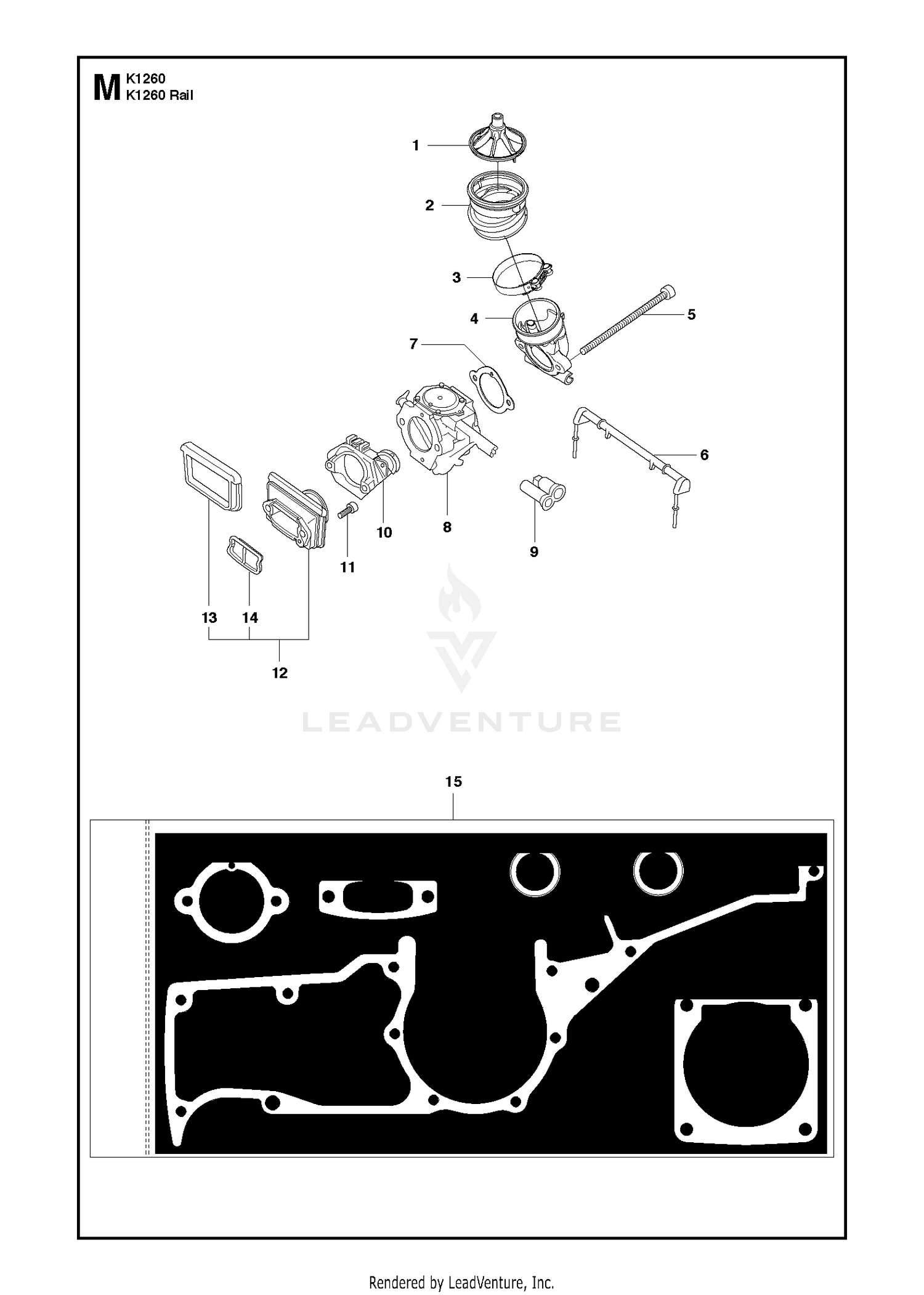

CARBURETOR
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510243901 | FILTER CONNECTION Price: $5.99 |
| 2 | 510243802 | BELLOWS This part replaces 510243801. Price: $12.99 |
| 3 | 505283311 | HOSE CLAMP JALMARSON-MPC MINI This part replaces 505283307. Price: $9.99 |
| 4 | 510243701 | INLET Price: $17.99 |
| 5 | 504909465 | SCREW ITXSCT Price: $4.99 |
| 6 | 506250401 | BRACKET Price: $11.99 |
| 7 | 579851101 | GASKET K1270 This part replaces 506274302. Price: $3.99 |
| 8 | 503281270 | CARBURET0R Price: $199.99 |
| 9 | 506254601 | GUIDE Price: $5.99 |
| 10 | 506289701 | FLANGE Price: $22.99 |
| 11 | 503215320 | SCREW. Price: $3.99 |
| 13 | 503143701 | SEALING Price: $5.99 |
| 14 | 506313801 | INSERT Price: $3.99 |
| 16 | 503131305 | GASKET Price: $4.99 |
| 17 | 503260205 | SEALING RING Price: $11.99 |
| 18 | 503134501 | CRANKCASE GASKET Price: $4.99 |
| 19 | 503134601 | GASKET Price: $4.99 |
