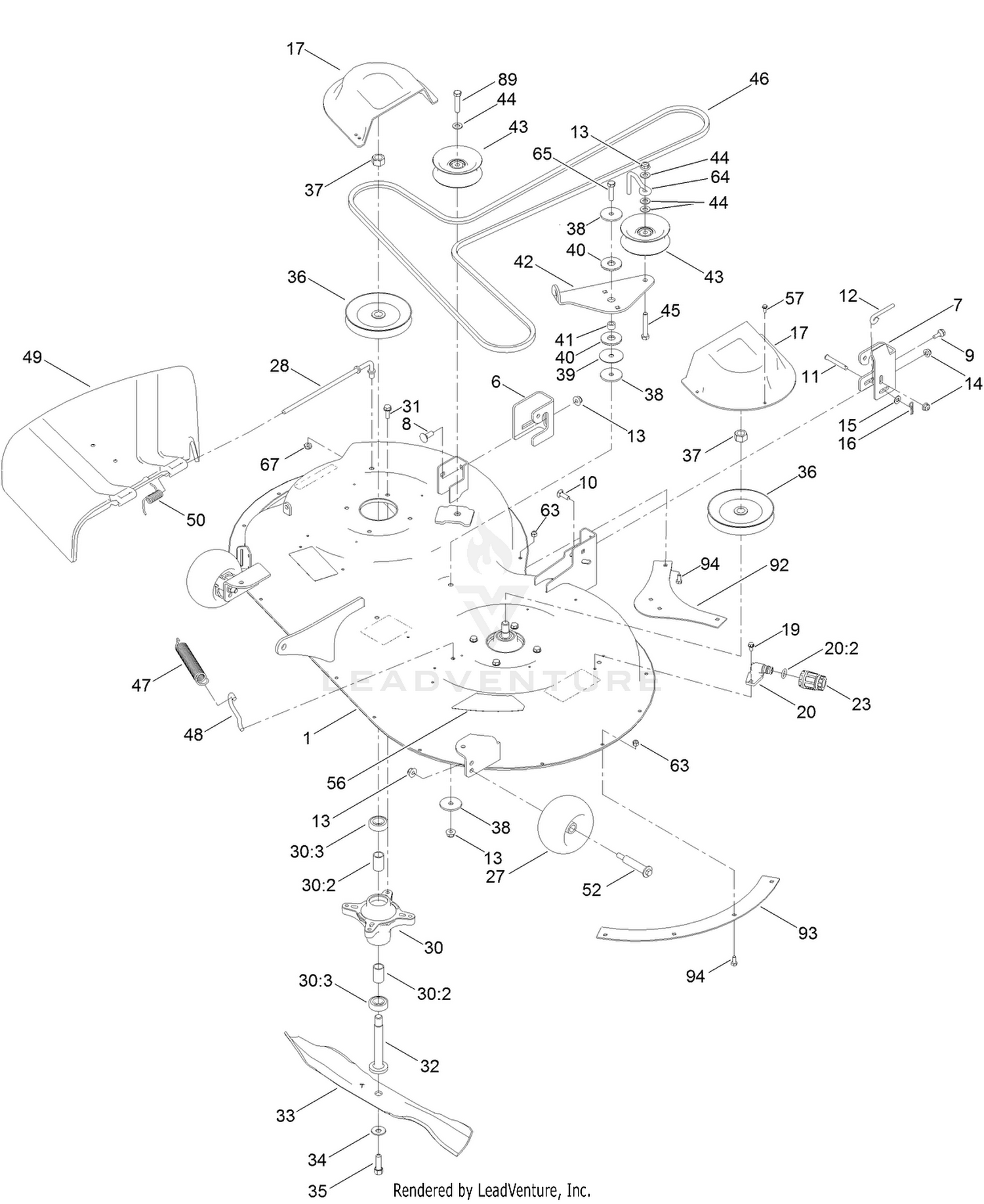

| Ref | Part Number | Description |
|---|
| 6 |
131-4138 |
BRACKET-HANGER, RH Price: $8.65 |
| 7 |
131-1091 |
BRACKET-HANGER, LH Price: $10.00 |
| 8 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 9 |
120-7024 |
SCREW-SHOULDER,HWH Price: $1.31 |
| 10 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 11 |
110-0618 |
PIN-CLEVIS Price: $1.42 |
| 12 |
131-0955 |
ROD-LEVEL, DECK Price: $4.64 |
| 13 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 16 |
1-806003 |
PIN-COTTER Price: $1.39 |
| 17 |
108-7889 |
COVER-BELT Price: $21.61 |
| 19 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 20 |
133-9289 |
FITTING-WASHOUT Price: $3.86 |
| 23 |
95-3270 |
CONNECTOR-HOSE Price: $22.99 |
| 27 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 28 |
137-2019 |
ROD-PIVOT Price: $8.15 |
| 30 |
121-0751 |
SPINDLE ASM Price: $51.71 |
| 31 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 32 |
117-7268 |
SHAFT-SPINDLE Price: $19.98 |
| 33 |
137-1999-03 |
BLADE Price: $20.79 |
| 34 |
3290-465 |
WASHER-BELLEVILLE Price: $2.89 |
| 35 |
26-0671 |
SCREW-HH Price: $7.99 |
| 36 |
139-2433 |
PULLEY This part replaces 125-5574. Price: $26.14 |
| 37 |
3219-6 |
NUT-HEX Price: $2.78 |
| 38 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 39 |
120-2229 |
WASHER Price: $1.27 |
| 40 |
114-0463 |
WASHER-FRICTION, COMPOSITE Price: $4.79 |
| 41 |
115-4986 |
SPACER Price: $1.39 |
| 42 |
114-8540 |
ARM-IDLER Price: $14.48 |
| 43 |
132-9420 |
PULLEY-IDLER, FLAT Price: $25.16 |
| 44 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 45 |
323-11 |
SCREW-HH Price: $1.08 |
| 46 |
119-8819 |
V-BELT Price: $40.48 |
| 47 |
106-2177 |
SPRING-EXTENSION Price: $9.92 |
| 48 |
138-7267 |
HOOK-SPRING, RETURN This part replaces 88-5970. Price: $1.12 |
| 49 |
137-7046 |
DEFLECTOR Price: $50.30 |
| 50 |
110-6694 |
SPRING-TORSION Price: $4.12 |
| 52 |
112-3977 |
BOLT-SHOULDER Price: $7.37 |
| 56 |
117-1222 |
DECAL Price: $5.90 |
| 57 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 63 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 64 |
138-7270 |
GUIDE-BELT, IDLER This part replaces 107-7307. Price: $1.69 |
| 65 |
323-8 |
SCREW-HH Price: $1.20 |
| 67 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 89 |
323-9 |
SCREW-HH Price: $1.29 |
| 92 |
137-2036-03 |
BAFFLE-BLOWOUT, REAR Price: $11.94 |
| 93 |
137-2037-03 |
BAFFLE-BLOWOUT, SIDE Price: $6.91 |
