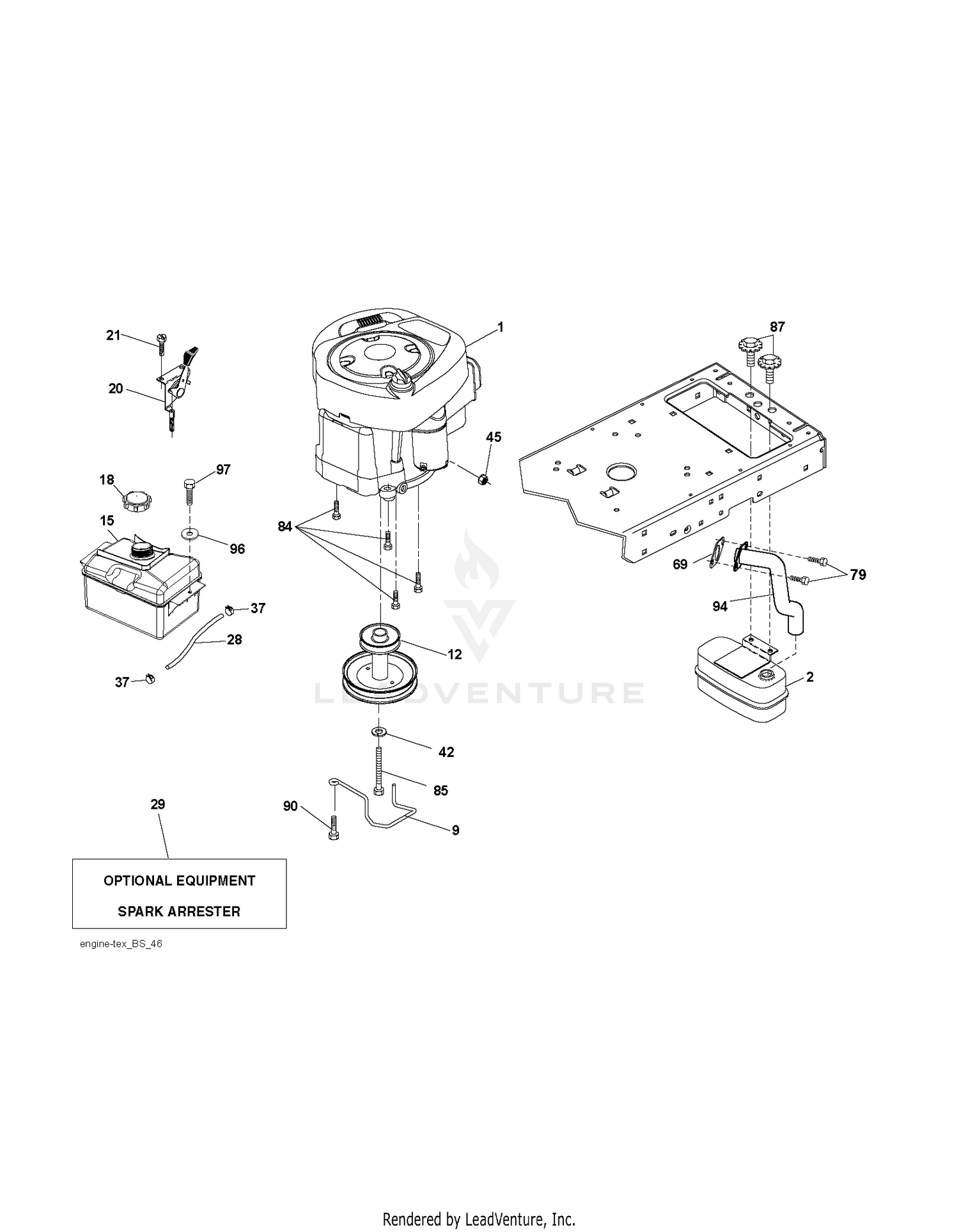

| Ref | Part Number | Description |
|---|
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S This part replaces 580532301. Price: $39.99 |
| 3 |
59-8140 |
RING Price: $1.44 |
| 4 |
59-8160 |
PLUG Price: $18.66 |
| 5 |
63-4440 |
O-RING Price: $13.18 |
| 6 |
59-7860 |
WASHER Price: $4.31 |
| 7 |
42-1260 |
SEAL KIT Price: $31.81 |
| 8 |
63-4780 |
VALVE-RELIEF Price: $485.19 |
| 9 |
59-8060 |
PLUG Price: $22.35 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
59-8050 |
SPRING Price: $15.65 |
| 11 |
59-8150 |
PAWL Price: $36.37 |
| 12 |
586478501 |
ENGINE.PULLEY Price: $27.99 |
| 12 |
66-5440 |
NUT-HEX Price: $1.07 |
| 13 |
3253-19 |
WASHER-LOCK Price: $0.25 |
| 14 |
63-4860 |
CIRCLIP Price: $28.63 |
| 15 |
581289901 |
FUEL.TANK.ASM.NON-EPA Price: $44.99 |
| 15 |
63-4510 |
SPRING Price: $38.85 |
| 16 |
59-8230 |
PLUG Price: $47.93 |
| 17 |
66-5420 |
SLEEVE Price: $29.51 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 18 |
63-4850 |
PLUNGER Price: $88.33 |
| 19 |
60-4550 |
SWITCH-MICRO Price: $318.29 |
| 20 |
3256-12 |
WASHER-FLAT This part replaces 3256-13. Price: $0.99 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
66-5430 |
SCREW Price: $10.07 |
| 22 |
63-4830 |
CAPSCREW Price: $0.85 |
| 23 |
59-8070 |
LOCKWASHER Price: $0.49 |
| 24 |
302-66 |
FITTING-GREASE Price: $5.13 |
| 25 |
63-4820 |
BLOCK-DETENT Price: $275.22 |
| 26 |
63-4840 |
SCREW-DETENT Price: $172.21 |
| 27 |
59-8100 |
WASHER Price: $8.63 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 28 |
59-8170 |
WASHER Price: $8.09 |
| 29 |
59-8040 |
SPRING Price: $7.29 |
| 30 |
59-8080 |
WASHER Price: $18.05 |
| 31 |
59-8180 |
WASHER Price: $33.37 |
| 32 |
AU114313A1 |
O-RING This part replaces 59-7780. Price: $2.40 |
| 33 |
59-8120 |
RING Price: $3.69 |
| 34 |
59-8190 |
WIPER Price: $10.41 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 94 |
581880901 |
EXHAUST.TUBE.B&S.28/31 This part replaces 581099201. Price: $19.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
