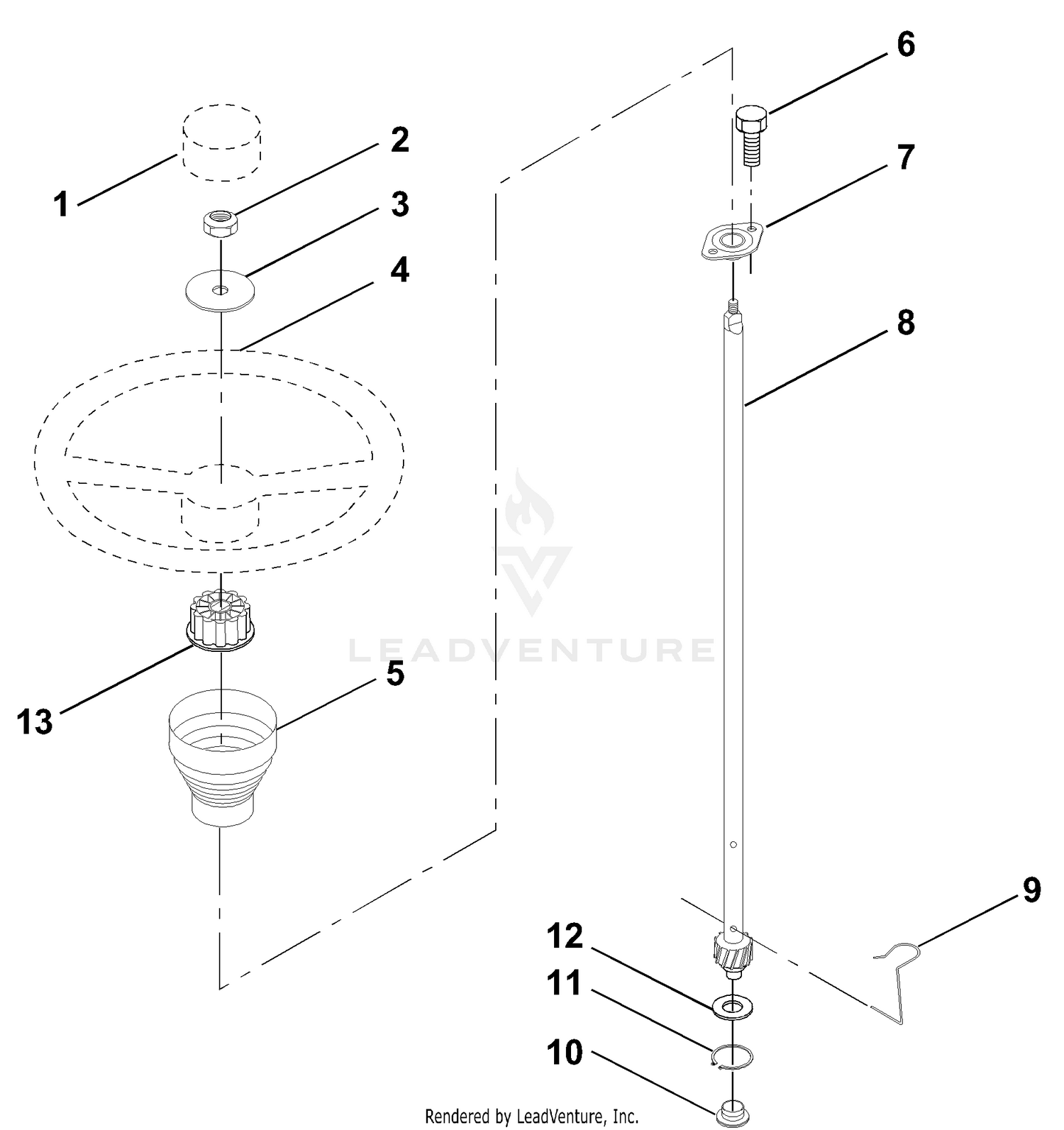

| Ref | Part Number | Description |
|---|
| 1 |
21-2820 |
HUB Price: $269.34 |
| 1 |
532124416 |
INSERT,STR WHEEL Price: $7.89 |
| 2 |
3234-46 |
SCREW-HHF Price: $2.08 |
| 2 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 3 |
32128-23 |
NUT-HF Price: $1.51 |
| 3 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133808. Price: $4.99 |
| 4 |
532124415 |
STEERING WHEEL Price: $58.99 |
| 4 |
92-7807-01 |
REAR AXLE PIN ASM Price: $151.97 |
| 5 |
532127396 |
STEERING SLEEVE Price: $2.66 |
| 5 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 6 |
817211008 |
Screw Slftp #10-16 x 1/2 Ty-Ab This part replaces 817431008. Price: $3.99 |
| 7 |
532155107 |
STEERING BUSHING KIT This part replaces 532102803. Price: $6.99 |
| 7 |
98-3869-01 |
WEIGHT-REAR Price: $461.69 |
| 8 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 8 |
532148966 |
KIT.SERVICE.SHAFT.STEERING.LR This part replaces 532123651. Price: $119.99 |
| 9 |
532124210 |
STEERING CLIP Price: $4.99 |
| 9 |
92-7845 |
SPACER-HARDENED Price: $7.44 |
| 10 |
532123438 |
BUSHING STEER LWR Price: $5.99 |
| 10 |
99-2413-01 |
COVER-GUARD, FLYWHEEL Price: $22.07 |
| 11 |
56-7980 |
SLEEVE-PROTECTIVE Price: $22.90 |
| 11 |
812000045 |
RING Price: $5.99 |
| 12 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 12 |
68-9710 |
HOSE-STEERING, REAR Price: $98.31 |
| 13 |
56-2460 |
WASHER-FLAT Price: $3.32 |
| 14 |
92-7803-01 |
AXLE SUPPORT ASM Price: $958.49 |
| 15 |
32146-20 |
NUT-HEX Price: $3.23 |
| 16 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 17 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 19 |
253-129 |
SEAL Price: $21.73 |
| 20 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 21 |
115-4524 |
CYLINDER-HYDRAULIC This part replaces 92-7828. Price: $914.47 |
| 22 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 23 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 24 |
3220-7 |
NUT-JAM Price: $4.09 |
| 25 |
3220-6 |
NUT-JAM Price: $1.25 |
| 26 |
92-7821 |
DISCONTINUED Price: Call Us |
| 27 |
340-54 |
ELBOW-45 DEG Price: $40.72 |
| 28 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 29 |
256-121 |
WASHER-THRUST Price: $4.55 |
| 30 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 31 |
100-6566-03 |
REAR AXLE ASM Price: $926.46 |
| 32 |
3220-3 |
NUT-HJ Price: $0.28 |
| 33 |
5-1226 |
WASHER Price: $3.90 |
| 34 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 35 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 36 |
93-3199-03 |
RH SPINDLE ASM This part replaces 93-3199. Price: $366.74 |
| 37 |
100-6566-03 |
REAR AXLE ASM Price: $926.46 |
| 38 |
21-2000 |
TIE ROD-STEERING Price: $103.72 |
| 39 |
21-0141 |
RH BALL JOINT ASM This part replaces 21-0141-03. Price: $109.12 |
| 40 |
99-1292-03 |
LH SPINDLE ASM This part replaces 99-1292. Price: $366.74 |
| 41 |
66-2990 |
CAP-SPINDLE Price: $13.27 |
| 42 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 43 |
106-6774 |
JOINT-BALL This part replaces 92-5838-01. Price: $79.04 |
| 44 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
