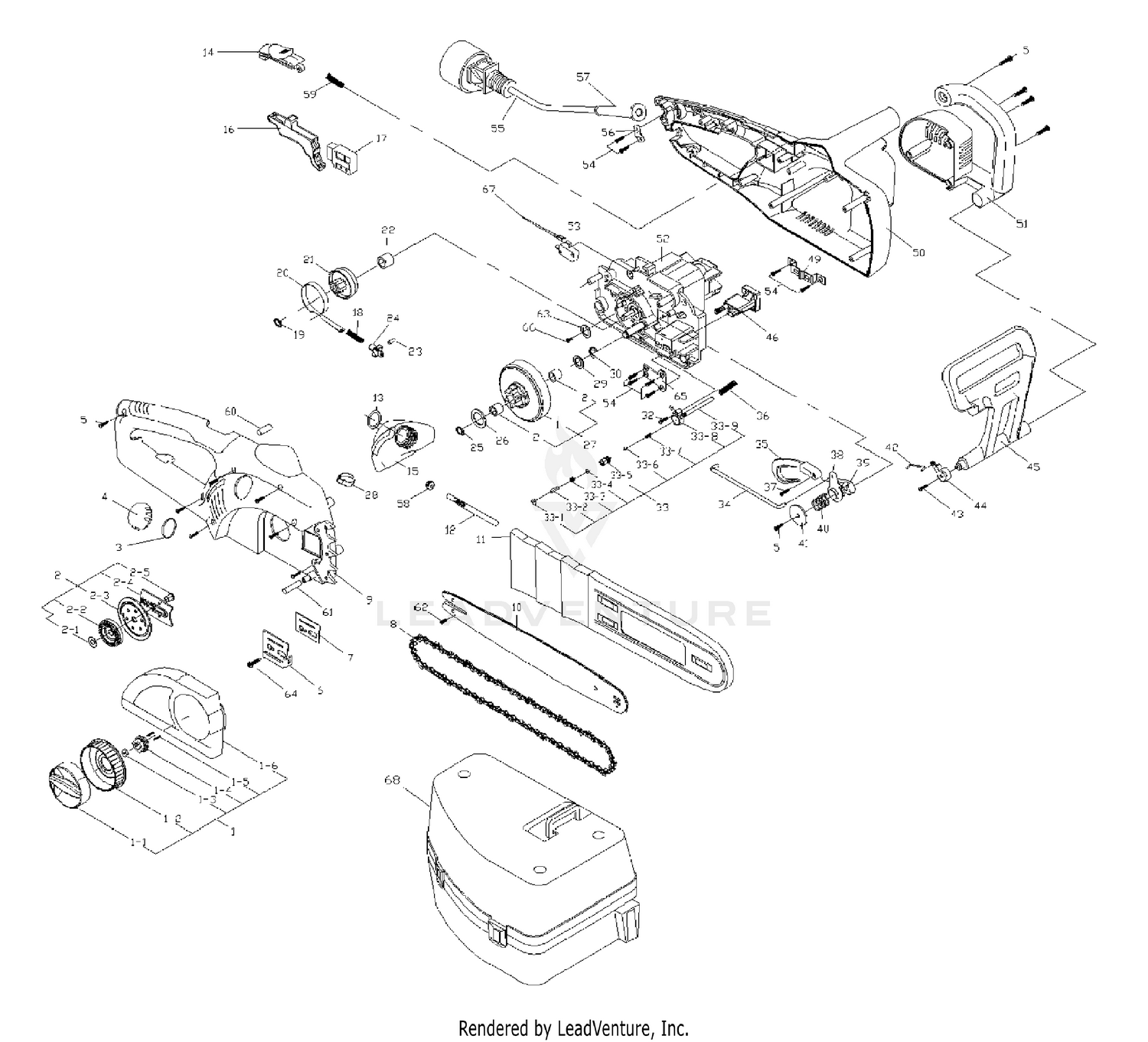

General Assembly
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 1 | MC-6228-211403 | HOUSING Not Available Price: |
| 2 | MC-6228-211504 | COVER ASSEMBLY CHAIN Not Available Price: |
| 3 | MC-6012-210501 | WASHER Not Available Price: |
| 4 | MC-6017-210103 | OIL CAP Not Available Price: |
| 5 | MC-6SDABB04-18 | SCREW Not Available Price: |
| 6 | MC-6043-211302 | PLATE-ADJU Not Available Price: |
| 7 | MC-6050-211301 | WASHER-OIL Not Available Price: |
| 9 | MC-6038-211505 | HOUSING Not Available Price: |
| 10 | MC-9040-310175 | BAR-16" Not Available Price: |
| 12 | MC-6228-211506 | PIPE ASSEMBLY-OIL Not Available Price: |
| 13 | MC-6076-210503 | WASHER Not Available Price: |
| 14 | MC-6056-211502 | SWITCH-BUTTON Not Available Price: |
| 15 | MC-6066-211501 | TANK OIL Not Available Price: |
| 16 | MC6028-211502 | TRIGGER Price: Call Us |
| 17 | MC-6022-211502 | SWITCH Not Available Price: |
| 18 | MC-6024-211301 | SPRING Not Available Price: |
| 19 | MC-6CY-08 | RING Not Available Price: |
| 20 | MC-6079-211501 | BRAKE SPRING Not Available Price: |
| 21 | MC-6073-211501 | GEAR Not Available Price: |
| 22 | MC-6059-210201 | COVER-ADJUSTMENT Not Available Price: |
| 23 | MC-6115-211502 | PIN Not Available Price: |
| 24 | MC-6154-211502 | CONNECTION Not Available Price: |
| 25 | MC-6CG-9.5 | C RING Not Available Price: |
| 26 | MC-6014-210502 | WASHER Not Available Price: |
| 27 | MC-6228-210104 | GEAR BEARING ASS'Y Not Available Price: |
| 28 | MC-6077-211501 | COVER Not Available Price: |
| 29 | MC-6057-210102 | WASHER Not Available Price: |
| 30 | MC-6CC-10 | RING-RETAINER Not Available Price: |
| 32 | MC-6SDABB03-18 | SCREW Not Available Price: |
| 33 | MC-6228-210105 | LUBRICANT PUMP ASS'Y Not Available Price: |
| 34 | MC-6188-211501 | BAR-PULL Not Available Price: |
| 35 | MC-6114-211501 | PLATE-PULL Not Available Price: |
| 36 | MC-6024-211507 | SPRING Not Available Price: |
| 37 | MC-6QABB04-20 | SCREW Not Available Price: |
| 38 | MC-6181-211501 | CLU Not Available Price: |
| 39 | MC-6181-211502 | CLU Not Available Price: |
| 40 | MC-6024-211503 | SPRING Not Available Price: |
| 41 | MC-6014-211501 | WASHER Not Available Price: |
| 42 | MC-6154-211301 | BAR:CONN Not Available Price: |
| 43 | MC-6SQABB4.5-30 | SCREW Not Available Price: |
| 44 | MC-6154-211504 | CONNECTOR Not Available Price: |
| 45 | MC-6017-211503 | GUARD-FRONT Not Available Price: |
| 46 | MC-6228-211303 | FIXED ASSEMBLY Not Available Price: |
| 48 | MC-6SDABB04-16 | SCREW Not Available Price: |
| 49 | MC-6079-211503 | SPRING Not Available Price: |
| 50 | MC-6038-211506 | HOUSING Not Available Price: |
| 51 | MC-6086-211501 | COVER-REEL Not Available Price: |
| 53 | MC-6022-211501 | SWITCH Not Available Price: |
| 54 | MC-6SDABB04-10 | SCREW Not Available Price: |
| 55 | MC-6011-211502 | CORD-POWER Not Available Price: |
| 56 | MC-6043-840001 | CLAMP-CORD Not Available Price: |
| 57 | MC-6059-855001 | GUARD-CORD Not Available Price: |
| 58 | MC-6012-211501 | STOP-RUBBER Not Available Price: |
| 59 | MC-6024-211506 | SPRING Not Available Price: |
| 60 | MC-6PC05-14.7 | PIN Not Available Price: |
| 61 | MC-6PC4.4-35 | PIN Not Available Price: |
| 62 | MC-6SQAB-04-06 | SCREW Not Available Price: |
| 63 | MC-6WFB-03-12 | WASHER Not Available Price: |
| 64 | MC-6SDABB03-15 | SCREW Not Available Price: |
| 65 | MC-6158-211502 | PLATE Not Available Price: |
| 66 | MC-6SLABB03-06 | SCREW Not Available Price: |
| 67 | MC-6101-211301 | WIRE Price: Call Us |
