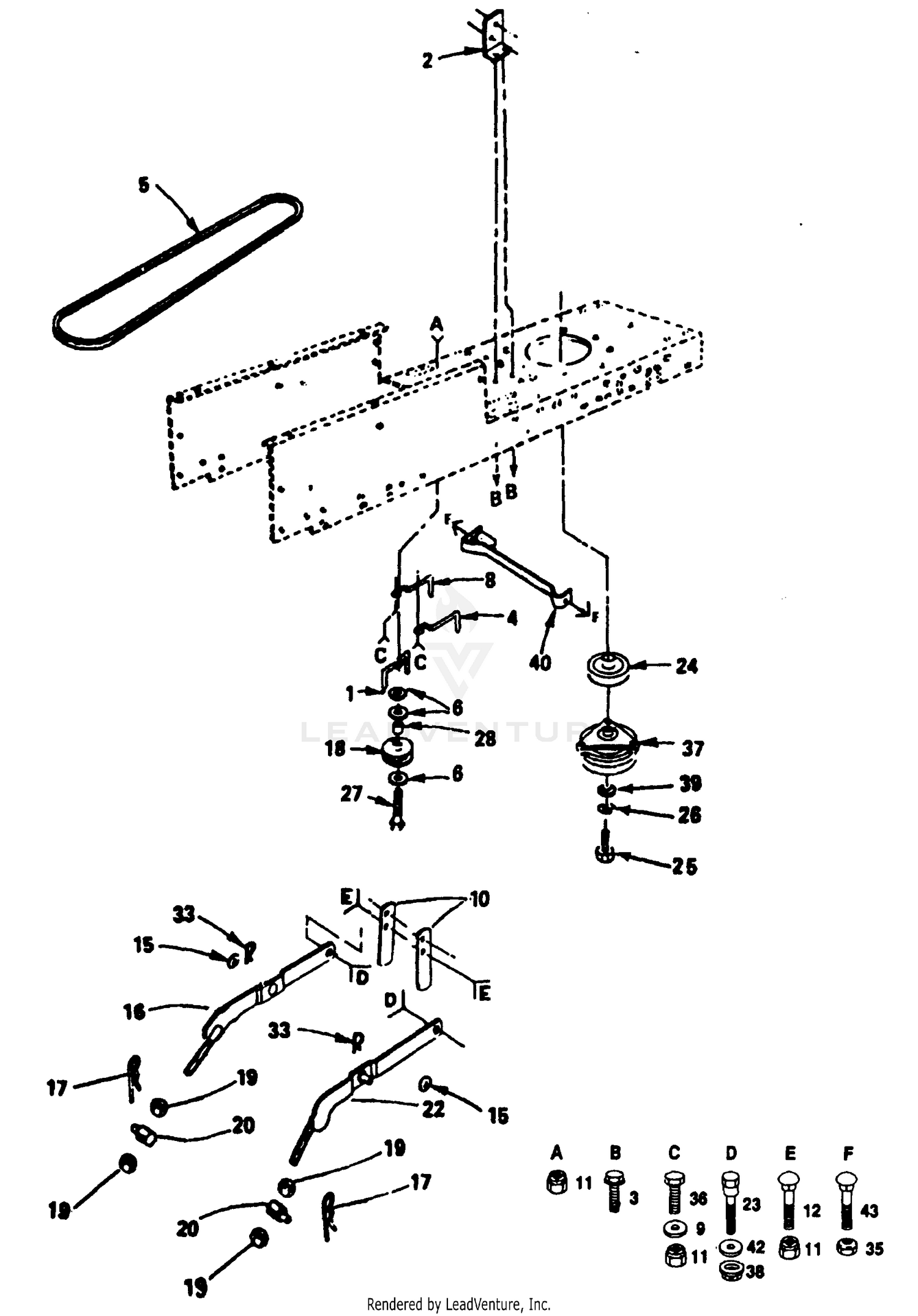

| Ref | Part Number | Description |
|---|
| 1 |
39-8040-03 |
RH SPINDLE ASM This part replaces 21-1930. Price: $291.38 |
| 1 |
532109070 |
Retainer, Belt (AYP part number) Price: $3.99 |
| 2 |
21-2000 |
TIE ROD-STEERING Price: $103.72 |
| 2 |
532108236 |
Bracket, Switch (AYP part number) Price: $2.99 |
| 3 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 3 |
817021008 |
Screw, Tapping, Hex Head #10-24 x 1/2 (AYP part number) Price: $1.99 |
| 4 |
32128-23 |
NUT-HF Price: $1.51 |
| 4 |
532105730 |
Keeper, Belt, Engine (AYP part number) Price: $2.99 |
| 5 |
325-7 |
SCREW-HH Price: $1.53 |
| 5 |
532123796 |
V-Belt, Drive (AYP part number) Price: $29.99 |
| 6 |
819131316 |
Washer 13/32 x 13/16 x 16 Gauge (AYP part number) Price: $2.99 |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 8 |
322-3 |
SCREW-HH Price: $0.79 |
| 8 |
532121218 |
Keeper, Belt, Engine (AYP part number) Price: $2.86 |
| 9 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 9 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 10 |
23-1540 |
REAR AXLE PIN WA Price: $80.56 |
| 10 |
532121252 |
Upstop, Mower (AYP part number) Price: $2.99 |
| 11 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 11 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 12 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 12 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
| 13 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 15 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 15 |
532052160 |
Washer (AYP part number) This part replaces 819171516. Price: $3.99 |
| 16 |
33-2890 |
REAR AXLE WA *RO This part replaces 23-1480. Price: $745.14 |
| 16 |
532121599 |
Arm Assembly, Suspension, L.H. (AYP part number) Price: $21.14 |
| 17 |
256-121 |
WASHER-THRUST Price: $4.55 |
| 17 |
532009135 |
Retainer, Spring (AYP part number) This part replaces 532124960. Price: $2.99 |
| 18 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 18 |
532123674 |
Idler, Flat (AYP part number) Price: $17.99 |
| 19 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 19 |
873350800 |
NUT.HEX.JAM.1/2-13 This part replaces 873220800. Price: $1.99 |
| 20 |
231-105 |
TIRE-RIBBED This part replaces 231-43. Price: $62.56 |
| 20 |
532175689 |
TRUNNION This part replaces 532106308. Price: $2.99 |
| 21 |
217-106 |
WHEEL-8 INCH Price: $141.58 |
| 22 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 22 |
532121598 |
Arm Assembly, Suspension, R.H. (AYP part number) Price: $14.99 |
| 23 |
32136-5 |
NUT-HEX, SLOTTED Price: $2.71 |
| 23 |
532105848 |
Bolt, Shoulder 3/8-16 (AYP part number) Price: $2.02 |
| 24 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 24 |
532123795 |
Pulley, Engine (AYP part number) Price: $27.99 |
| 25 |
871130768 |
Bolt, Hex 7/16-20 x 4-1/4 Grade 8 (AYP part number) Price: Call Us |
| 26 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 26 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 27 |
5108 |
VALVE This part replaces 232-31. Price: $6.29 |
| 27 |
874760644 |
Bolt, Hex 3/8-16 x 2-3/4 (AYP part number) Price: $3.99 |
| 28 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 28 |
532124965 |
Spacer (AYP part number) Price: $3.99 |
| 29 |
21-2820 |
HUB Price: $269.34 |
| 30 |
253-129 |
SEAL Price: $21.73 |
| 31 |
39-8050-03 |
LH SPINDLE ASM This part replaces 21-1980. Price: $247.17 |
| 32 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 33 |
46-8830 |
REAR STRG. PIVOT W A This part replaces 23-1510. Price: $449.47 |
| 33 |
532004921 |
Spring, Retainer (AYP part number) This part replaces 532124961. Price: $3.99 |
| 34 |
99-5686 |
RH SOCKET ASM This part replaces 21-0140. Price: $99.81 |
| 35 |
3220-5 |
NUT-JAM Price: $0.65 |
| 35 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 36 |
32136-4 |
NUT-HEX,SLOTTED Price: $1.56 |
| 36 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 37 |
256-242 |
BUSHING Price: $3.32 |
| 37 |
532137140 |
Clutch, Electric (AYP part number) This part replaces 532126112. Price: $279.99 |
| 38 |
873680600 |
LOCKNUT This part replaces 873980600. Price: $1.99 |
| 39 |
532108252 |
Washer 15/32 x 1-3/8 x 1/4 (AYP part number) Price: $3.33 |
| 40 |
532109169 |
Locater, Clutch (AYP part number) Price: $17.99 |
| 41 |
21-2100 |
DISCONTINUED Price: Call Us |
| 42 |
532110739 |
Washer, Spring (AYP part number) Price: $2.99 |
