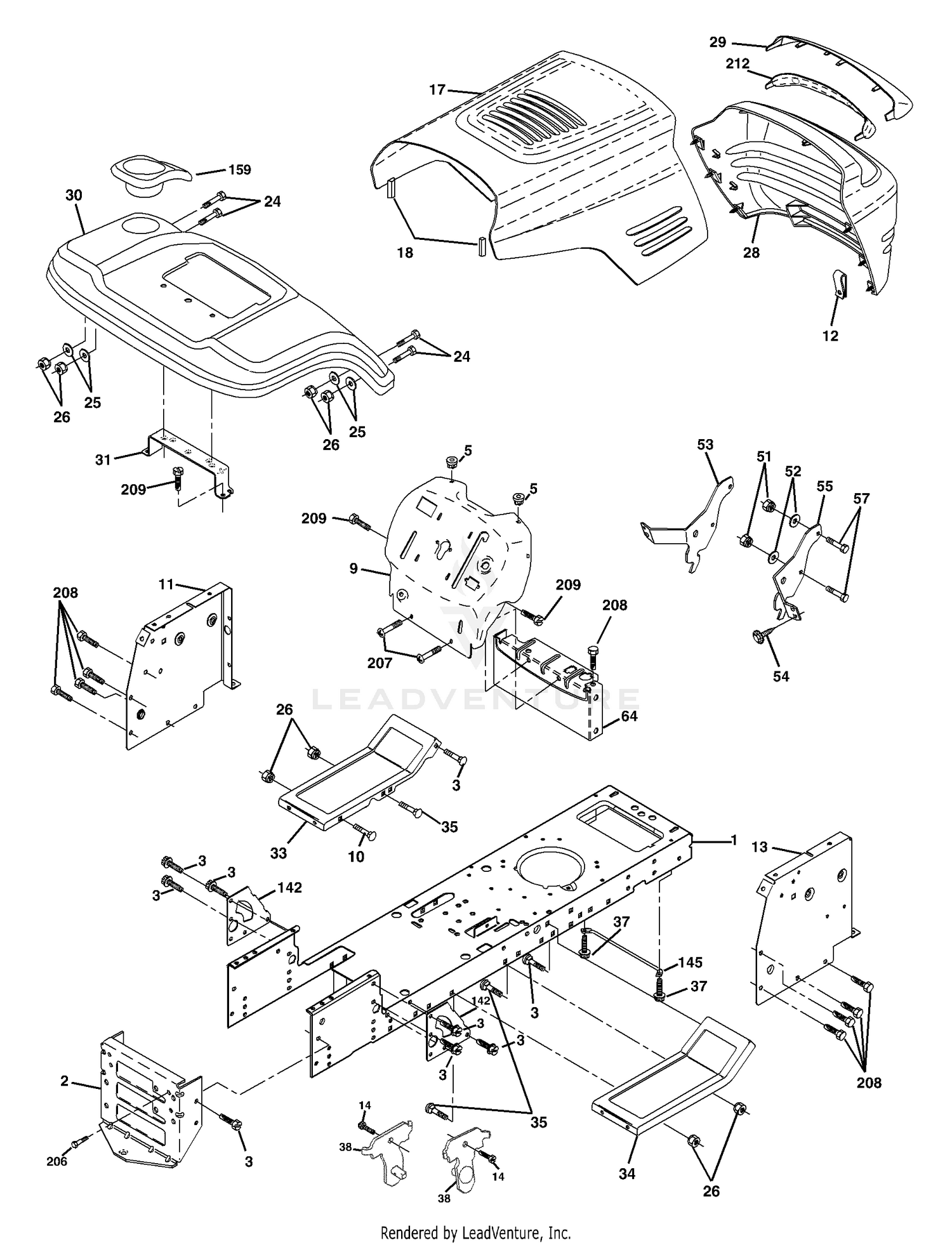

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 1 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 2 |
94-8197 |
TUBE-PIVOT Price: $19.37 |
| 3 |
17060612 |
Screw 3/8-16x.75 Price: Call Us |
| 3 |
33113-030 |
SCREW-HH Price: $0.54 |
| 4 |
140-6248 |
DAMPER This part replaces 76-8870. Price: $159.54 |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 5 |
94-1312 |
SPACER-PIVOT Price: $6.97 |
| 6 |
105-5477-03 |
LEVER-PUMP Price: $41.84 |
| 7 |
88-7200 |
WASHER-FLAT Price: $2.51 |
| 8 |
3210-6 |
SCREW-HH Price: $1.76 |
| 9 |
105-5475 |
CABLE SUPPORT ASM Price: $88.47 |
| 9 |
168336X010 |
Dash P/L Price: Call Us |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
105-4302 |
NEUTRAL ARM ASM Price: $102.89 |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 12 |
145660 |
Clip Tinnerman Price: Call Us |
| 12 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 13 |
172106 |
Panel Dash Rh Price: Call Us |
| 13 |
93-2111 |
STUD-TRACTION Price: $20.29 |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1-1/4 Price: Call Us |
| 14 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 15 |
251-259 |
BEARING-BALL Price: $13.67 |
| 16 |
94-1369 |
SPRING-EXTENSION Price: $12.72 |
| 17 |
144983X603 |
Hood W/Side Louvers Price: Call Us |
| 17 |
323-4 |
SCREW-HH Price: $1.02 |
| 18 |
184921 |
Bumper Hood Large Price: Call Us |
| 18 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 19 |
33114-025 |
SCREW-HH Price: $0.70 |
| 20 |
33114-030 |
SCREW-HH Price: $0.50 |
| 21 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 22 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 23 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 24 |
321-7 |
SCREW-HH Price: $4.19 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 x 1 Gr 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 X 13/16 X 12 Ga Price: Call Us |
| 25 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 Unc Price: Call Us |
| 26 |
99-4251 |
HOSE-DAMPENER Price: $11.85 |
| 27 |
93-9051 |
DECAL-BOLT, ECCENTRIC Price: $16.37 |
| 28 |
178987X428 |
Grille LT/PL Price: Call Us |
| 28 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 29 |
155217X599 |
Lens Price: Call Us |
| 29 |
94-3486 |
PLATE Price: $107.60 |
| 30 |
169470X603 |
Fender Footrest STLT Pnt Price: Call Us |
| 30 |
63-9750 |
MOUNT Price: $18.92 |
| 31 |
136619 |
Bracket Support Fender Price: Call Us |
| 31 |
33115-035 |
SCREW-HH Price: $1.15 |
| 32 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 33 |
179716X603 |
Footrest Pnt Lh Price: Call Us |
| 33 |
2844 |
WASHER Price: $2.69 |
| 34 |
179717X603 |
Footrest Pnt Rh Price: Call Us |
| 34 |
94-8196 |
WASHER-NYLON Price: $4.44 |
| 35 |
105-4307-03 |
BRACKET-SPRING Price: $38.04 |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Rear Price: Call Us |
| 51 |
73800400 |
Nut Lock Hex W/Ins 1/4-20 Price: Call Us |
| 52 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 53 |
145201 |
Bracket Grille Lh Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 55 |
145202 |
Bracket Grille Rh Price: Call Us |
| 57 |
74780412 |
Bolt Hex 1/4-20 x 3/4 Price: Call Us |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 159 |
169473X428 |
Cupholder Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 212 |
165919 |
Insert Lens Reflect Price: Call Us |
