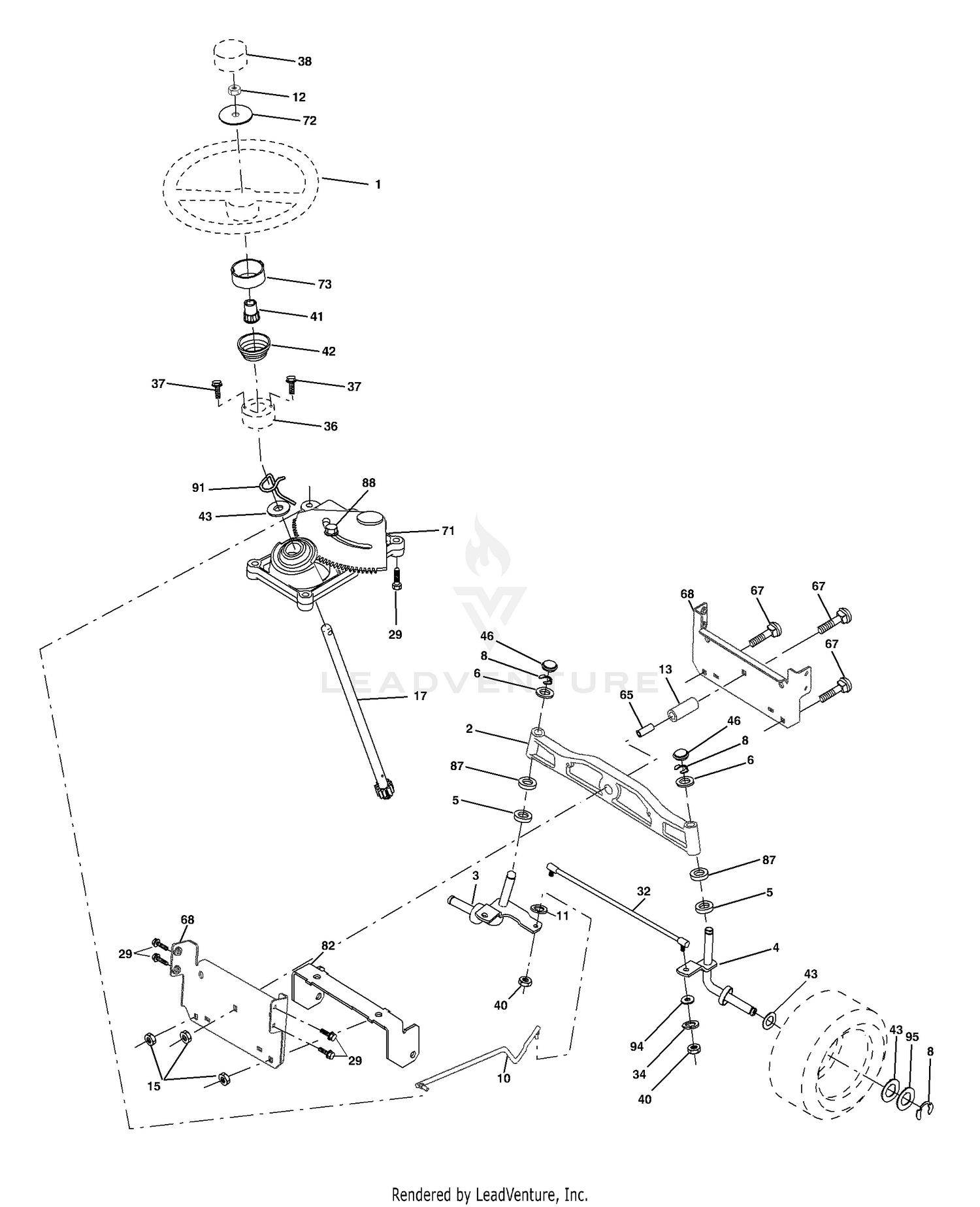

| Ref | Part Number | Description |
|---|
| 1 |
159944X428 |
Wheel Steering Price: Call Us |
| 2 |
184706 |
Axle Asm Price: Call Us |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 4 |
105-7822 |
DECAL-CAUTION Price: $13.82 |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 5 |
21-2660-01 |
PLATE-SIDE This part replaces 21-2660. Price: $299.86 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 6 |
32128-19 |
NUT-HF Price: $0.99 |
| 7 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 9 |
105-2596-01 |
FENDER ASM Price: $104.53 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 10 |
3217-6 |
NUT-HEX Price: $1.19 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
106-5190 |
BATTERY This part replaces 55-7290. Price: $170.85 |
| 12 |
24-6390 |
STUD-HOLDDOWN, BATTERY Price: $19.83 |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 unf Price: Call Us |
| 13 |
136518 |
Spacer Bearing Axle Front Price: Call Us |
| 13 |
32103-2 |
NUT-WING Price: $0.68 |
| 14 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 15 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 15 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 16 |
27-7290 |
DECAL-PTO Price: $17.38 |
| 17 |
177883 |
Shaft Asm. Steering Price: Call Us |
| 17 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 18 |
28-1280 |
DISCONTINUED Price: Call Us |
| 19 |
105-2530 |
CABLE-BATTERY (POS) Price: $62.32 |
| 20 |
24-6420-03 |
HOLDDOWN-BATTERY This part replaces 24-6420. Price: $55.90 |
| 21 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 24 |
2412-39 |
CLAMP-R Price: $1.70 |
| 26 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 27 |
67-1710 |
DECAL-WARNING Price: $7.83 |
| 28 |
38-4550-03 |
COVER-INSTRUMENTS This part replaces 38-4550. Price: $448.71 |
| 29 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 29 |
92-7802 |
DECAL-INSTR., START Price: $22.12 |
| 30 |
92-7800 |
BATTERY COVER ASM Price: $65.49 |
| 31 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 32 |
171888 |
Rod Tie Price: Call Us |
| 32 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 33 |
322-6 |
SCREW-HH Price: $0.45 |
| 34 |
10040500 |
Washer Lock 5/16 Price: Call Us |
| 34 |
2412-74 |
R-CLAMP Price: $2.37 |
| 35 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 36 |
155105 |
Bushing Strg Price: Call Us |
| 36 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 37 |
152927 |
Screw Price: Call Us |
| 37 |
32128-13 |
NUT-HF Price: $1.79 |
| 38 |
159946X428 |
Insert Cap Strg Wh Price: Call Us |
| 38 |
53-4420 |
DECAL-GAS Price: $10.56 |
| 39 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 40 |
73540500 |
Crownlock Nut 5/16-24 unf Price: Call Us |
| 40 |
93-3183 |
TOOL BOX ASM Price: $240.67 |
| 41 |
159945 |
Adaptor Wheel Strg Price: Call Us |
| 41 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 42 |
163888X428 |
Boot Steering Price: Call Us |
| 42 |
68-8610-01 |
EXTENSION-FENDER This part replaces 68-8610. Price: $186.20 |
| 43 |
121749X |
Washer 25/32 1 1/4 x 16 Ga. Price: Call Us |
| 43 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 44 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 45 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 46 |
184946X505 |
Cap Spindle Price: Call Us |
| 46 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 47 |
88-0070-01 |
PLATE-FLOOR This part replaces 88-0070. Price: $169.68 |
| 48 |
98-3883 |
CLAMP-WIRE Price: $0.81 |
| 49 |
93-3185 |
COVER ASM This part replaces 93-3184. Price: $144.25 |
| 51 |
18-2770 |
CABLE-GROUND Price: $47.33 |
| 52 |
92-7801 |
SHIELD-COVER, BATTERY Price: $12.83 |
| 53 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 54 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 55 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 56 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 57 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 58 |
32128-20 |
NUT-HF Price: $0.99 |
| 59 |
322-3 |
SCREW-HH Price: $0.79 |
| 60 |
105-0002-03 |
Bracket-Relay Price: Call Us |
| 61 |
70-1480 |
RELAY Price: $105.19 |
| 62 |
321-4 |
SCREW-HH Price: $0.99 |
| 63 |
32128-33 |
NUT-HF Price: $0.25 |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72110618 |
Bolt Rdhd Sqnk 3/8-16 x 2-1/4 Price: Call Us |
| 68 |
169827 |
Axle, Brace Price: Call Us |
| 71 |
175146 |
Steering Asm. Price: Call Us |
| 72 |
19182411 |
Washer 9/16 ID x 1-1/2 OD 11 Ga. Price: Call Us |
| 73 |
160135X428 |
Extension Steering Price: Call Us |
| 82 |
169835 |
Bracket Susp. Chassis Front Price: Call Us |
| 87 |
173966 |
Washer Flat .781 x 1-1/2 x .15 Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 unc Price: Call Us |
| 91 |
175553 |
Clip Steering Price: Call Us |
| 94 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga. Price: Call Us |
