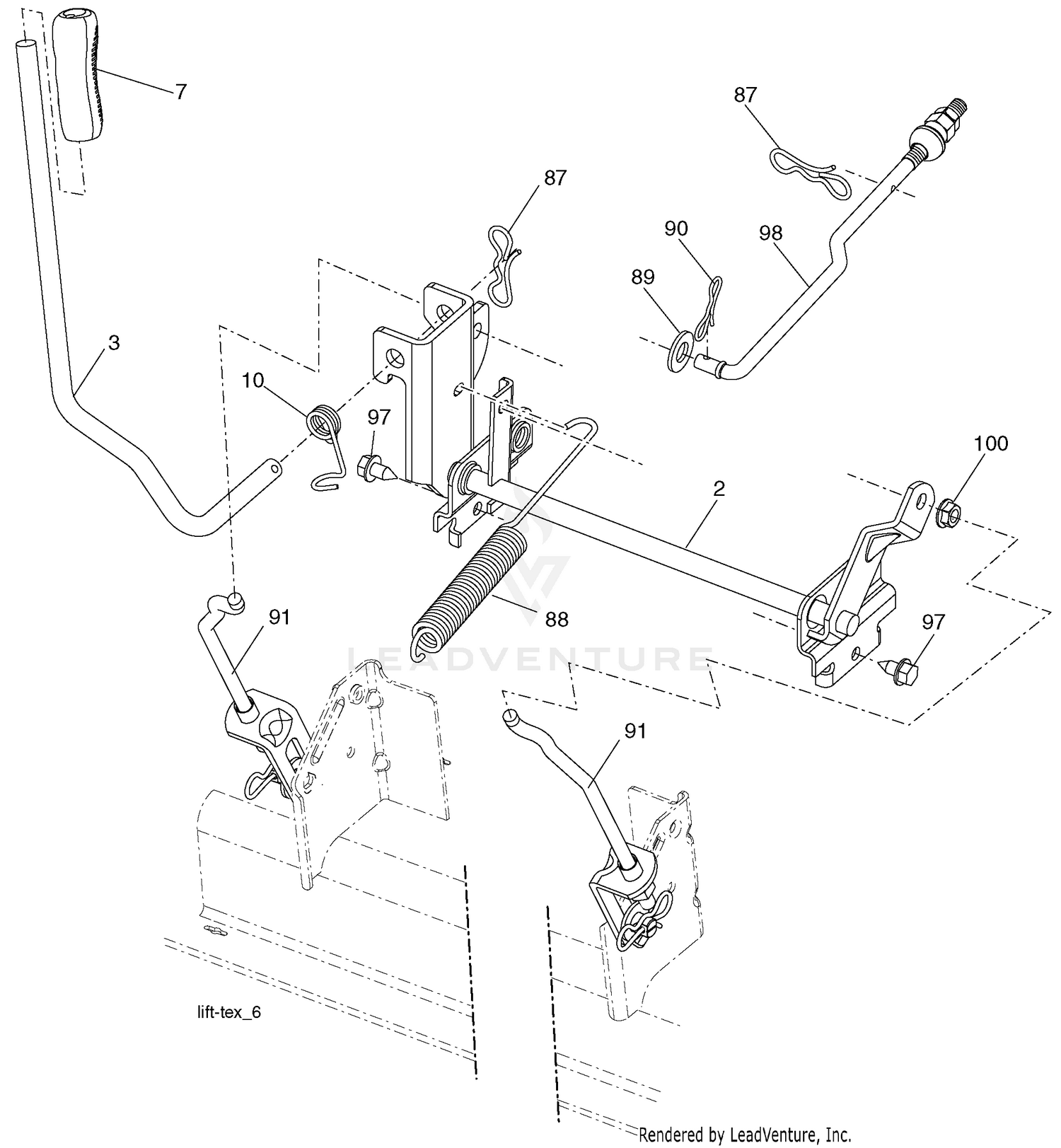

| Ref | Part Number | Description |
|---|
| 2 |
195223 |
Shaft Asm., Lift Price: Call Us |
| 3 |
107-2554 |
DECAL-PANEL, CONTROL Price: $41.00 |
| 3 |
195231 |
Lever Asm., Lift RH Price: Call Us |
| 5 |
120-2244 |
HOURMETER This part replaces 66-2950. Price: $48.06 |
| 6 |
98-2160 |
VOLTMETER Price: $100.25 |
| 7 |
196492X421 |
Grip, Lever Price: Call Us |
| 7 |
321-4 |
SCREW-HH Price: $0.99 |
| 8 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 10 |
196314 |
Spring Torsion Price: Call Us |
| 10 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 11 |
70-1480 |
RELAY Price: $105.19 |
| 12 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 16 |
83-0040 |
CONTROL-CHOKE Price: $36.29 |
| 17 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 18 |
83-0030 |
CONTROL-THROTTLE Price: $39.07 |
| 19 |
104-2541 |
SWITCH ASM This part replaces 88-9830. Price: $36.70 |
| 20 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 21 |
3290-134 |
SCREW Price: $0.27 |
| 23 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 87 |
194209 |
Pin Cotter 7/16 Bow Tie Lock Price: Call Us |
| 88 |
410710 |
Spring Lift Assist Price: Call Us |
| 89 |
19191912 |
Washer Clear Zinc Price: Call Us |
| 90 |
194208 |
Pin Cotter 5/16 Bow Tie Lock Price: Call Us |
| 91 |
195181 |
Link Asm. Lift Rear Price: Call Us |
| 97 |
17000612 |
Screw 3/8-16 x .75 Smgml Tap/R.Z Price: Call Us |
| 98 |
195270 |
Link Lift Susp. Front Mower Price: Call Us |
