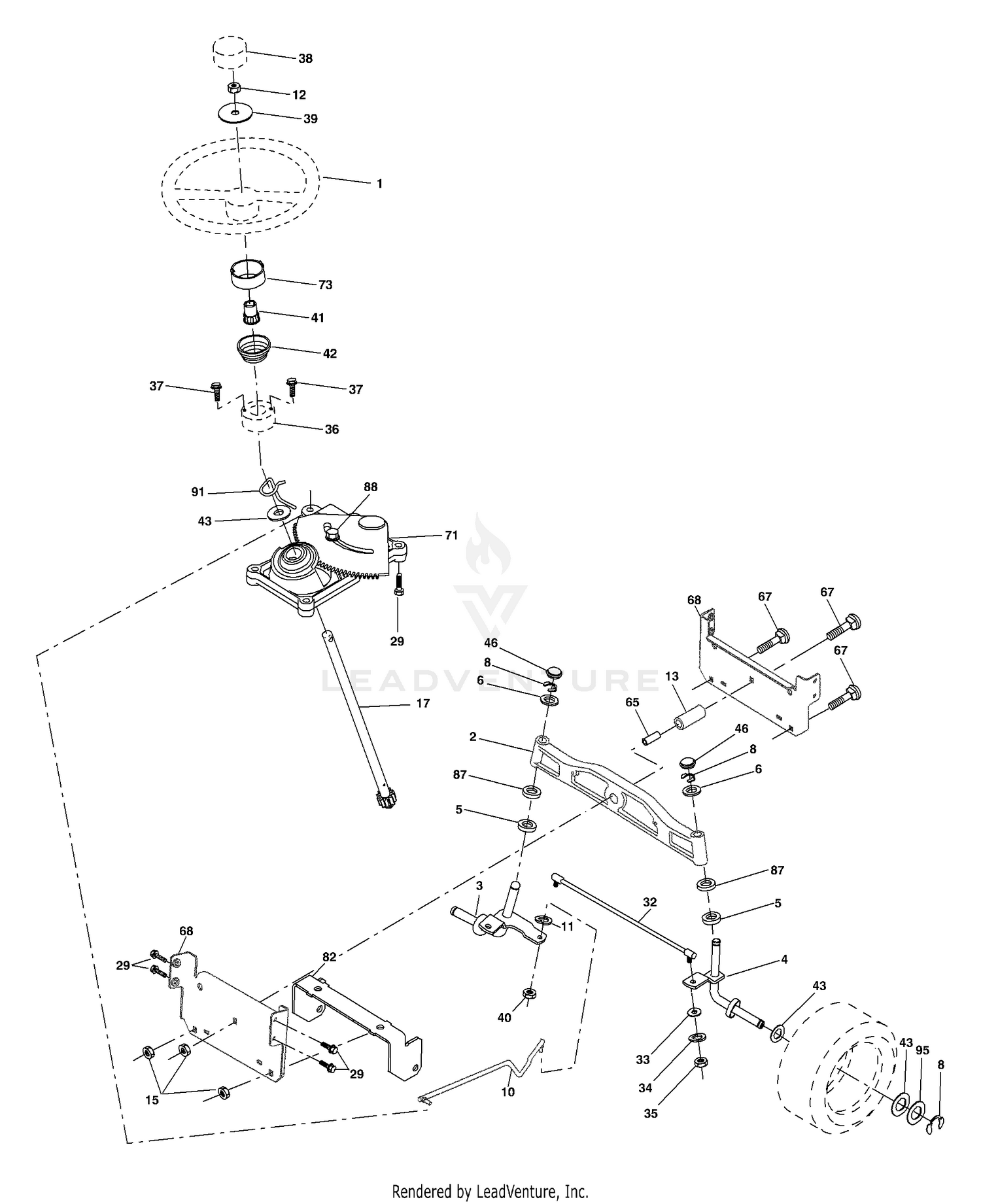

| Ref | Part Number | Description |
| 1 |
159944X428 |
Wheel Steering Price: Call Us |
| 1 |
99-1837 |
CRANKCASE ASM Price: $8,132.87 |
| 2 |
184706 |
Axle Asm Price: Call Us |
| 3 |
110-6192 |
PLUG This part replaces 70-3370. Price: $5.13 |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 5 |
107-4809 |
PIPE-JET, OIL Price: $37.93 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 6 |
99-1840 |
PLUG-CAM Price: $32.32 |
| 7 |
99-1841 |
PIN-DOWEL Price: $7.59 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
70-3000 |
PIN Price: $2.02 |
| 9 |
93-3365 |
PIN-DOWEL Price: $3.29 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 10 |
99-1842 |
PIN-SPRING Price: $1.69 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
99-1853 |
SEAL-SIDE Price: $4.04 |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 unf Price: Call Us |
| 12 |
99-1843 |
BUSHING Price: $9.86 |
| 13 |
136518 |
Spacer Bearing Axle Front Price: Call Us |
| 13 |
99-1844 |
SHAFT-IDLER Price: $64.61 |
| 14 |
56-0100 |
PLUG-DRAIN Price: $6.55 |
| 15 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 15 |
86-6240 |
PLUG-TAPERED Price: $5.11 |
| 16 |
99-1845 |
PLUG-TAPER Price: $3.04 |
| 17 |
177883 |
Shaft Asm. Steering Price: Call Us |
| 17 |
56-1310 |
SWITCH ASM Price: $40.76 |
| 29 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 32 |
171888 |
Rod Tie Price: Call Us |
| 33 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga. Price: Call Us |
| 34 |
10040500 |
Washer Lock Hlcl Spr 5/16 Price: Call Us |
| 35 |
73540500 |
Crownlock Nut 5/16-24 unf Price: Call Us |
| 36 |
155105 |
Bushing Strg Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
159946X428 |
Insert Cap Strg Wh Price: Call Us |
| 39 |
19182411 |
Washer 9/16 ID x 1-1/2 OD 11Ga. Price: Call Us |
| 40 |
73540600 |
Nut Crownlock 3/8-24 Price: Call Us |
| 41 |
159945 |
Adaptor Wheel Strg Price: Call Us |
| 42 |
163888X428 |
Boot Steering Price: Call Us |
| 43 |
121749X |
Washer 25/32 1 1/4 x 16 Ga. Price: Call Us |
| 46 |
184946X505 |
Cap Spindle Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72110618 |
Bolt, Rdhd Sq 3/8-16 unc x 2-1/4 Price: Call Us |
| 68 |
169827 |
Axle, Brace Price: Call Us |
| 71 |
175146 |
Steering Asm. Price: Call Us |
| 73 |
160135X428 |
Extension Steering Stealth Price: Call Us |
| 82 |
169835 |
Bracket Susp. Chassis Front Price: Call Us |
| 87 |
173966 |
Washer Flat .781 x 1-1/2 x .15 Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 unc Price: Call Us |
| 91 |
175553 |
Clip Steering Price: Call Us |
| 201 |
51-5600 |
SEALING CAP This part replaces 107-4808. Price: $20.67 |
