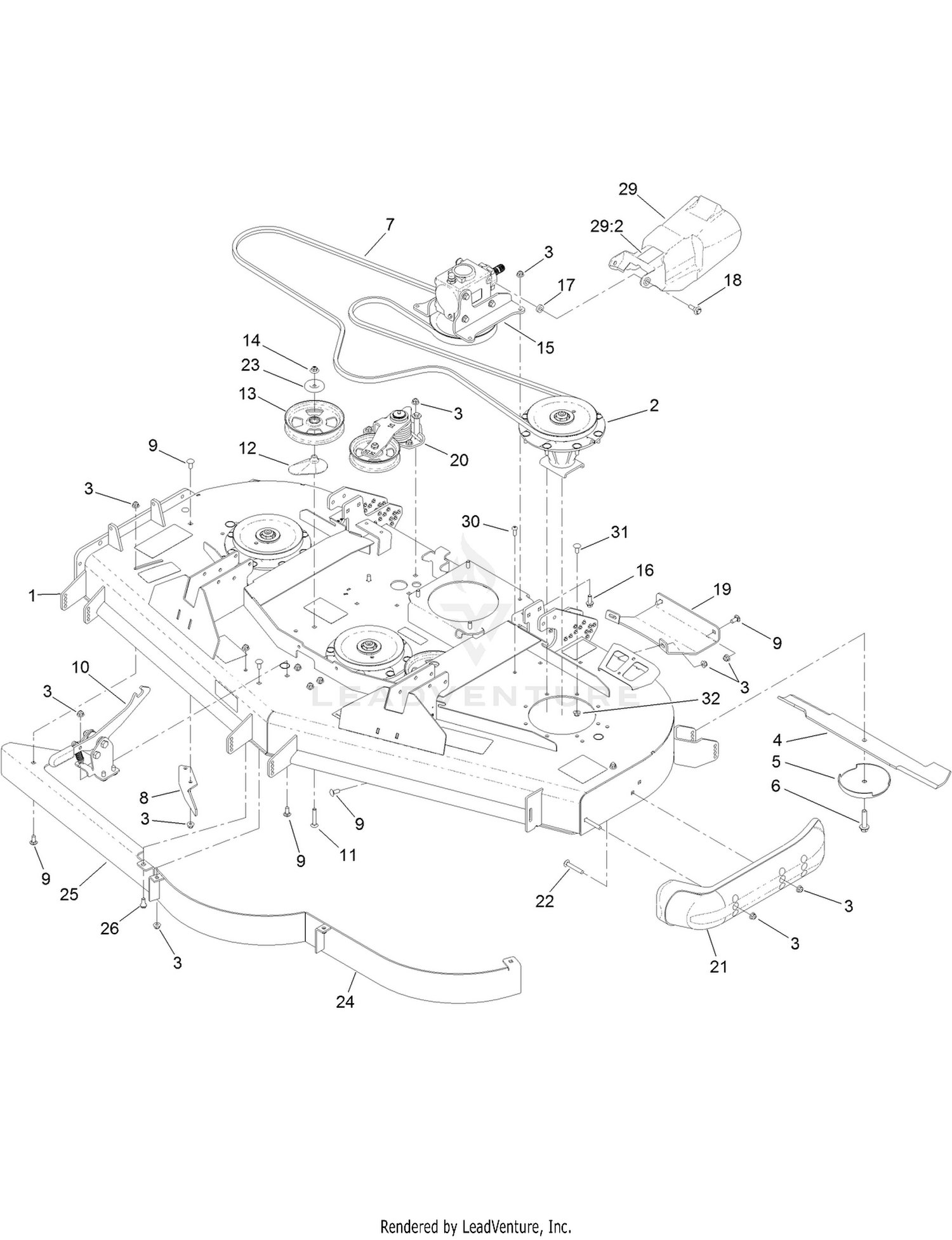

| Ref | Part Number | Description |
|---|
| 1 |
138-4511SP |
DECK W/DECALS 72SD Price: $3,235.21 |
| 2 |
138-4514 |
SPINDLE ASM Price: $501.90 |
| 3 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 4 |
110-0622-03 |
BLADE-ROTARY, HIGH FLOW Price: $38.49 |
| 5 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 6 |
92-5816 |
BOLT-BLADE Price: $4.93 |
| 7 |
126-2538 |
BELT-DRIVE, DECK Price: $161.99 |
| 8 |
106-3216-01 |
BAFFLE-DISCHARGE Price: $23.99 |
| 9 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 10 |
147-0070 |
LATCH ASM This part replaces 139-0888. Price: $110.77 |
| 11 |
3231-40 |
BOLT-CARR, SHORT NECK Price: $1.27 |
| 12 |
109-2872 |
SPACER-PULLEY Price: $20.99 |
| 13 |
136-5404 |
PULLEY-IDLER, FLAT Price: $40.08 |
| 14 |
109-6658 |
NUT-FLANGE, NI Price: $0.89 |
| 16 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 17 |
5-0652 |
SPACER Price: $5.35 |
| 18 |
109-9840 |
SCREW-SHOULDER, HHF Price: $4.19 |
| 19 |
137-2560-01 |
PLATE-SKID Price: Call Us |
| 20 |
138-0266 |
TENSIONER ASM Price: $288.53 |
| 21 |
112-1479 |
SKID-BUMPER, DECK Price: $95.09 |
| 22 |
3231-44 |
SCREW-CARR Price: $2.39 |
| 23 |
126-8043 |
SHIELD-DUST Price: $2.39 |
| 24 |
138-7328-0P |
BAFFLE ASM [PRIMED] This part replaces 138-7328-01. Price: $235.48 |
| 25 |
138-6051-01 |
PLATE-BAFFLE Price: $100.99 |
| 26 |
94-7582 |
BOLT-SHOULDER Price: $3.09 |
| 29 |
139-6301 |
PTO GUARD W/DECALS Price: $63.30 |
| 30 |
3274-80 |
SCREW-HH Price: $1.76 |
| 31 |
3230-10 |
BOLT-CARR Price: $0.50 |
