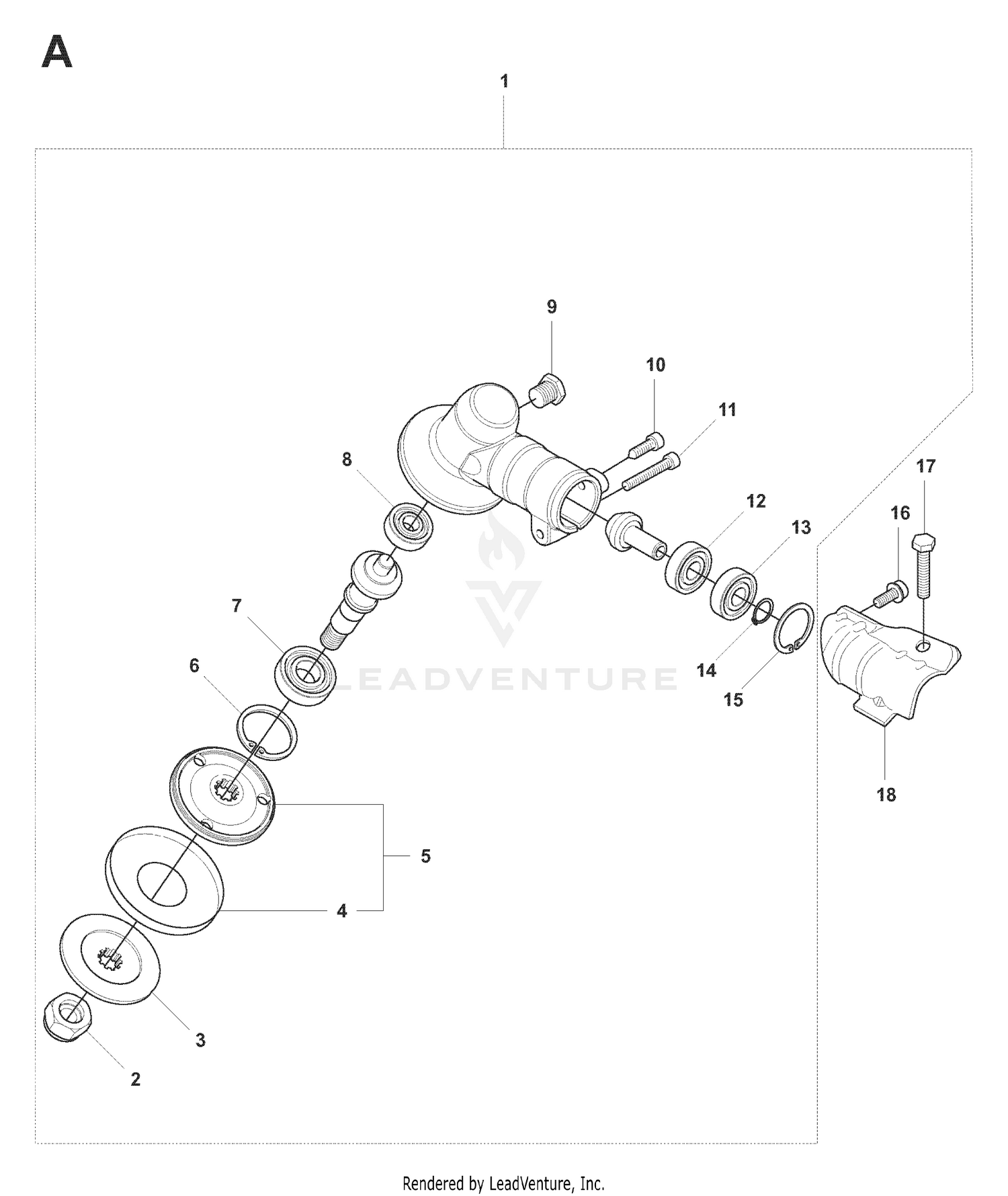

| Ref | Part Number | Description |
|---|
| 1 |
110-4682 |
FRONT COVER ASM Price: $575.97 |
| 1 |
536503801 |
BEVEL GEAR ASSY This part replaces 537199202. Price: $99.99 |
| 2 |
110-4466 |
SHIELD-PULLEY, RH Price: $264.26 |
| 2 |
503856301 |
GEARHEAD NUT - BRUSHCUTTER Price: $5.99 |
| 3 |
110-4467 |
SHIELD-PULLEY, LH Price: $264.26 |
| 3 |
537285601 |
SUPPORT FLANGE Price: $9.99 |
| 4 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 4 |
537234901 |
DRIVE DISC This part replaces 537292601. Price: $19.99 |
| 5 |
537234901 |
DRIVE DISC Price: $19.99 |
| 5 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 6 |
110-4697 |
MOUNT-ISOLATED Price: $10.36 |
| 6 |
735312810 |
RETAINING RING SGH 28 Price: $3.99 |
| 7 |
525831801 |
HOLDER BALL BEARING This part replaces 503252401. Price: $14.99 |
| 8 |
105-4886 |
NUT-TINNERMAN Price: $2.37 |
| 8 |
738219800 |
BALL BEARING 8X22X7/608Z Price: $6.99 |
| 9 |
110-4478 |
SUPPORT-COVER, FRONT Price: $14.38 |
| 9 |
503201501 |
PLUG Price: $4.99 |
| 10 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 10 |
503201412 |
SCREW Price: $2.99 |
| 11 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 11 |
503200725 |
SCREW Price: $2.99 |
| 12 |
105-1069 |
SHIELD-SIDE Price: $110.46 |
| 13 |
738219902 |
BEARING Price: $17.99 |
| 14 |
110-4503-03 |
SUPPORT-SHIELD, LH Price: $98.31 |
| 14 |
735311100 |
RETAINING RING Price: $2.99 |
| 15 |
110-4680 |
RH SHIELD SUPPORT ASM Price: $94.28 |
| 15 |
735312510 |
RETAINING RING Price: $2.99 |
| 16 |
503200712 |
SCREW Price: $4.99 |
| 17 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 17 |
725237071 |
SCREW This part replaces 725237051. Price: $3.99 |
| 18 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 18 |
574306904 |
CLAMP This part replaces 503935501. Price: $11.99 |
| 19 |
2412-120 |
CLAMP-R Price: $6.49 |
| 21 |
110-4422-03 |
SHIELD-PTO Price: $47.69 |
| 22 |
104-2408 |
SCREW-HSBH Price: $2.19 |
| 23 |
3256-61 |
WASHER-FLAT Price: $1.79 |
