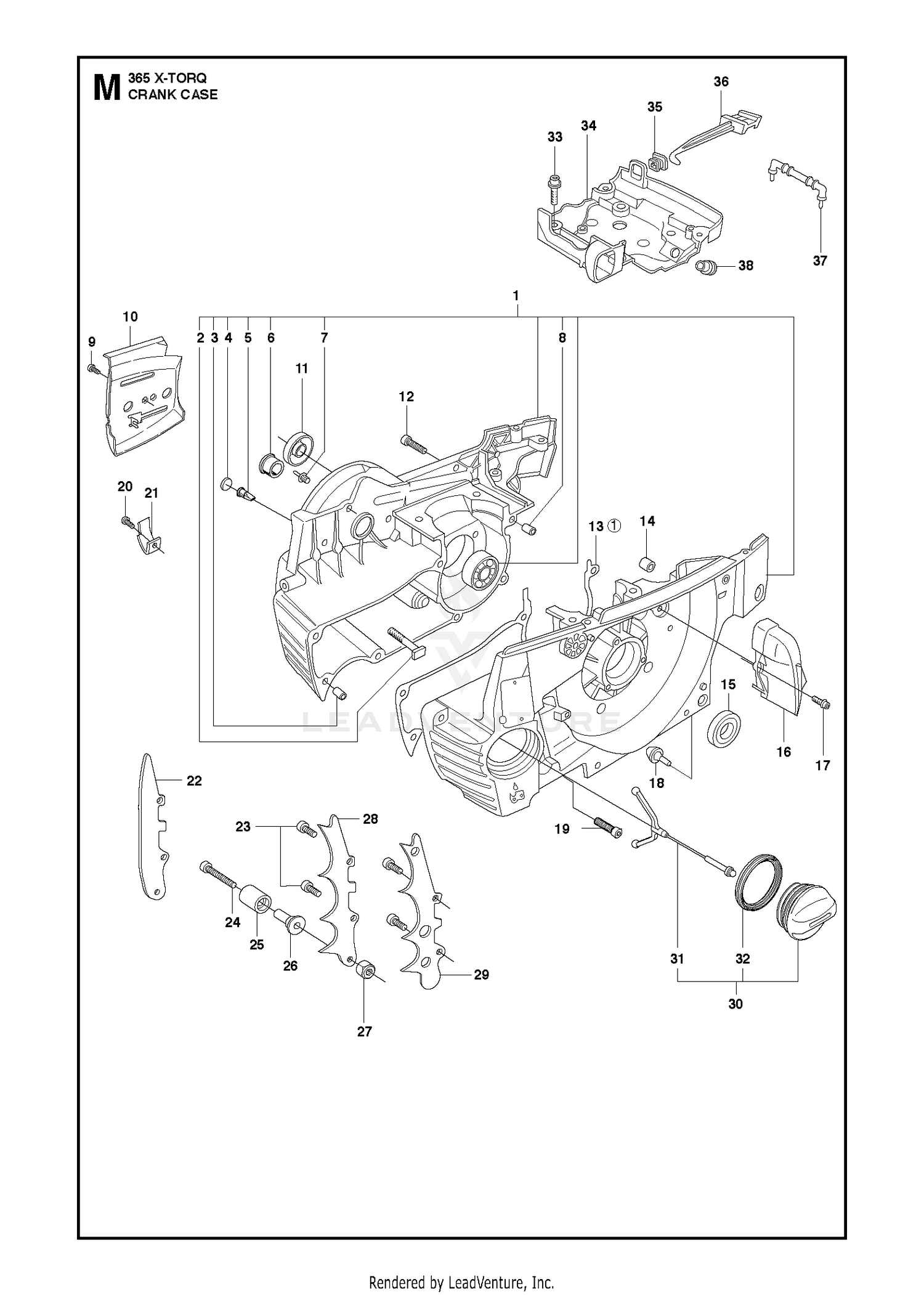

CRANKCASE
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 32128-17 | NUT-LOCK, FLANGE Price: $0.25 |
| 1 | 503626819 | CRANKCASE ASSY This part replaces 503626813. Price: $179.99 |
| 2 | 104-2408 | SCREW-HSBH Price: $2.19 |
| 2 | 537051301 | BOLT Price: $6.99 |
| 3 | 3256-14 | WASHER-FLAT Price: $0.39 |
| 3 | 593806001 | GUIDE BUSHING This part replaces 501270801. Price: $4.99 |
| 4 | 3290-379 | TIE-CABLE Price: $0.31 |
| 4 | 530026119 | VALVE-CHECK (DUCKBILL) Price: $4.99 |
| 5 | 115-8835 | HOSE-AIR DUCT Price: $84.83 |
| 5 | 537403502 | SINTERED BRONZE FILTER This part replaces 537403501. Price: $2.99 |
| 6 | 119-4517 | CLAMP-HOSE Price: $5.63 |
| 6 | 503967001 | BUSHING Price: $5.99 |
| 7 | 120-0376 | HOSE-DRAIN, LH Price: $38.36 |
| 7 | 503751801 | PIN Price: $3.99 |
| 8 | 120-0377 | HOSE-DRAIN, RH Price: $44.73 |
| 8 | 593806001 | GUIDE BUSHING This part replaces 501270801. Price: $4.99 |
| 9 | 2412-141 | CLAMP-DRIVE, WORM Price: $2.40 |
| 9 | 503212810 | SCREW Price: $2.99 |
| 10 | 115-8840 | VALVE-HEATER Price: $224.24 |
| 10 | 537013701 | BAR PLATE Price: $9.99 |
| 11 | 115-8844 | HOSE Price: $37.24 |
| 11 | 503260301 | SEAL Price: $19.99 |
| 12 | 120-0375 | HOSE (THERMOSTAT TO VALVE) Price: $243.11 |
| 12 | 503749301 | SCREW Price: $2.99 |
| 13 | 120-0346 | HOSE ASM Price: $132.58 |
| 13 | 503627201 | GASKET Price: $4.99 |
| 14 | 115-8837 | HOSE ASM Price: $834.15 |
| 14 | 503857301 | PROTECTOR Price: $3.99 |
| 15 | 115-8838 | HOSE ASM Price: $516.74 |
| 15 | 505275719 | SEAL RING Price: $11.99 |
| 16 | 120-0384 | HOSE ASM Price: $914.19 |
| 16 | 503628401 | JET Price: $5.99 |
| 17 | 120-0385 | HOSE ASM Price: $949.75 |
| 17 | 503200712 | SCREW This part replaces 503200212. Price: $4.99 |
| 18 | 115-5581 | WASHER-FLAT Price: $7.33 |
| 18 | 503846101 | BUFFER Price: $4.99 |
| 19 | 115-5570 | BUSHING-THIN Price: $5.22 |
| 19 | 503200870 | SCREW Price: $2.99 |
| 20 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 20 | 725533165 | SCREW IHSCM Price: $2.99 |
| 21 | 3229-4 | SCREW-CARR Price: $0.34 |
| 21 | 501686801 | CHAIN CATCHER Price: $4.99 |
| 22 | 119-4505 | STRAP-MOUNTING Price: $14.38 |
| 23 | 117-2782 | GROMMET Price: $4.26 |
| 23 | 503212616 | SCREW Price: $2.99 |
| 24 | 119-4503 | COVER-CONDENSER This part replaces 115-5552. Price: $1,483.25 |
| 24 | 503200780 | SCREW IHSCFM Price: $3.99 |
| 25 | 537024401 | SPACER Price: $5.99 |
| 26 | 537089201 | CHAIN CATCHER Price: $5.99 |
| 27 | 503222401 | NUT Price: $1.99 |
| 28 | 537017101 | FELLING DOG Price: $11.99 |
| 29 | 503647902 | FELLING DOG Price: $11.99 |
| 30 | 537215207 | TANK CAP Price: $9.99 |
| 31 | 503578901 | TANK LOCK Price: $4.99 |
| 32 | 589241101 | SEALING Price: $4.99 |
| 33 | 503200712 | SCREW This part replaces 503200212. Price: $4.99 |
| 34 | 597989501 | CARBURETTOR AREA BASE ASSY This part replaces 588093701. Price: $8.99 |
| 35 | 503734401 | GROMMET Price: $3.99 |
| 36 | 515982201 | CHOKE Price: $5.99 |
| 37 | 579468901 | SUPPORT Price: $3.99 |
| 38 | 537095401 | GROMMET Price: $4.99 |
