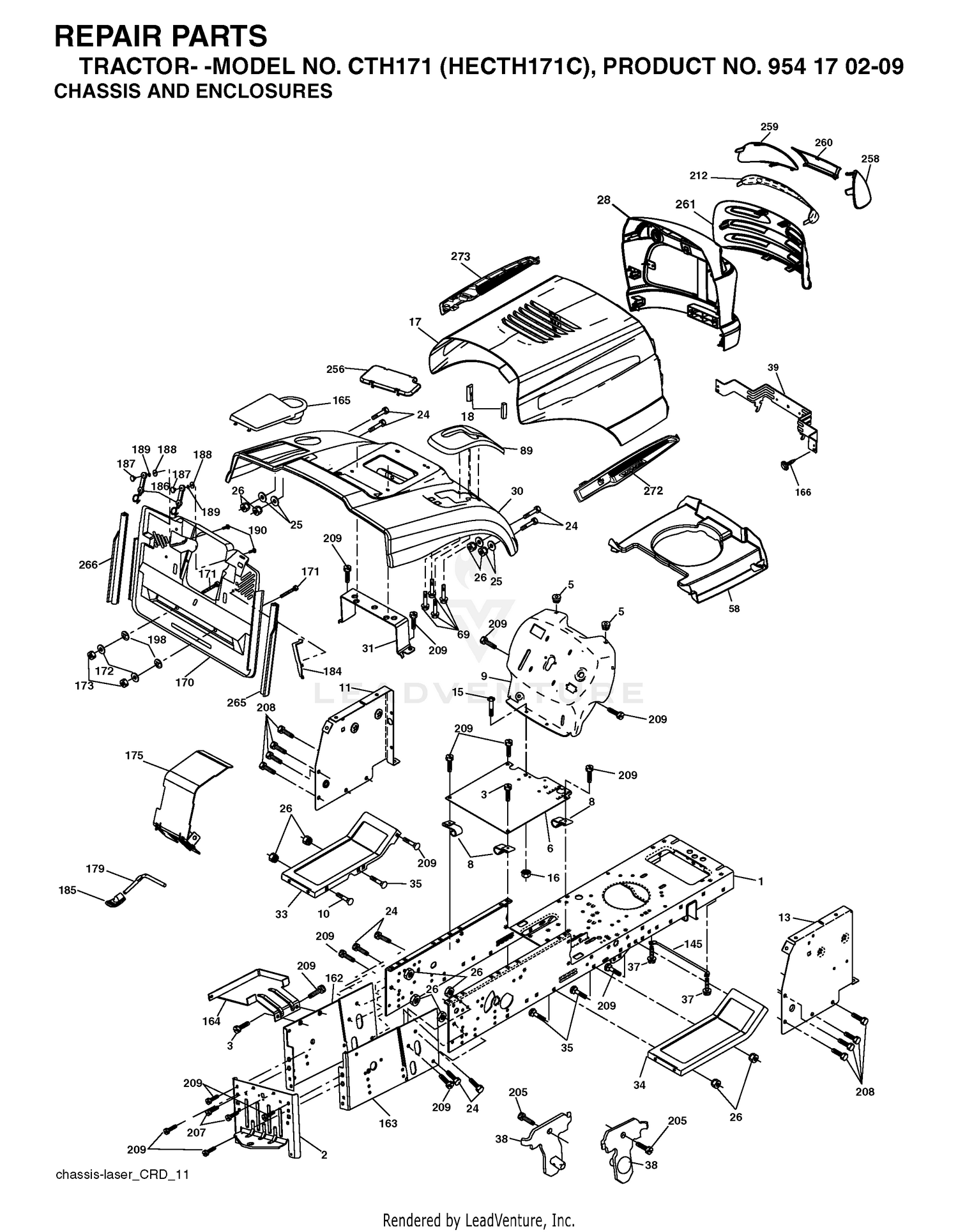

| Ref | Part Number | Description |
|---|
| 1 |
532174620 |
CHASSIS Price: $119.99 |
| 1 |
94-3645 |
KEY Price: $13.07 |
| 2 |
583101001 |
DRAWBAR.CRD This part replaces 532180384. Price: $64.99 |
| 2 |
94-6359 |
SHAFT-DRIVE Price: $675.42 |
| 3 |
104-4046 |
BEARING-CUP Price: $40.66 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
98-4640 |
SCREW-CAP Price: $7.46 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 5 |
98-4644 |
PLATE-COVER Price: $310.82 |
| 6 |
105-9762 |
WASHER Price: $5.90 |
| 6 |
583133601 |
SADDLE.FLAT.LT/YT/CRD.2003 This part replaces 532184419. Price: $12.99 |
| 7 |
100-3182 |
SHIM KIT Price: $404.35 |
| 8 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 8 |
98-4639 |
BEARING-CONE Price: $74.90 |
| 9 |
532188911 |
NEEDS DESCRIPTION Price: Call Us |
| 9 |
94-3646 |
KEY Price: $6.56 |
| 10 |
104-4888 |
SWASHPLATE Price: $1,258.52 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 11 |
76-6070 |
ROTATING KIT Price: $1,788.80 |
| 13 |
104-0429 |
PLATE-VALVE Price: $524.20 |
| 13 |
532172106 |
PANEL ASM, DASH RH Price: $14.99 |
| 15 |
76-6150 |
PIN-DOWEL Price: $1.42 |
| 15 |
874180512 |
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 Price: $3.99 |
| 16 |
105-3813 |
ENDCOVER SUB ASM Price: $1,421.33 |
| 16 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 17 |
588251301 |
KIT.HOOD.PNT.STEEL.LASER.SV668 This part replaces 532188893. Price: $49.99 |
| 18 |
532184921 |
BUMPER.HOOD.LARGE.1.75" Price: $4.99 |
| 18 |
74-9280 |
PLUG ASM Price: $35.55 |
| 19 |
104-4889 |
RELIEF VALVE ASM Price: $818.85 |
| 20 |
105-3812 |
VALVE-CHECK Price: $570.10 |
| 21 |
105-3811 |
VALVE-BYPASS Price: $170.14 |
| 22 |
76-6170 |
CAPSCREW Price: $2.65 |
| 23 |
76-6160 |
CAPSCREW Price: $3.95 |
| 24 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 25 |
98-4645 |
PLATE-COVER Price: $645.16 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 28 |
532183538 |
Price: Call Us |
| 29 |
100-3176 |
HOUSING ASM Price: $1,172.62 |
| 30 |
532179645 |
NEEDS DESCRIPTION Price: Call Us |
| 31 |
252-71 |
WASHER-THRUST Price: $14.39 |
| 31 |
532165156 |
BRACKET SUPPORT FENDER Price: $5.99 |
| 32 |
252-66 |
BEARING-THRUST Price: $10.61 |
| 33 |
33-3720 |
WASHER Price: $11.87 |
| 33 |
532182507 |
FOOTREST.LH.BLACK This part replaces 532181057. Price: $37.99 |
| 34 |
532182508 |
FOOTREST.RH.BLACK This part replaces 532181058. Price: $22.99 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
583117401 |
BRACKET ARM.PIVOT.REAR This part replaces 532181748. Price: $9.99 |
| 39 |
532407807 |
BRACKET PIVOT This part replaces 532174714. Price: $27.99 |
| 39 |
98-4635 |
INSERT-PLATE, CAM Price: $167.59 |
| 42 |
74-9040 |
COUPLER Price: $73.91 |
| 58 |
532187154 |
NEEDS DESCRIPTION Price: Call Us |
| 69 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 89 |
532441516 |
COVER.BATT.CUPHOLDER.CRD This part replaces 532181099. Price: $17.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 162 |
583100801 |
BRKT.EXTEN.CHASSIS.LH.CRD This part replaces 532180382. Price: $48.99 |
| 163 |
583100901 |
BRKT.EXTEN.CHASSIS.RH.CRD This part replaces 532180383. Price: $43.99 |
| 164 |
532165605 |
SUPPORT Price: $59.99 |
| 165 |
532441516 |
COVER.BATT.CUPHOLDER.CRD This part replaces 532181100. Price: $17.99 |
| 166 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 170 |
532178862 |
NEEDS DESCRIPTION Price: Call Us |
| 171 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 172 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 173 |
873510600 |
NUT Price: $4.99 |
| 175 |
583707801 |
DOOR.TRAP.FBI.CRD.2004 This part replaces 532188203. Price: $17.99 |
| 179 |
583100601 |
ROD.PIVOT.FBI.CRD This part replaces 532188202. Price: $17.99 |
| 184 |
532174662 |
BRACKET.ACTUATOR.BAGGER.SRD Price: $4.99 |
| 185 |
532181101 |
Price: Call Us |
| 186 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 187 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 188 |
819061216 |
WASHER Price: $3.99 |
| 189 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 190 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 198 |
532168937 |
NUT Price: $2.99 |
| 205 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 258 |
532183378 |
LENS.HUSQ.LASER LT.CLEAR.LH This part replaces 532185213. Price: $8.99 |
| 259 |
532183379 |
LENS.HUSQ.LASER LT.CLEAR.RH This part replaces 532185214. Price: $8.99 |
| 260 |
532442202 |
COVER.LENS.HUSQ.LASER.LT.498 This part replaces 532185216. Price: $11.99 |
| 261 |
532185212 |
Price: Call Us |
| 265 |
583146701 |
SEAL.SIDE.RH.BAGGER.CRD This part replaces 532185704. Price: $17.99 |
| 266 |
583146601 |
SIDE.SEAL.LH.BAGGER.CRD This part replaces 532185703. Price: $17.99 |
| 272 |
532188896 |
VENT.HOOD.LASER. Price: $12.99 |
| 273 |
532188895 |
VENT.HOOD.LASER. Price: $10.99 |
