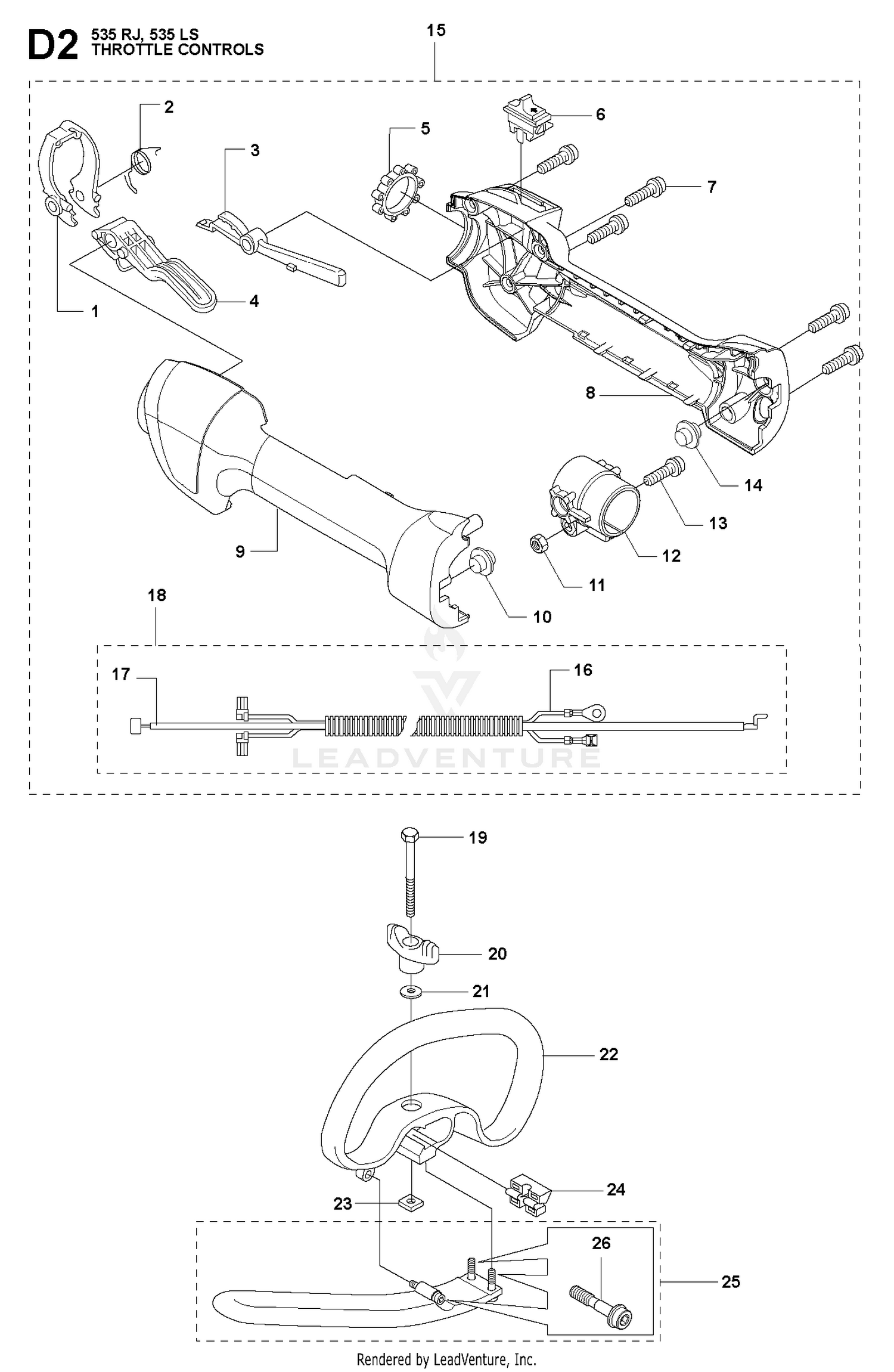

THROTTLE CONTROLS
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503918101 | LEVER Price: $5.99 |
| 2 | 544100801 | RETURN SPRING Price: $3.99 |
| 2 | SG217354 | CRANKSHAFT Price: $474.08 |
| 3 | 121-6905 | MAIN BEARING HOUSING ASM This part replaces SG204577. Price: $827.56 |
| 3 | 503878001 | THROTTLE LOCK Price: $4.99 |
| 4 | 503877903 | THROTTLE TRIGGER Price: $7.99 |
| 4 | SG217154 | ARM-CRANK, RIGHT Price: $447.33 |
| 5 | 503961401 | VIBRATION DAMPER Price: $4.99 |
| 5 | SG207054 | ARM-CRANK Price: $433.85 |
| 6 | 537419001 | STOP BUTTON Price: $7.99 |
| 7 | 503216618 | SCREW Price: $3.99 |
| 7 | SG217054 | ARM-CRANK Price: $451.76 |
| 9 | SG267200 | NUT-HEX Price: $47.55 |
| 10 | 544101702 | VIBRATION ABSORBER Price: $6.99 |
| 10 | SG247540 | WASHER-CLIPPED Price: $60.58 |
| 11 | 731231401 | NUT Price: $1.99 |
| 12 | 544112101 | HOLDER Price: $3.99 |
| 12 | SG257054 | PIN-CRANK Price: $201.54 |
| 13 | 3296-53 | NUT-LOCK, NI Price: $1.47 |
| 13 | 503200320 | SCREW Price: $3.99 |
| 14 | 327-14 | SCREW-HH Price: $2.44 |
| 14 | 544101702 | VIBRATION ABSORBER Price: $6.99 |
| 15 | 544143602 | THROTTLE HANDLE CPL Price: $49.99 |
| 15 | SG217026 | SPROCKET-CRANK Price: $375.05 |
| 16 | 503878506 | SHORT CIRCUIT CABLE Price: $19.99 |
| 16 | SG271517 | SCREW-HH Price: $6.79 |
| 17 | 544171702 | THROTTLE WIRE ASSY Price: $17.99 |
| 17 | SG267500 | SPACER Price: $20.09 |
| 18 | 105-1041 | PIN-SPRING Price: $1.88 |
| 19 | 327-16 | SCREW-HH Price: $5.36 |
| 19 | 725238051 | SCREW M6X50 Price: $2.99 |
| 20 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 20 | 503879001 | KNOB Price: $3.99 |
| 21 | 503230061 | WASHER Price: $2.99 |
| 22 | 544101004 | HANDLE.LOOP Price: $27.99 |
| 23 | 502197101 | NUT Price: $0.25 |
| 24 | 544101101 | SPACER Price: $3.99 |
