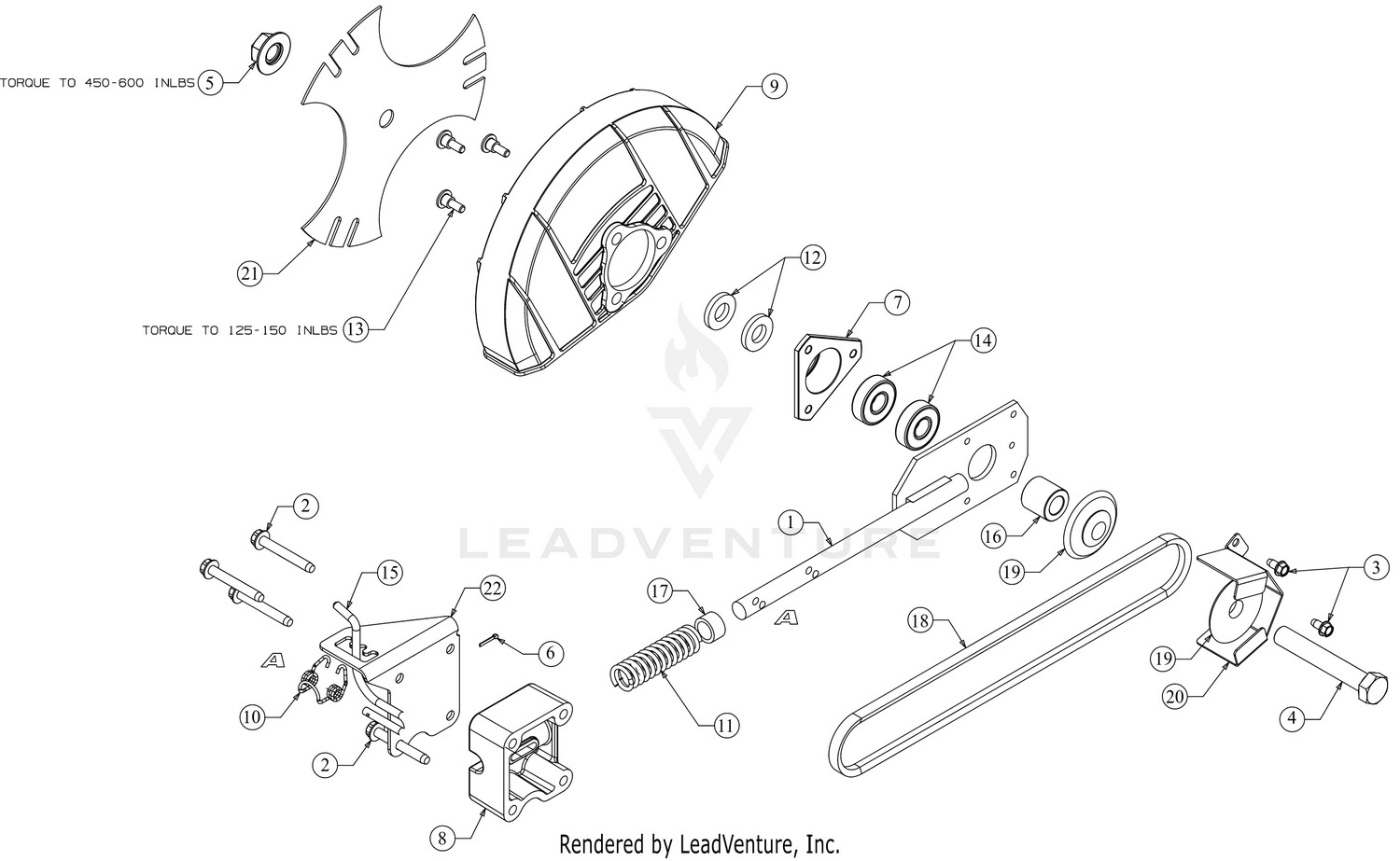

| Ref | Part Number | Description |
|---|
| 1 |
687-02126 |
BLADE PLATE ASSEMBLY Price: $49.22 |
| 2 |
710-04389 |
SCREW Price: $6.01 |
| 3 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 4 |
710-1143A |
SCREW 5/8-18 X 4 GR5 Price: $10.02 |
| 5 |
712-0417A |
HEX NUT Price: $6.50 |
| 6 |
714-3010 |
COTTER PIN-3/32X62 Price: $4.08 |
| 7 |
718-04012 |
BEARING CUP Price: $19.55 |
| 8 |
931-04207 |
BEARING BLOCK Price: $24.30 |
| 9 |
731P05064 |
EDGER BLADE GUARD (W/LABEL) This part replaces 731-05064. Price: $23.87 |
| 10 |
732-0188A |
TORSION SPRING Price: $11.77 |
| 11 |
932-04169 |
COMPRESSION SPRING Price: $9.41 |
| 12 |
736-04088 |
Flat Washer .635x1.24x.181 This part replaces 936-04088. Price: $3.90 |
| 13 |
738-0706D |
Screw This part replaces 738-0706C. Price: $3.89 |
| 14 |
941-0524A |
BALL BEARING Price: $20.36 |
| 15 |
747-04110A |
ADJUSTMENT ROD Price: $15.95 |
| 16 |
950-04105 |
SPACER Price: $13.42 |
| 17 |
750-0547 |
SPACER Price: $4.83 |
| 18 |
954-04032B |
BELT 3L X 35.8 Price: $23.31 |
| 19 |
956-0449 |
SHEAVE Price: $13.09 |
| 20 |
781-0427-0637 |
BELT GUARD- Price: $19.06 |
| 21 |
781-0748-0637 |
BLADE TRI-CUT (POWDER BLACK) Price: $19.07 |
