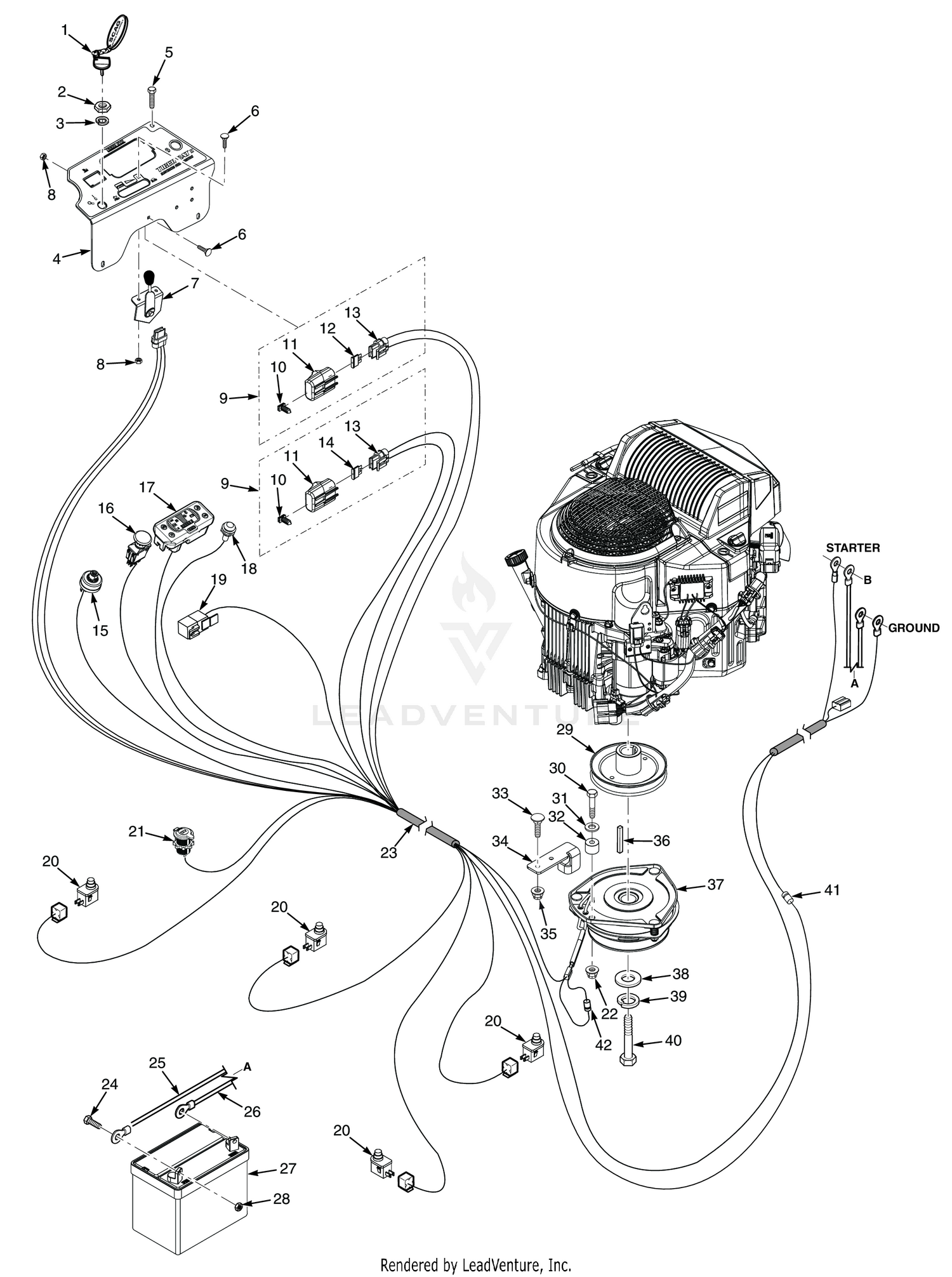

| Ref | Part Number | Description |
|---|
| 1 |
462069 |
Key, Assembly w/Fob Price: Call Us |
| 1 |
5-9700-01 |
HANDLE WA This part replaces 5-9700. Price: $298.49 |
| 2 |
3-0516 |
DISCONTINUED Price: Call Us |
| 2 |
48017-04 |
Nut, 5/8-32 Special Price: Call Us |
| 3 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 3 |
48017-03 |
LOCK WASHER, 5/8" INTERNAL TOOTH Price: Call Us |
| 4 |
3-3422 |
ROD-CONTROL Price: $65.54 |
| 4 |
463387 |
Instrument Panel w/Decal Price: Call Us |
| 5 |
04017-04 |
CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX Price: Call Us |
| 5 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 6 |
04003-43 |
Bolt, Carriage #10-24 x 1/2" Price: Call Us |
| 6 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 7 |
485464 |
Control, E-Gov Throttle Price: Call Us |
| 8 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 8 |
3296-27 |
NUT-LOCK, NI Price: $0.27 |
| 9 |
3-0525-01 |
BELL CRANK CLUTCH WA This part replaces 3-0525. Price: $47.73 |
| 9 |
485739 |
Single Fuse Assy., Excluding Fuse Price: Call Us |
| 10 |
3250-4 |
SCREW Price: $1.78 |
| 10 |
482588 |
Clip, Fuse Holder Price: Call Us |
| 11 |
3-0526 |
RETAINER Price: $25.44 |
| 11 |
483643 |
Cover, Sealed Single Price: Call Us |
| 12 |
3296-1 |
NUT-LOCK Price: $0.25 |
| 12 |
485674 |
Fuse, 5 Amp Price: Call Us |
| 13 |
323-30 |
SCREW-HH Price: $22.99 |
| 13 |
483629 |
Fuse Holder Assembly Price: Call Us |
| 14 |
3-1776 |
BUSHING Price: $15.88 |
| 14 |
48298 |
FUSE, 20 AMP BLADE TYPE AUTOMOTIVE Price: Call Us |
| 15 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 15 |
48798 |
KEY SWITCH(INCLUDES MOUNTING HARDWARE) Price: Call Us |
| 16 |
485833 |
Switch, PTO - 10 Amp Price: Call Us |
| 16 |
603773 |
LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 17 |
23-7410 |
DISCONTINUED This part replaces 3-5622. Price: Call Us |
| 17 |
484721 |
Tiger Eye, Cluster Gauge Price: Call Us |
| 18 |
481182 |
Indicator Light, Glow Plugs (Includes Mounting Hardware) Price: Call Us |
| 18 |
88-8820 |
ROD-CLUTCH This part replaces 3-0520. Price: $38.97 |
| 19 |
3-0530 |
DISCONTINUED Price: Call Us |
| 19 |
483013 |
Relay, 12V 40 AMP Standard Price: Call Us |
| 20 |
3-3418 |
THROTTLE CONTROL ROD *R Price: $87.56 |
| 20 |
481638 |
Switch, Interlock, Normally Open Price: Call Us |
| 21 |
485568 |
Power Plug, 12V Price: Call Us |
| 21 |
5-1978 |
HANDLE ADJ BAR Price: $56.31 |
| 22 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 22 |
3-0616 |
DISCONTINUED Price: Call Us |
| 23 |
3-3417 |
THROTTLE CONTROL Price: $126.58 |
| 23 |
486124 |
Wire Harness, STCII-26FT-EFI Price: Call Us |
| 24 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 25 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 25 |
48029-28 |
Battery Cable, 25" Red Price: Call Us |
| 26 |
32121-7 |
PIN-ROLL, SLOTTED Price: $0.31 |
| 26 |
48029-11 |
Battery Cable, 27" Black (35BV & 37BV-EFI) - Briggs & Stratton Price: Call Us |
| 27 |
3-3421 |
COLLAR Price: $2.00 |
| 28 |
04020-02 |
Nut, 1/4 - 20 Hex Price: Call Us |
| 28 |
3245-2 |
SCREW-SET, HSH Price: $2.58 |
| 29 |
32120-74 |
RING-SNAP Price: $0.54 |
| 29 |
485589 |
Pulley, 5.75" Dia. - 1.125 Bore Price: Call Us |
| 30 |
04001-17 |
Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI) Price: Call Us |
| 30 |
3-3423 |
WASHER Price: $5.67 |
| 31 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 31 |
3249-3 |
SCREW-PRH Price: $0.34 |
| 32 |
431041 |
BUSHING, UHMW Price: Call Us |
| 32 |
49-8110 |
HANDLE GRIP This part replaces 3-8271. Price: $13.80 |
| 33 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 33 |
3251-4 |
SCREW-SRH Price: $0.25 |
| 34 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 34 |
427330 |
ANTI ROTATION Price: Call Us |
| 35 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 35 |
3-0508 |
HANDLE COVER PLT WA Price: $128.40 |
| 36 |
04063-28 |
Key, 1/4 x 1/4 x 3-1/2" Price: Call Us |
| 36 |
3-1541 |
Decal Price: Call Us |
| 37 |
462339 |
Clutch w/Tag GT3.5--FE05 (61) Price: Call Us |
| 37 |
56-9810 |
DISCONTINUED This part replaces 3-0635. Price: Call Us |
| 38 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52) Price: Call Us |
| 38 |
5-1482 |
Bracket Pivot Price: Call Us |
| 39 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 39 |
5-1481 |
DISCONTINUED Price: Call Us |
| 40 |
04102-05 |
Bolt, Hex Head 7/16-20 x 2-3/4” w/Patch, (Kawasaki FX & FT, Yamaha MX) Price: Call Us |
| 40 |
5-1480 |
DISCONTINUED Price: Call Us |
| 41 |
482253 |
Decal, Forward Speed Selector Price: Call Us |
| 41 |
5-0776 |
SPRING Price: $7.98 |
| 42 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 42 |
483958 |
Diode, 600V 6 Amp Price: Call Us |
| 43 |
32120-35 |
RING-RETAINING, EXT Price: $0.25 |
| 44 |
3-0517 |
CLUTCH HANDLE BRKT *R Price: $18.24 |
| 45 |
237-73 |
DISCONTINUED Price: Call Us |
| 483533 |
Knob, |
Throttle Price: Call Us 483533 |
