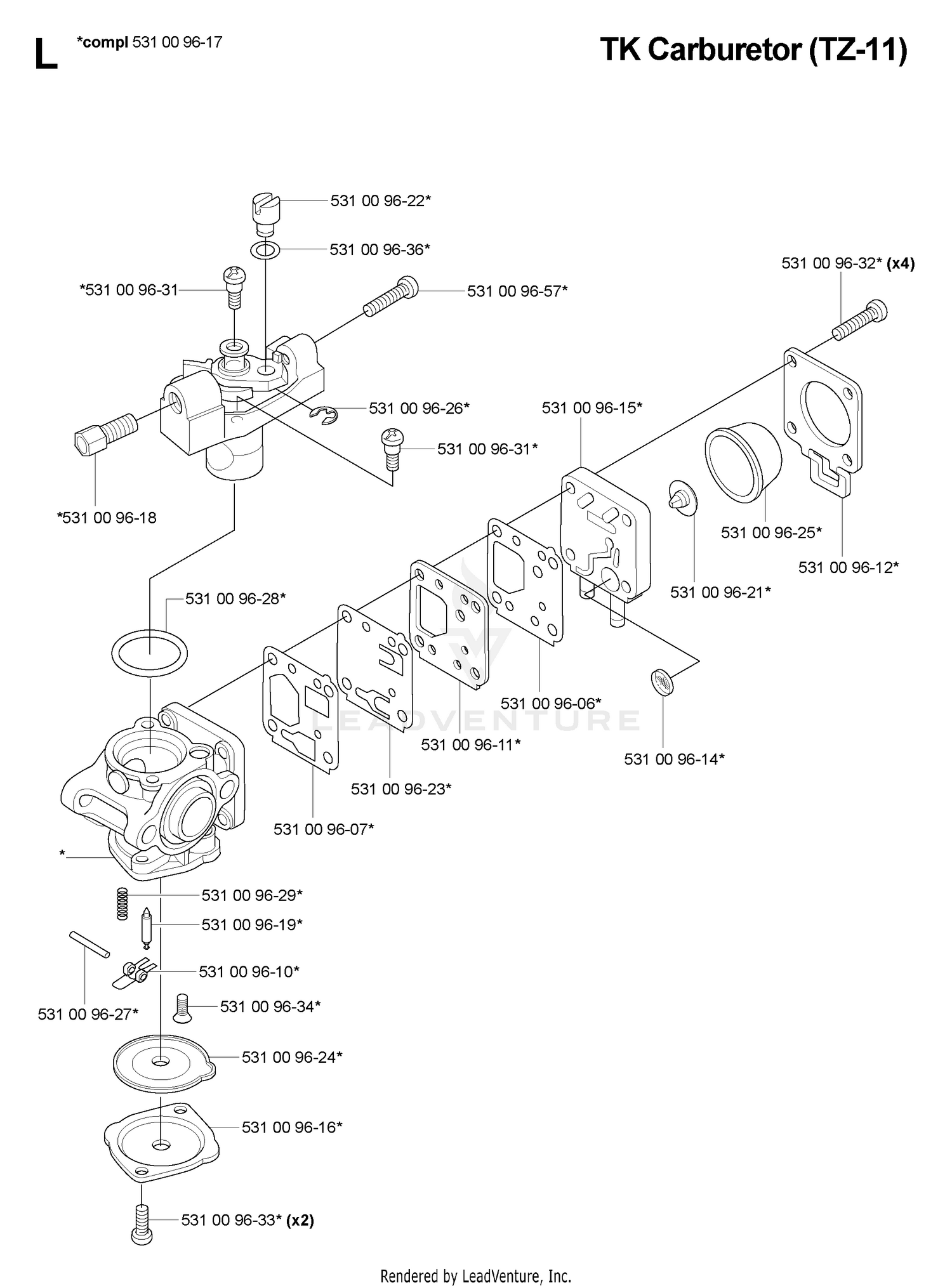

Carburetor Parts
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 531009606 | 531009606 | GASKET Price: $2.99 |
| 531009607 | 531009607 | GASKET Price: $2.99 |
| 531009610 | 531009610 | LEVER Price: $2.99 |
| 531009611 | 531009611 | PLATE Price: $4.99 |
| 531009612 | 531009612 | PLATE Price: $5.99 |
| 531009614 | 531009614 | FILTER Price: $1.99 |
| 531009615 | 531009615 | COVER Price: $22.99 |
| 531009616 | 531009616 | COVER Price: $5.99 |
| 531009617 | 577832201 | CARBURETOR ASSY This part replaces 531009617. Price: $129.99 |
| 531009618 | 531009618 | ADJUSTER-CABLE Price: $2.99 |
| 531009619 | 531009619 | VALVE-FLOAT Price: $8.99 |
| 531009621 | 531009621 | VALVE-CHECK Price: $4.99 |
| 531009622 | 531009622 | ARM,TJ027D-AC50 Price: $6.99 |
| 531009623 | 531009623 | DIAPHRAGM Price: $5.99 |
| 531009624 | 531009624 | DIAPHRAGM Price: $54.99 |
| 531009625 | 531009625 | PUMP-PRIMING Price: $8.99 |
| 531009626 | 531009626 | RING-SNAP Price: $1.47 |
| 531009627 | 531009627 | PIN Price: $1.99 |
| 531009628 | 531009628 | O-RING Price: $1.99 |
| 531009629 | 531009629 | SPRING Price: $1.99 |
| 531009631 | 531009631 | SCREW Price: $1.47 |
| 531009632 | 531009632 | SCREW Price: $2.99 |
| 531009633 | 531009633 | SCREW Price: $1.47 |
| 531009634 | 531009634 | SCREW Price: $1.99 |
| 531009636 | 531009636 | WASHER Price: $1.47 |
