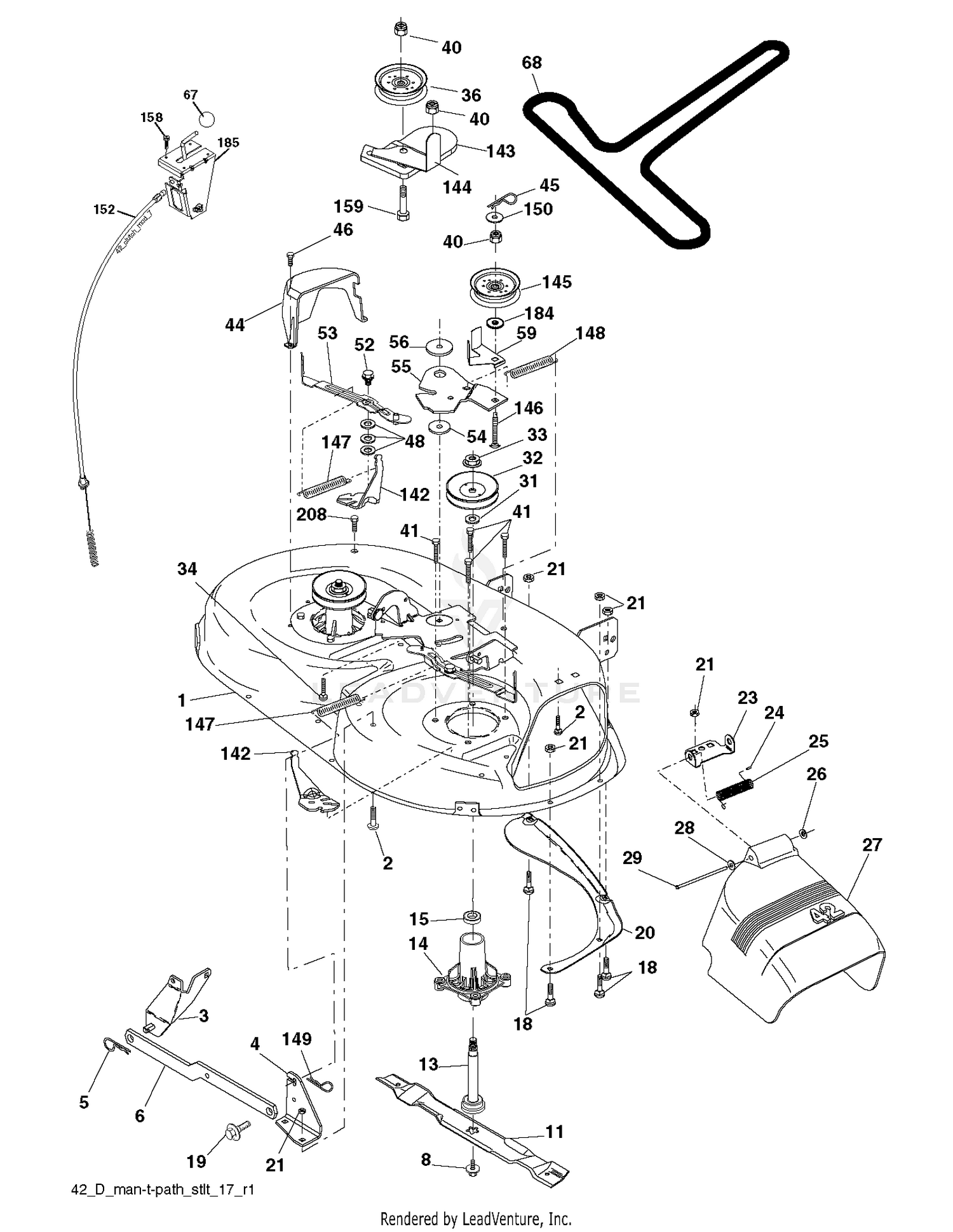

| Ref | Part Number | Description |
|---|
| 1 |
33-3380 |
PLUG ASM Price: $48.73 |
| 1 |
532176027 |
DECK.WELDMENT.42".BLACK This part replaces 532165892. Price: $279.99 |
| 2 |
237-118 |
O-RING Price: $1.73 |
| 2 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 3 |
33-3390 |
DISCONTINUED Price: Call Us |
| 3 |
532138017 |
BRKT ASM SWAY BAR Price: $7.99 |
| 4 |
532165460 |
BRACKET SWAY BAR 42" DECK Price: $6.99 |
| 4 |
56-6800 |
DISCONTINUED This part replaces 33-3400. Price: Call Us |
| 5 |
33-3410 |
SPRING Price: $8.01 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
532178024 |
BAR SWAY DECK Price: $5.99 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 10 |
33-3440 |
PLATE-BALANCING Price: $116.20 |
| 11 |
36-6230 |
DISCONTINUED Price: Call Us |
| 12 |
36-6240 |
DISCONTINUED Price: Call Us |
| 13 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192872. Price: $32.99 |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 14 |
56-6800 |
DISCONTINUED This part replaces 33-3590. Price: Call Us |
| 15 |
33-3480 |
DISCONTINUED Price: Call Us |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
56-6800 |
DISCONTINUED This part replaces 33-3490. Price: Call Us |
| 18 |
872140505 |
BOLT Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $2.99 |
| 20 |
532159770 |
BAFFLE.VORTEX Price: $12.99 |
| 21 |
56-6800 |
DISCONTINUED This part replaces 33-3520. Price: Call Us |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
33-3530 |
DISCONTINUED Price: Call Us |
| 23 |
532177563 |
BRKT, DEFL. MOWER Price: $2.99 |
| 24 |
105-8145 |
DRIVE This part replaces 36-6270. Price: $258.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
36-6260 |
DRIVE-VALVE Price: $244.63 |
| 25 |
532123713 |
SPRING TORSION Price: $3.99 |
| 26 |
33-3570 |
PIN Price: $6.13 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
237-115 |
DISCONTINUED Price: Call Us |
| 27 |
532130968 |
SHIELD.DEFLECTOR.MOWER.42".BLK This part replaces 532171859. Price: $22.99 |
| 28 |
33-5080 |
DISCONTINUED Price: Call Us |
| 28 |
819111016 |
WASHER Price: $5.99 |
| 29 |
33-3580 |
PLUG ASM Price: $19.04 |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 36 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 40 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $1.99 |
| 45 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 48 |
532133944 |
WASHER Price: $2.99 |
| 52 |
532139888 |
BOLT.SHOULDER.5/16-18 Price: $2.99 |
| 53 |
532184907 |
ARM BRAKE ASSY Price: $11.99 |
| 54 |
532178515 |
WASHER Price: $2.99 |
| 55 |
532155046 |
ARM IDLER 42" MOWER LT/YT Price: $7.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $2.99 |
| 59 |
532141043 |
GUARD, BELT Price: $3.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $2.99 |
| 68 |
532144959 |
BELT V SECONDARY Price: $32.99 |
| 142 |
532195784 |
ANCHOR SPRING BRAKE MOWER Price: $4.99 |
| 143 |
532157109 |
BRACKET, ARM IDLER Price: $3.99 |
| 144 |
532173441 |
KEEPER BELT 42" CLUTCH This part replaces 532158634. Price: $5.99 |
| 145 |
532173437 |
PULLEY.IDLER.FLAT.PLATED This part replaces 532165888. Price: $14.99 |
| 146 |
532171977 |
BOLT, CARRIAGE IDLER BLACK Price: $3.99 |
| 147 |
532179748 |
SPRING This part replaces 532131335. Price: $1.99 |
| 148 |
532169022 |
IDLER RETURN SPRING Price: $2.99 |
| 149 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 150 |
531003379 |
WASHER This part replaces 819091210. Price: $2.99 |
| 152 |
532175067 |
KIT.CLUTCH.CABLE This part replaces 532169676. Price: $29.99 |
| 158 |
539990071 |
HCS 1/4-20. This part replaces 817720408. Price: $1.99 |
| 159 |
872140614 |
BOLT Price: $2.99 |
| 184 |
734117201 |
WASHER This part replaces 819131410. Price: $1.99 |
| 185 |
532188234 |
HEAD ASM. CABLE CLUTCH Price: $34.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
